Medic ROM Pack Updates For Pcm Reprogramming (TSB-01-00-001)

MEDIC ROM PACK UPDATES FOR PCM REPROGRAMMING

TECHNICAL SERVICE BULLETIN

MEDIC ROM PACK UPDATES FOR PCM REPROGRAMMING

Model(s): All Mitsubishi Models Capable of ECU/PCM Reprogramming

Group: 00 General

Bulletin No.: TSB-01-00-001

Date: January, 2001

AFFECTED VEHICLES

All models capable of ECU/PCM reprogramming (Except 1995-99 Eclipse models with 2.0L non-turbo engine. Use a separate reprogramming kit, MIT-992000-A, to reprogram these models.)

PURPOSE

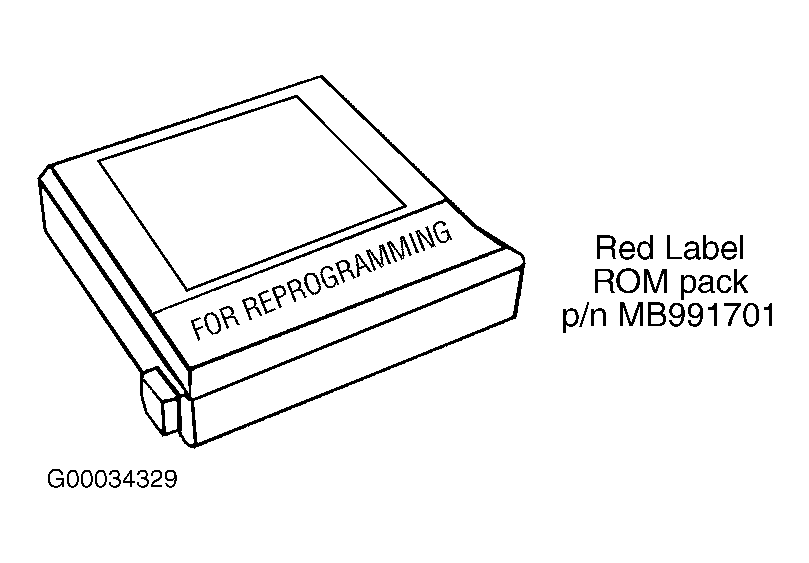

Red label ROM pack updates can now be accomplished using MEDIC. Follow these procedure for updating Red label ROM packs using MEDIC. The red label ROM packs are used for reprogramming most ECUs and PCM. See Fig 1

Dealers with MEDIC should have three red label ROM packs. If you are missing a red label ROM pack, call OTC/SPX Corp. at (888) 727-6672, then select option #2 for tools. Replacement ROM packs are available for approximately $300.00 each. You can order a blank red label ROM pack (p/n MB991701), or a pre-programmed ROM pack (RN99051, etc.).

PROCEDURE

Identify the appropriate database you wish to program into the ROM pack.

Vehicle	Technical Service Bulletin	Database # in TSB	Database # in MEDIC	Password
1999 Galant 2.4L	TSB-99-13-005	RN99051	RN99051	0345
1998-99 Mirage	TSB-99-13-007	RN99081	RN99081	4217
1999 Galant	TSB-98-13-013REV	RN98101	RN99051	0345
1999 Eclipse and Eclipse Spyder	TSB-98-13-013REV	RN98102	RN98102	4318
1999 Montero Sport 3.0L	SR-99-001	RN99031	RN99071	3256
1999 Montero Sport 3.5L	SR-99-001	RN99032	RN99072	6921

1. Install the red label ROM pack you want to update into the MUT-II.

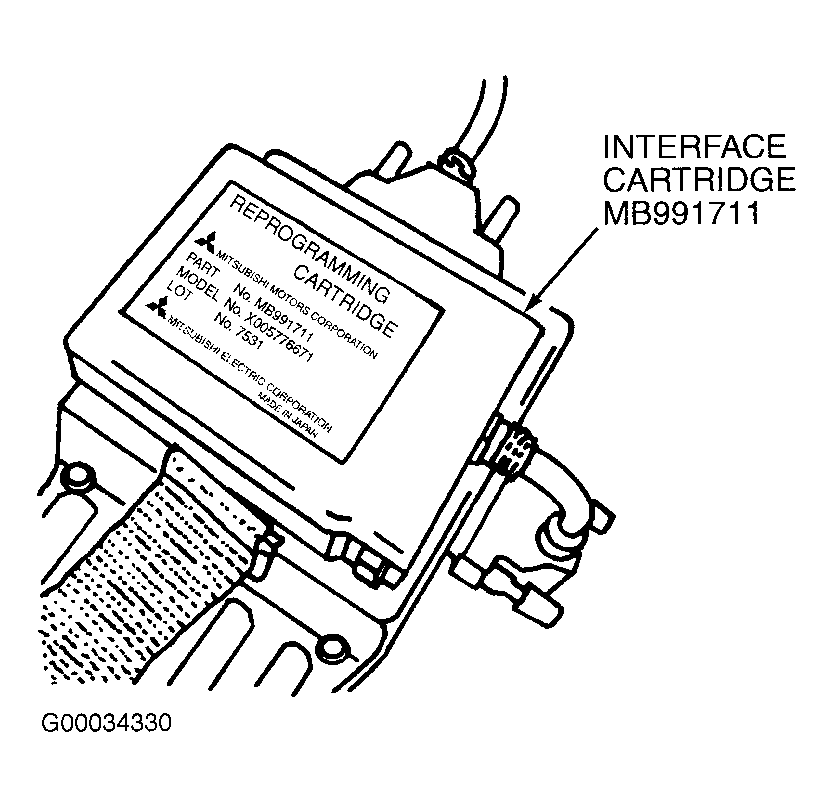

2. Install the MMC ECU Reprogramming. Interface Cartridge (p/n MB991711) on the MUT-II as shown. See Fig 2 .

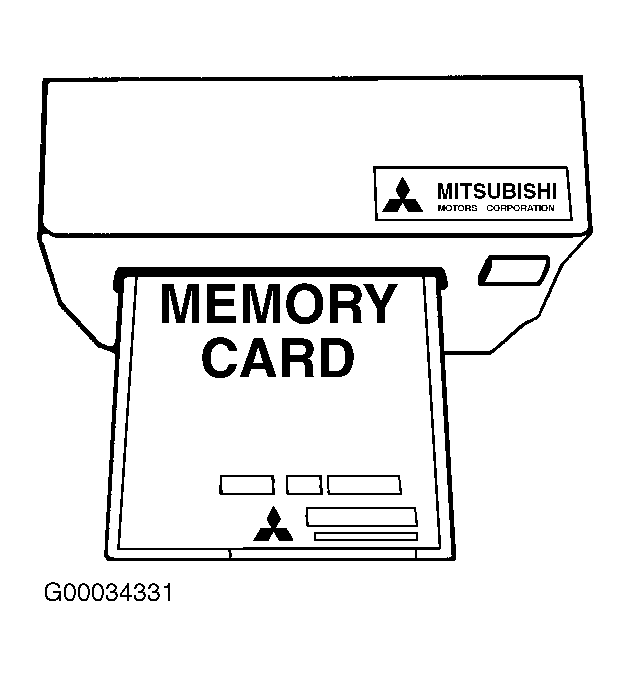

3. Install a "256 KBYTE" memory card at the bottom of the MUT-II.
   NOTE: If your memory card is marked "128 KBYTE", locate the 256 KBYTE memory card (p/n MB991717) supplied with the Interface Cartridge. You can also use MB991500, which has 256 KBYTE memory. See Fig 3 .
4. Make the following electrical connections:

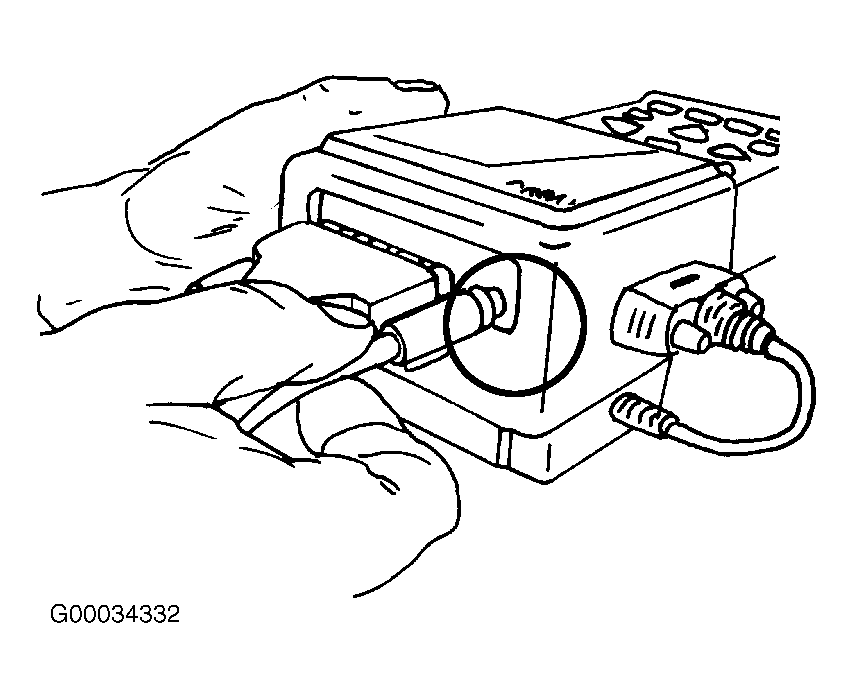

   1. Connect the serial data cable (with the flat side facing down) to the MUT-II. See Fig 4 .

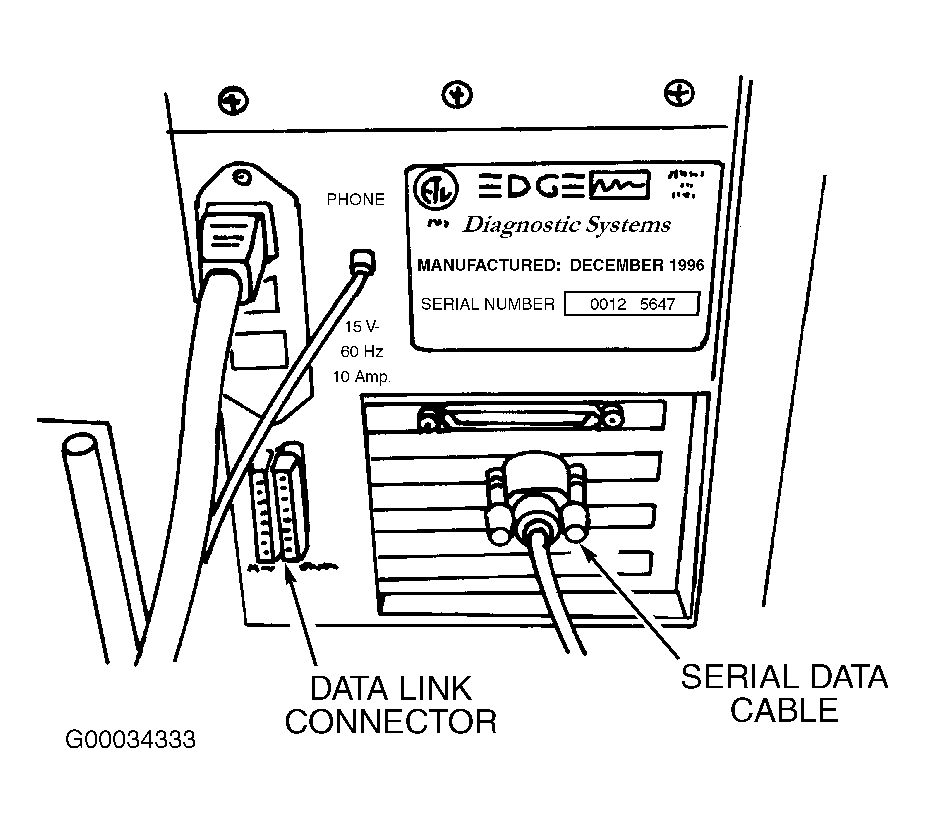

   2. Connect the serial data cable to the MEDIC. See Fig 5 .
   3. Connect the MUT-II 16-pin data link connector to the MEDIC cabinet. The MUT-II should power on. (On MUT-II+ units, turn the switch on.)

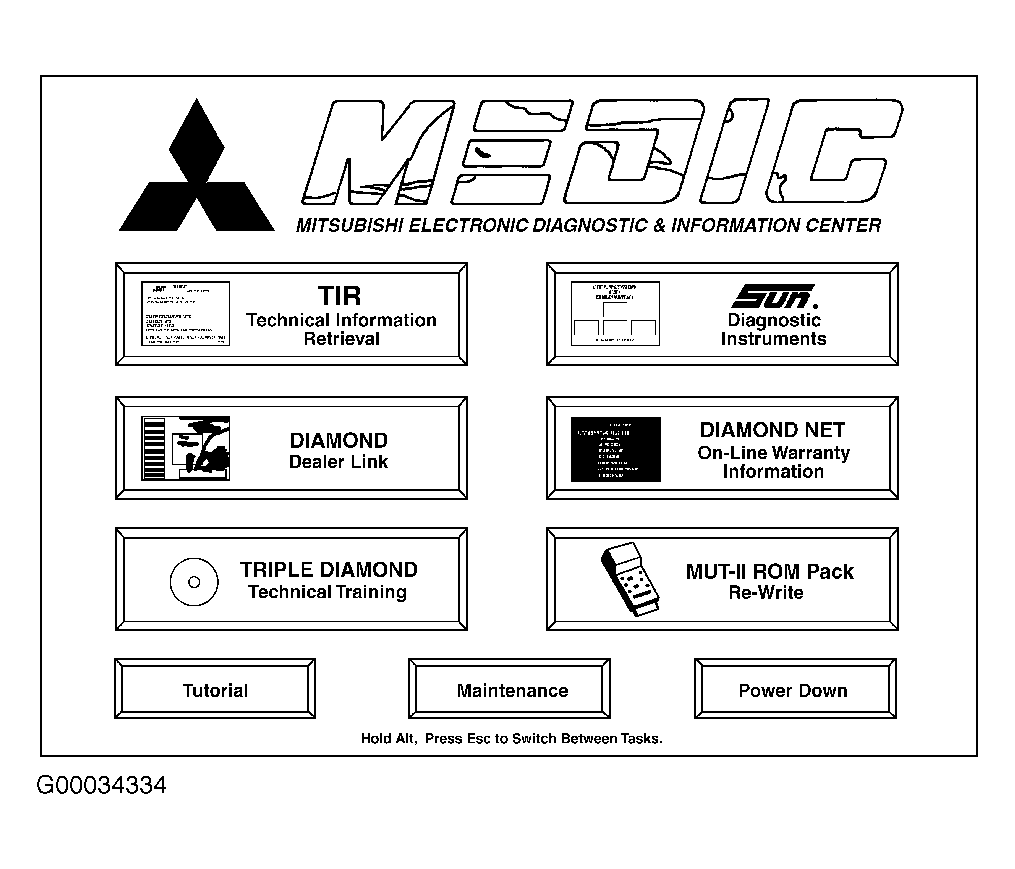

5. From the MEDIC main menu, select MUT-II ROM Pack Re- Write. See Fig 6 .

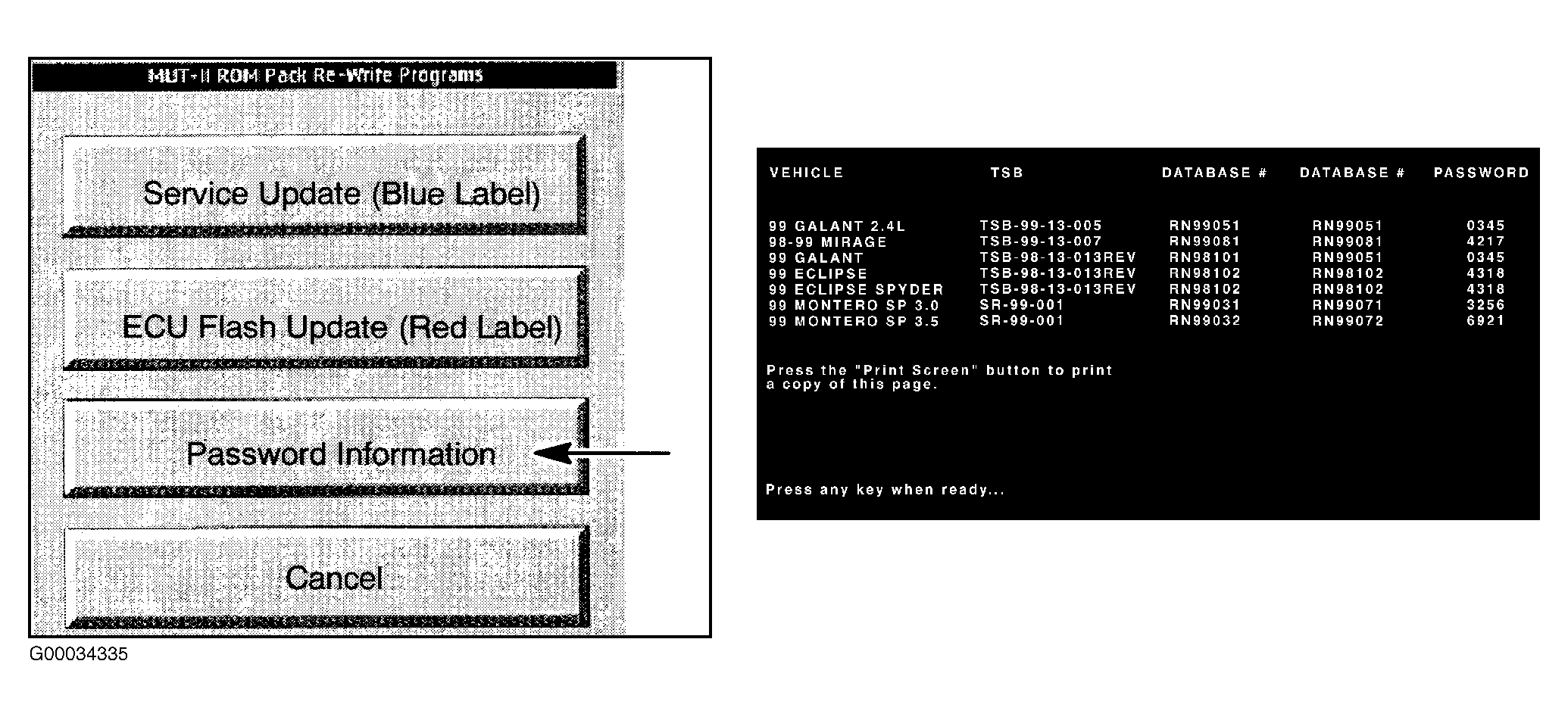

6. Select Password Information. The following information will display: See Fig 7 .
   • Note the appropriate "DATABASE # IN MEDIC" (RN number) that you wish to program. (The database list is subject to change as new databases become available.)
   • Press the "Print Screen" button to print a copy of this information.

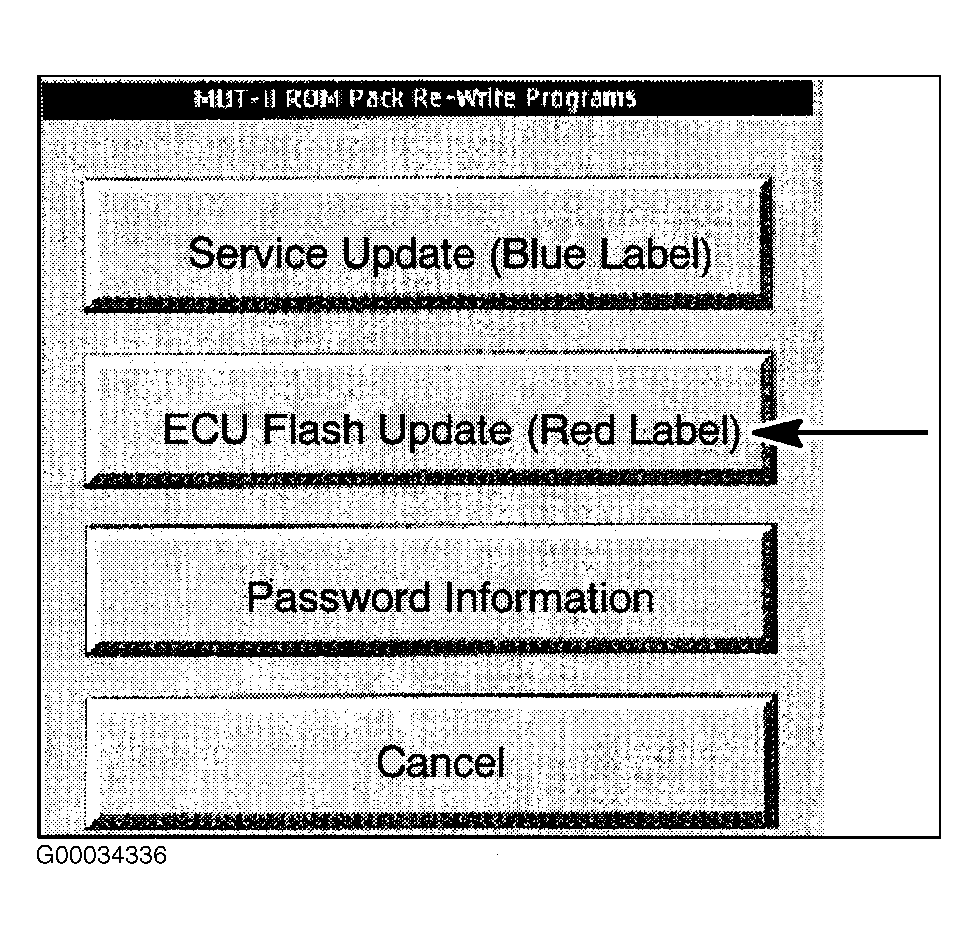

7. 1. Select ECU Flash Update (Red Label). See Fig 8 .
   2. MEDIC A systems only: Double-click the 8M icon.

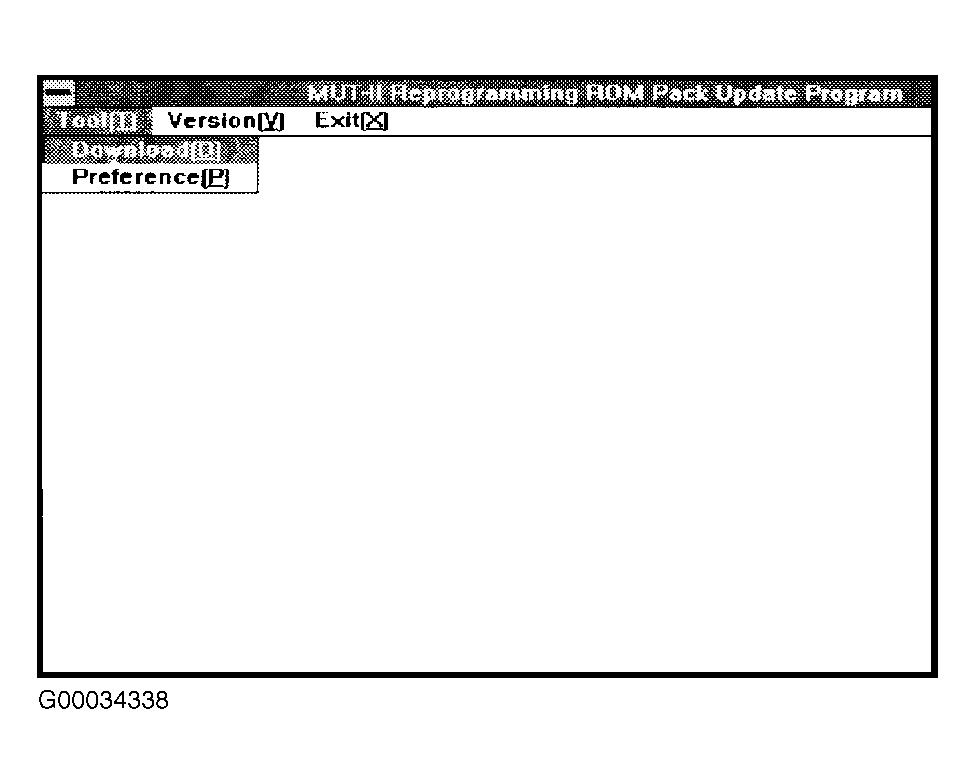

8. Select Tool (T) from the top menu, and then select Download. See Fig 10 .
9. Select the file to be downloaded:

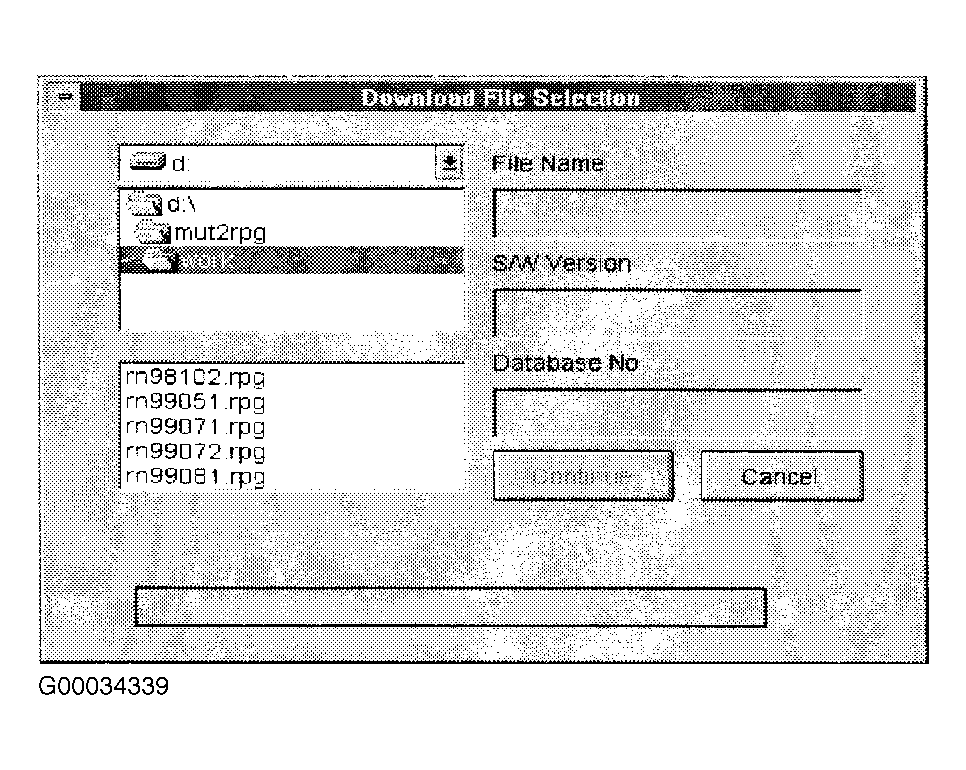

   1. Select d:\mut2rpg\work (double-click). See Fig 11 .
   2. Select (double-click) the appropriate database ("rn" number) noted instep 4.
   3. Press Continue.

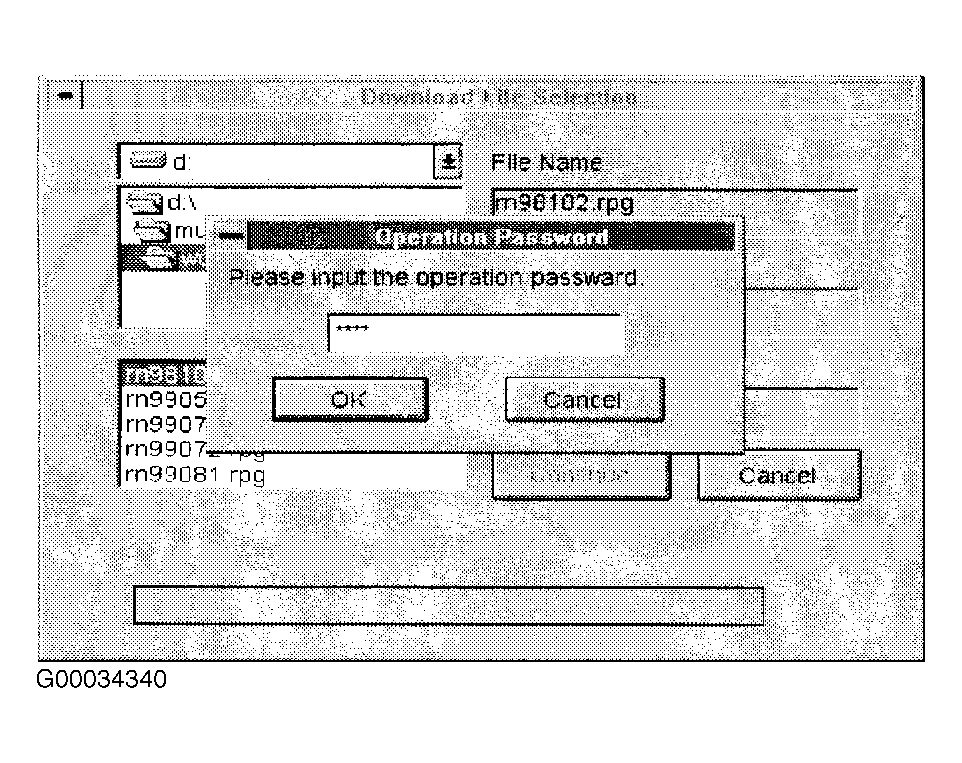

10. The password screen will display. Enter the appropriate password for the update you selected.
    • As you type, the password will be encrypted (actual text will not display). See Fig 12 .

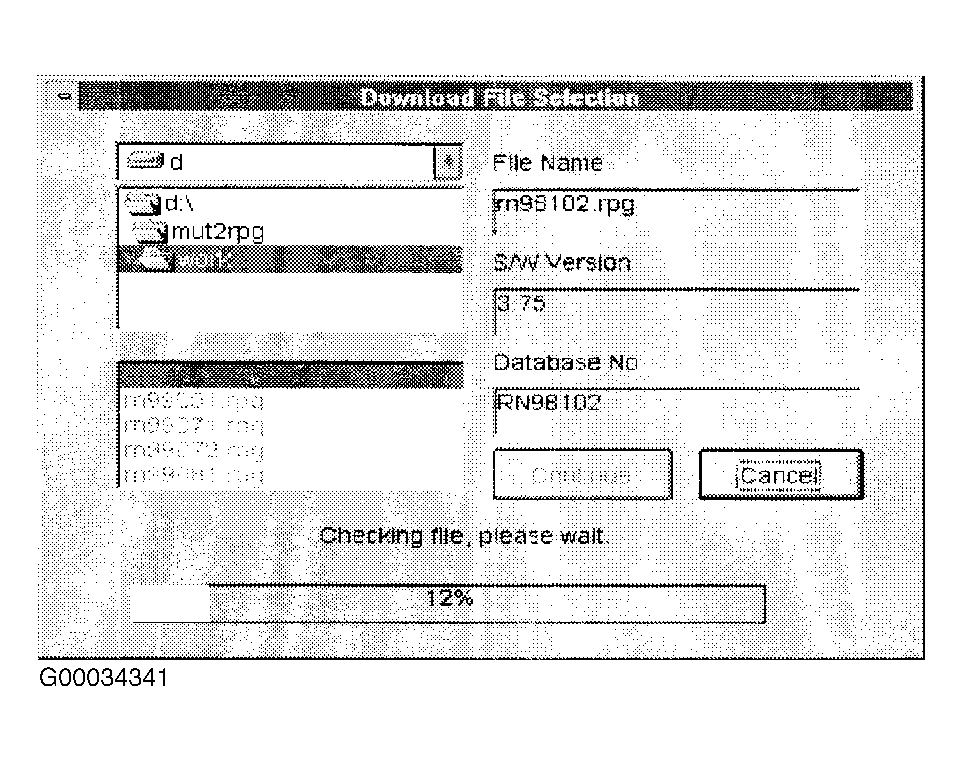

11. When this screen displays, MEDIC is verifying the content of the update files to download. See Fig 13 .

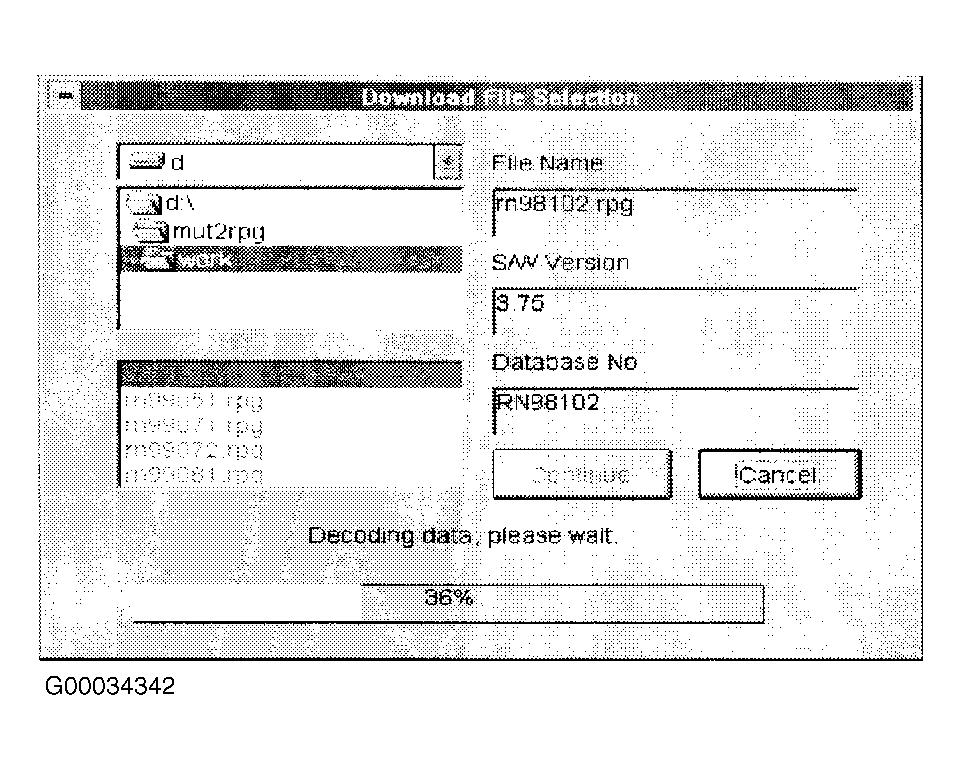

12. When this screen displays, MEDIC is decoding the update information for the download. See Fig 14 .

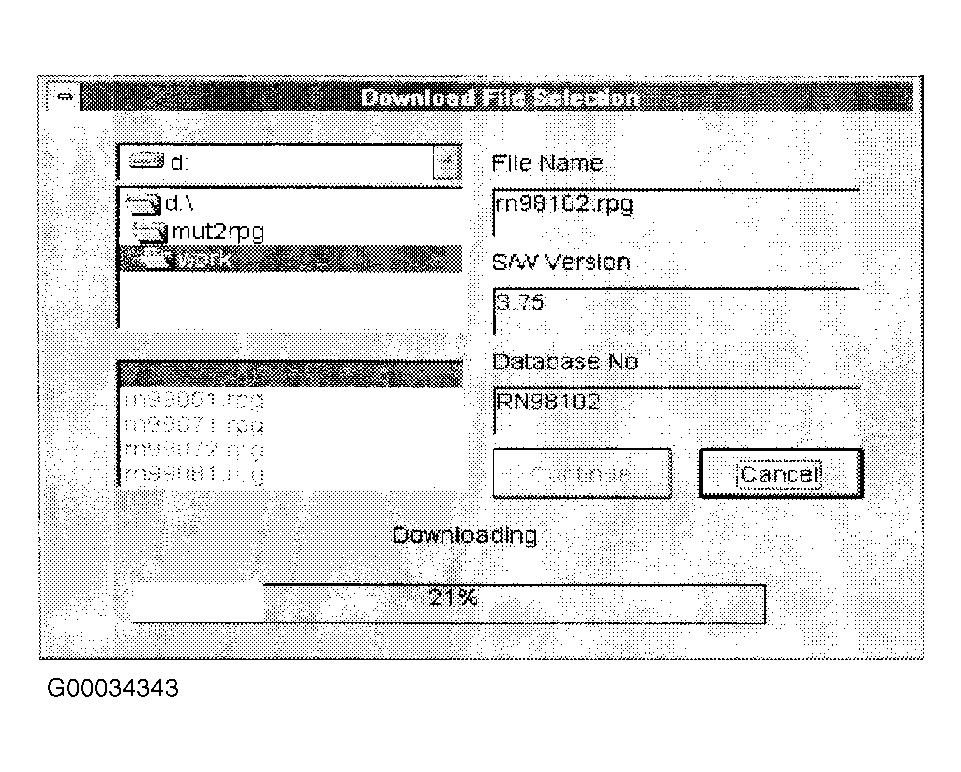

13. During the update process, this screen will display. The % completed display will remain on screen while the update is being downloaded, to indicate its progress. See Fig 15 .
    WARNING: DO NOT MAKE ANY SELECTIONS, TASK-SWITCH, PRESS ANY KEYS OR DISCONNECT ANY ELECTRICAL CONNECTIONS DURING THE UPDATE PROCESS. IF YOU DO, DISCONNECT THE MUT-II CONNECTIONS, THEN THE MEDIC MUST BE COMPLETELY SHUT DOWN AND THEN RESTARTED.
    • It Will take approximately 20 minutes for the ROM pack to update, depending upon the update you selected.

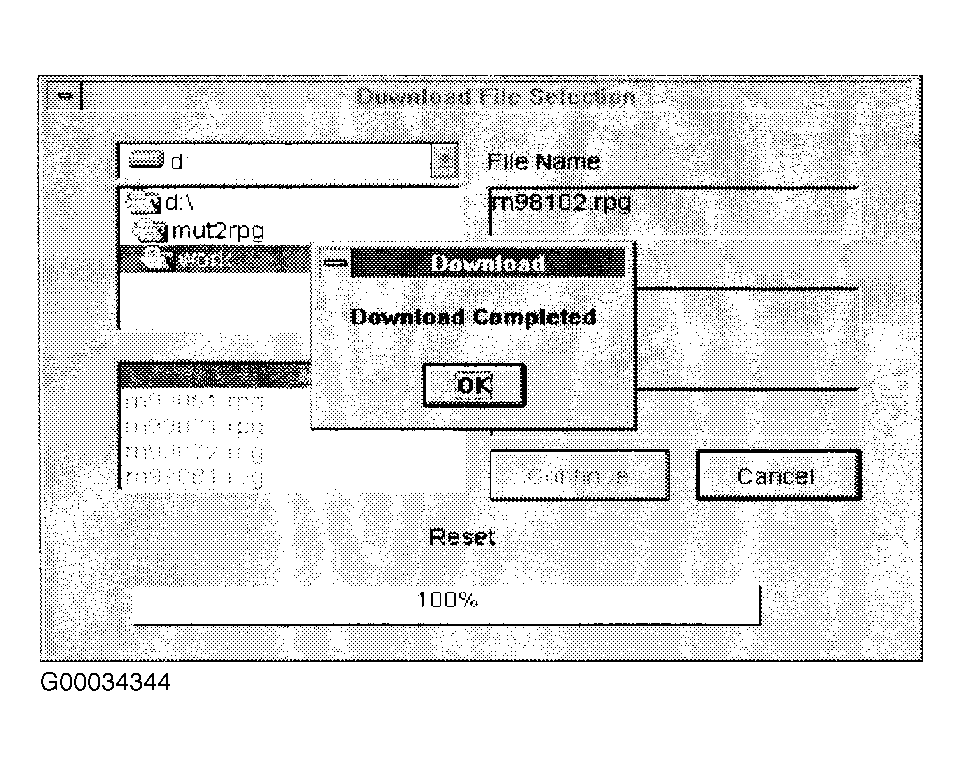

14. After the update is complete, this screen will display. See Fig 16 .
15. The MUT-II screen will display the new ROM pack level, then return to the Main Menu.

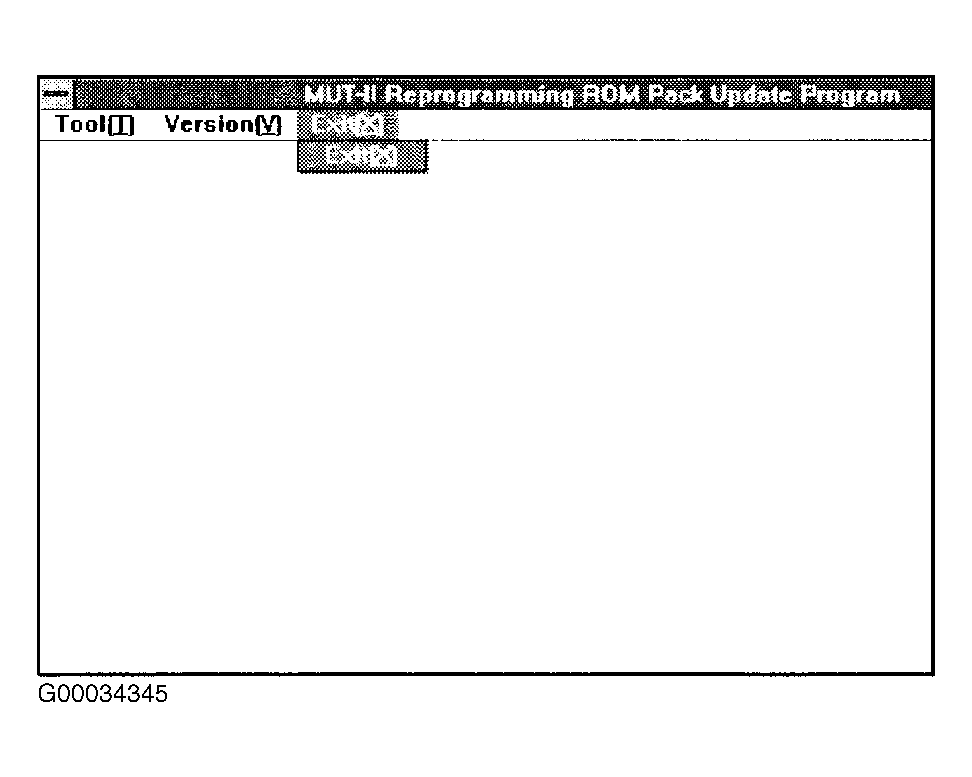

    • To return to the main MEDIC screen, select Exit. See Fig 17 .

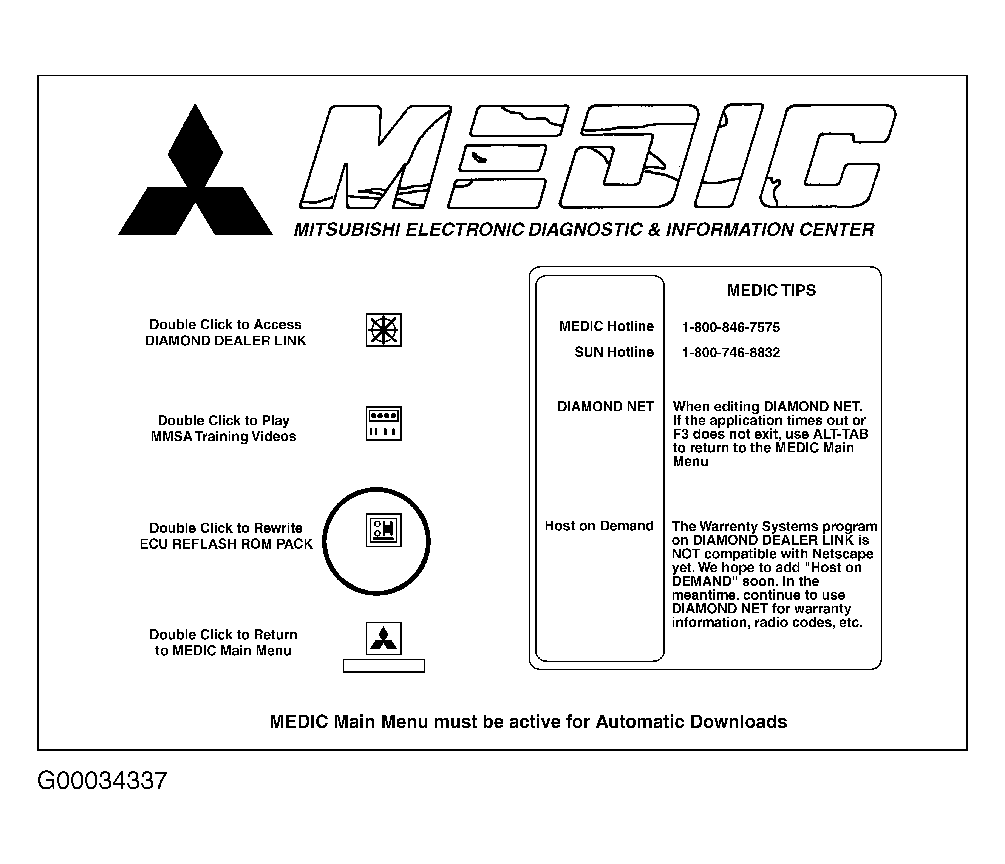

    • On MEDIC A systems only: Select Exit and double-click the triple diamond icon to return to the MEDIC main menu.

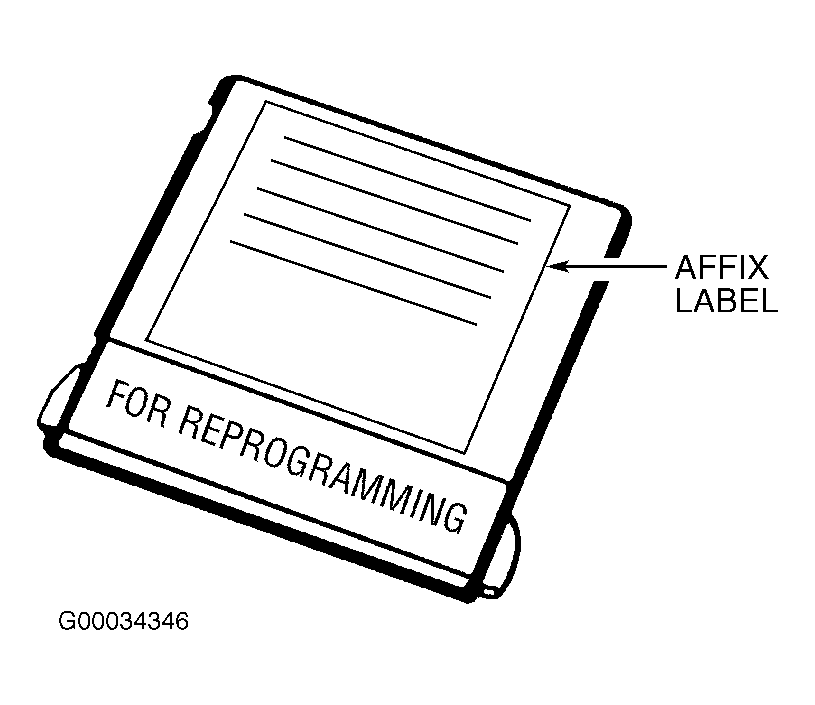

16. A small supply of ROM pack labels have been provided with this bulletin. Write the new database number on a label, then affix it to the ROM pack as shown. See Fig 18 .
