FOGLIGHT Switch Test: 3000GT

Remove foglight switch from instrument panel. Disconnect switch connector. Using an ohmmeter, check switch continuity. With switch in OFF position, continuity should exist between terminals No. 3 and 4. With switch in ON position, continuity should exist between terminals No. 1 and 5. See Figure. If continuity is not as specified, replace switch.

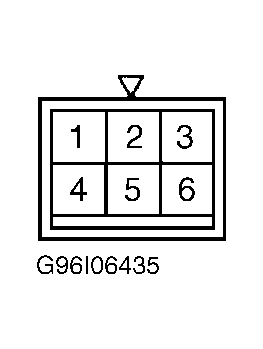

Fig 1: Identifying Foglight Switch Connector Terminals (Eclipse, Galant & Mirage)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Identifying Foglight Switch Connector Terminals (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
