Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

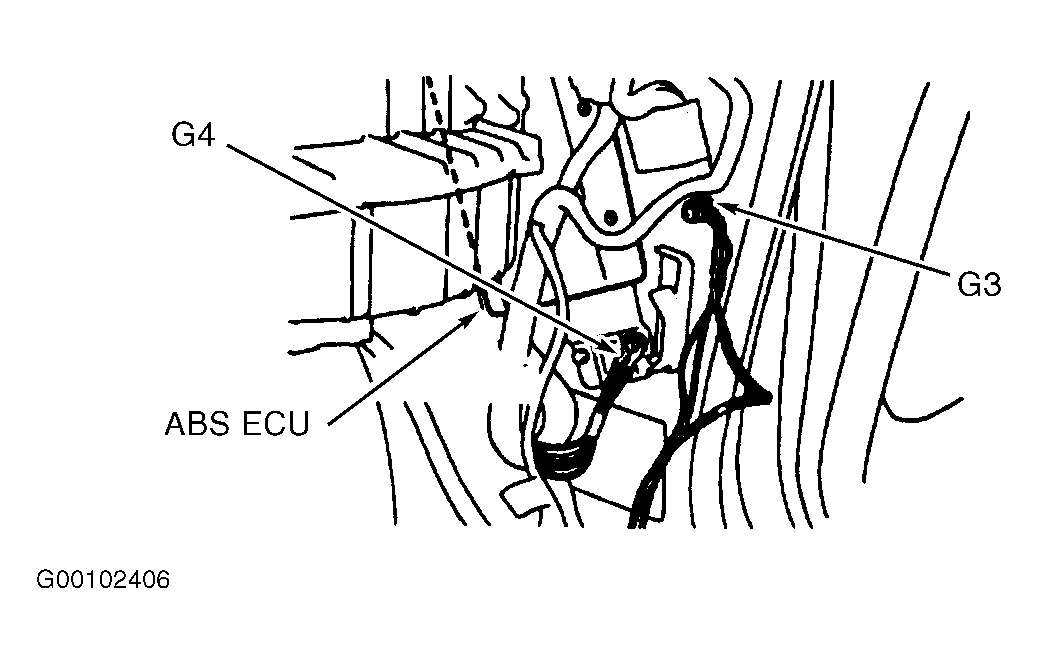

| ABS ECU | Under right side of dash. See Figure . |
| A/C Control Panel & ECU Assembly (Auto A/C) | Behind center of dash. |

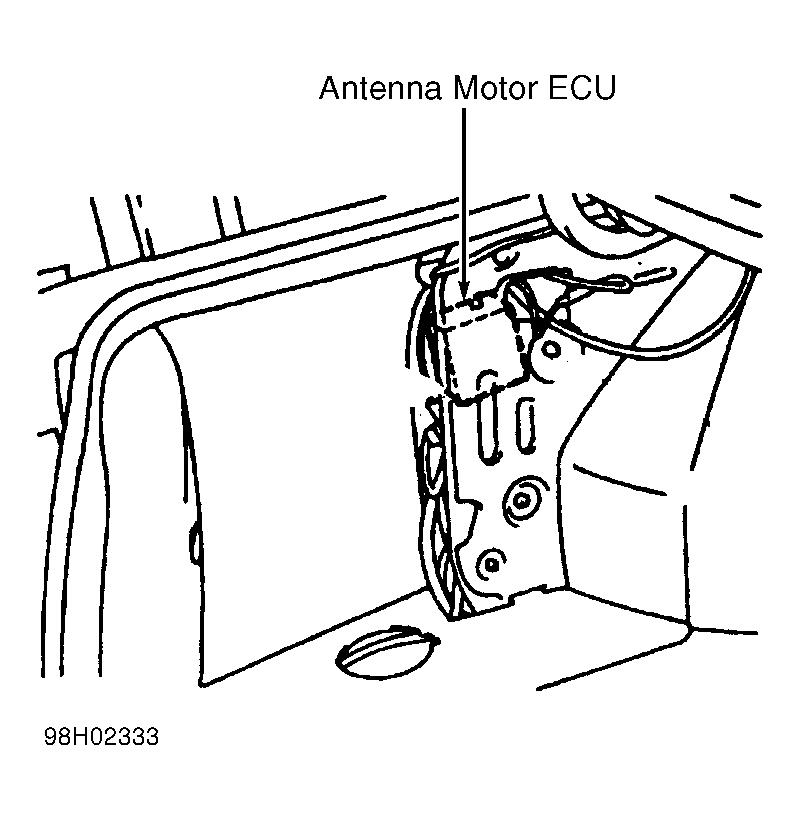

| Antenna Motor ECU | On left side of luggage compartment. See Figure . |

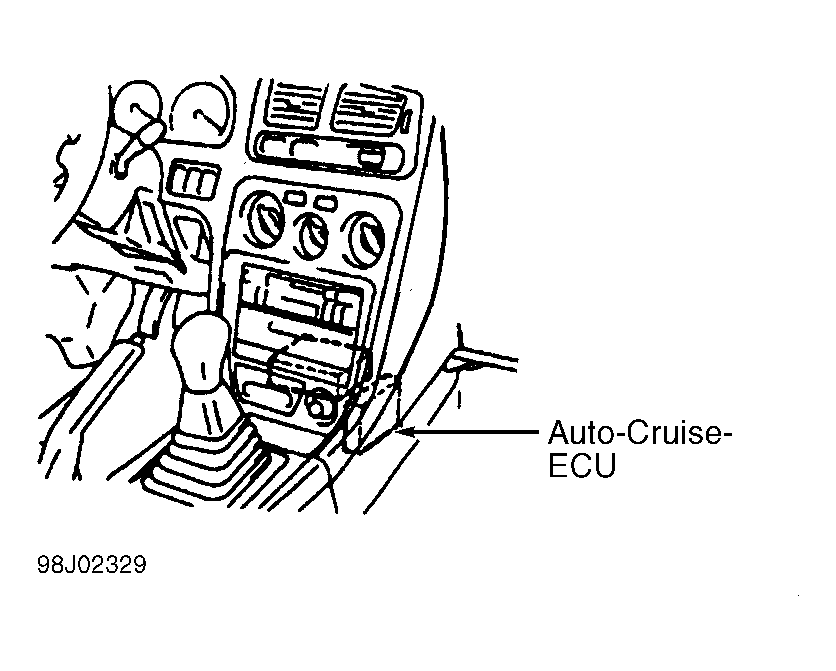

| Auto-Cruise ECU | Behind center console. See Figure . |
| Automatic Compressor ECU (Manual A/C) | Under right side of dash, on front evaporator case. |

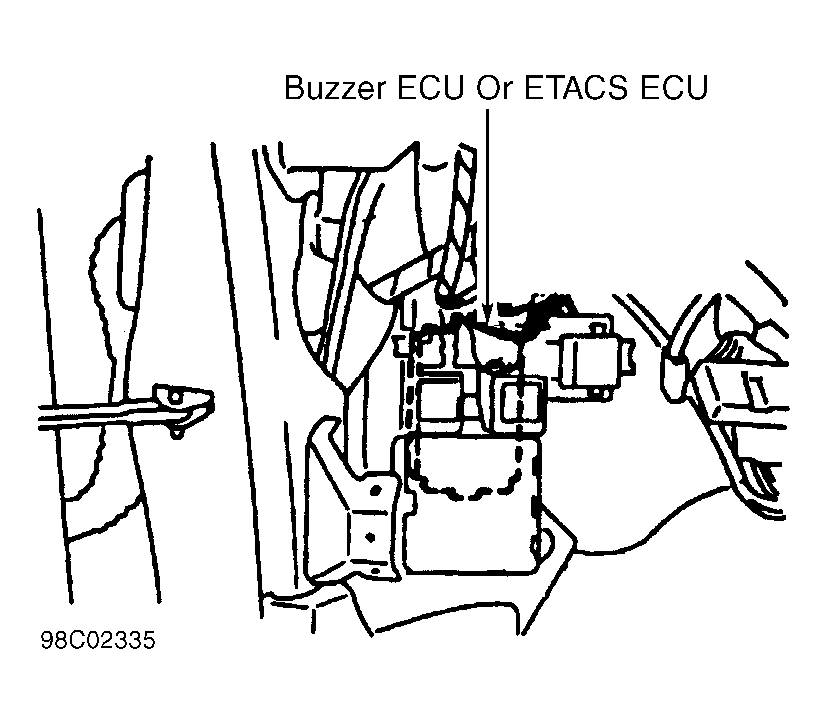

| Buzzer ECU | Behind left side of dash. See Figure . |
| Door Lock ECU | In power window switch assembly, in driver's door. |

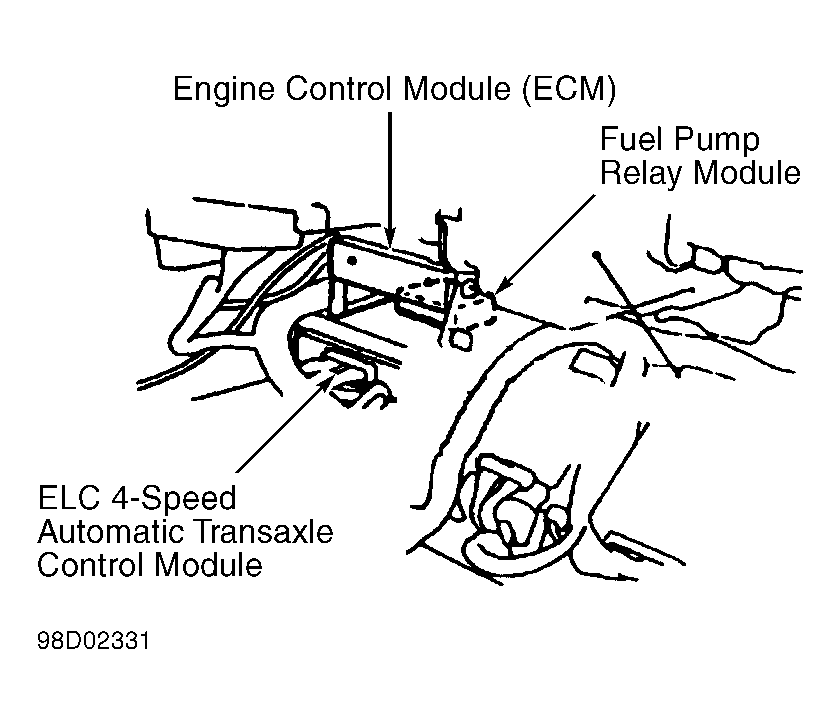

| ELC 4-Speed Automatic Transaxle Control Module | Behind center console. See Figure . |
| Engine Control Module (ECM) | Behind center console. See Figure . |
| ETACS ECU | Behind left side of dash. See Figure . |
| Fuel Pump Relay Module | Behind center console. See Figure . |
| Power Window ECU | In power window switch assembly, in driver's door. |
| Receiver | Under center of rear shelf. |
| SRS ECU | Inside floor console. See Figure . |
| Sun Roof ECU | Center of windshield header. |
