Circuit Protection Devices

CIRCUIT PROTECTION DEVICES

Component Component Location

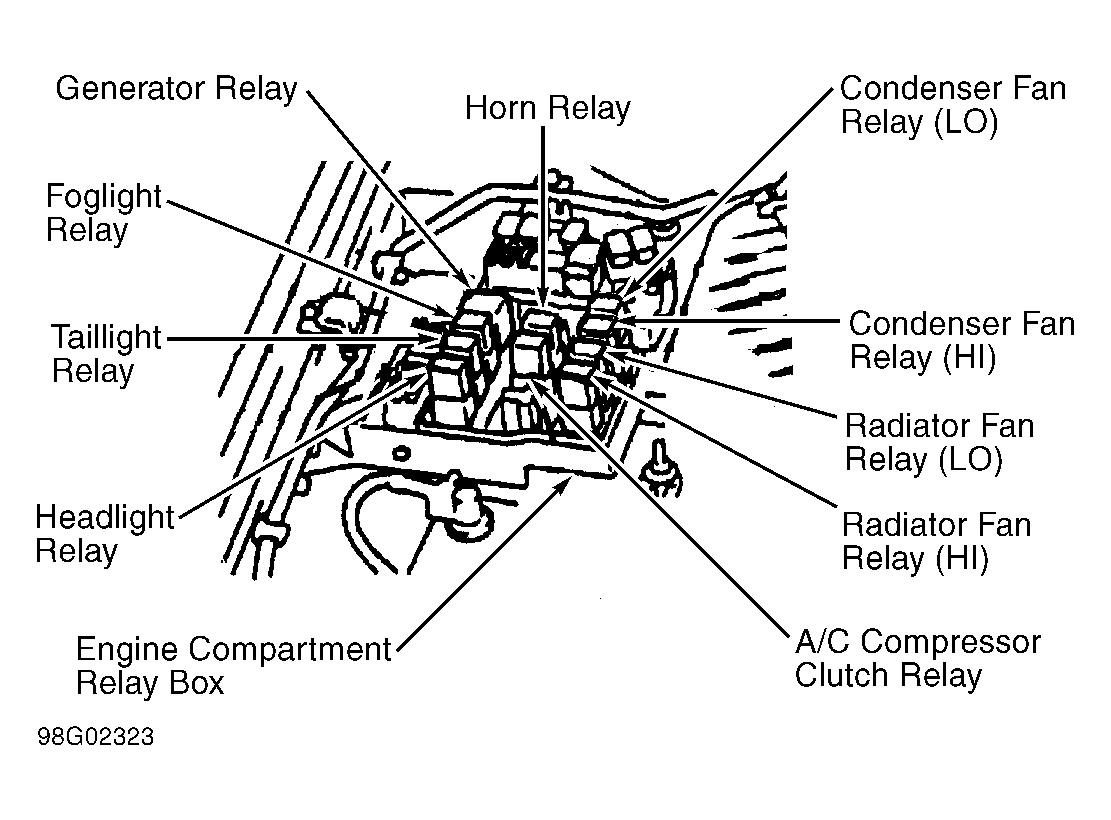

Engine Compartment Relay Box On right inner fender panel. See Figure .

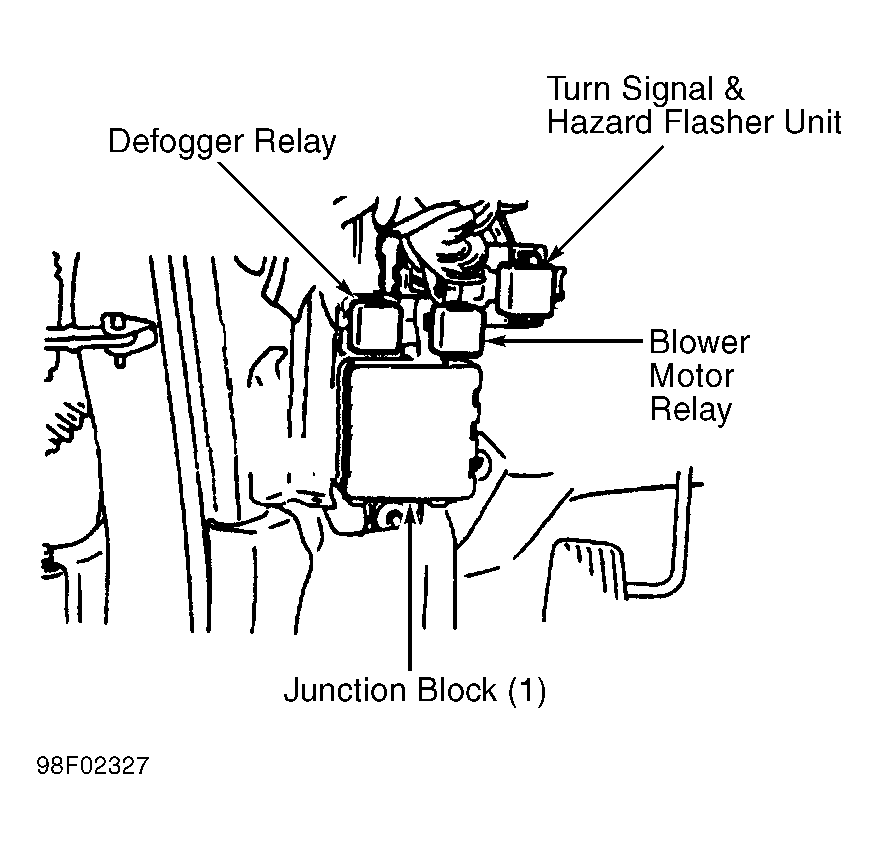

Junction Block (1) At left side kick panel. See Figure .
Junction Block (2) At left side kick panel.
