Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

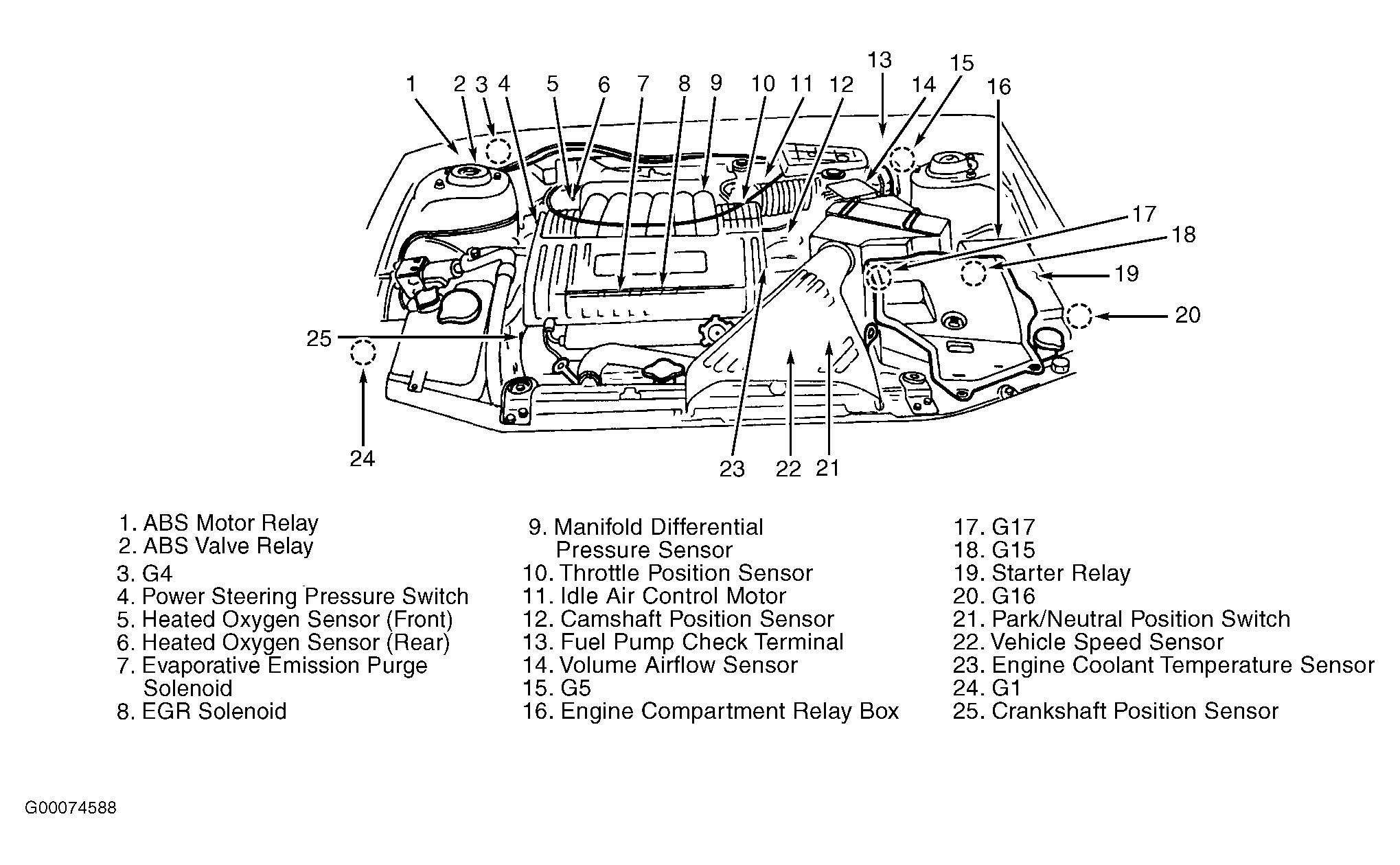

Fig 1: Engine Compartment

G00074588

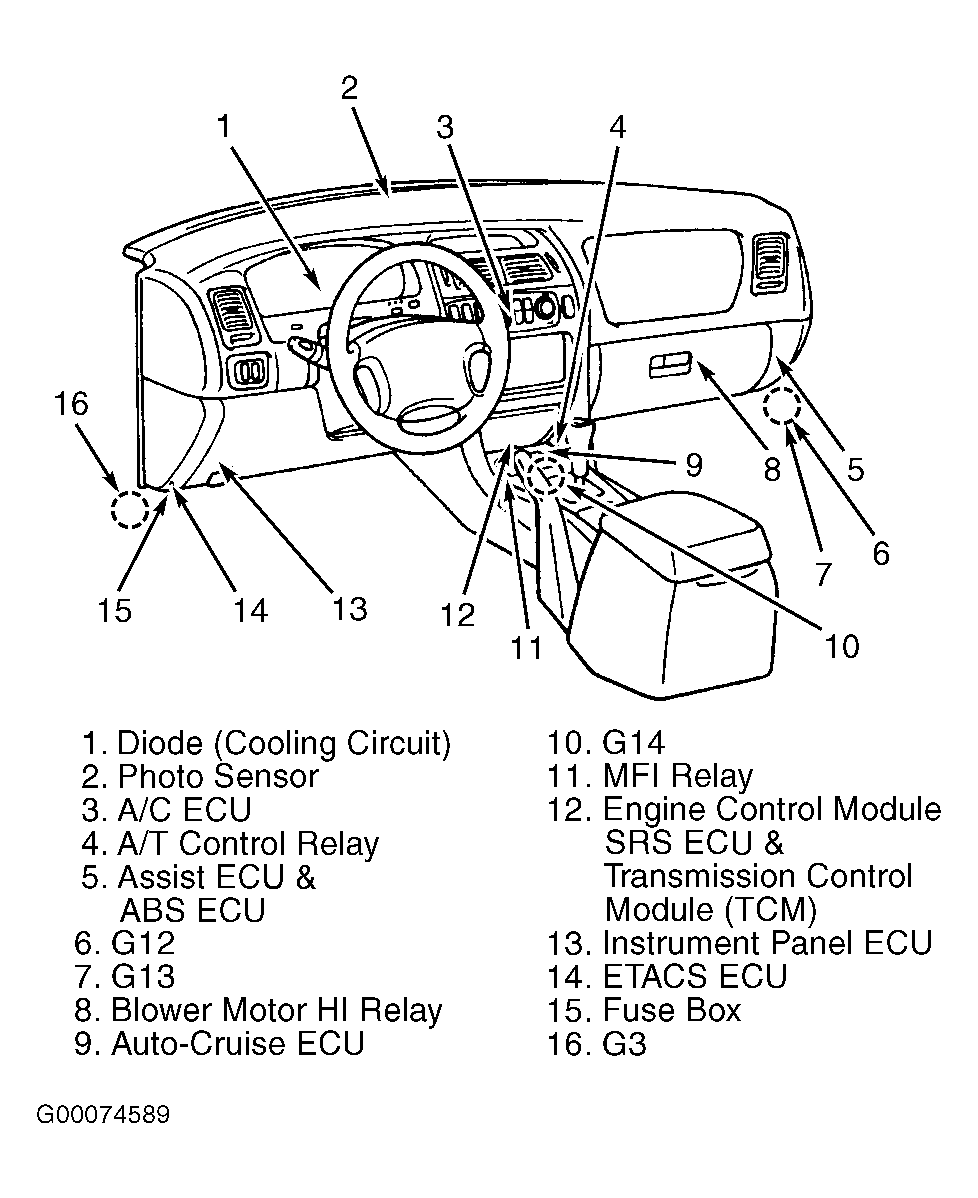

Fig 2: Dash

G00074589

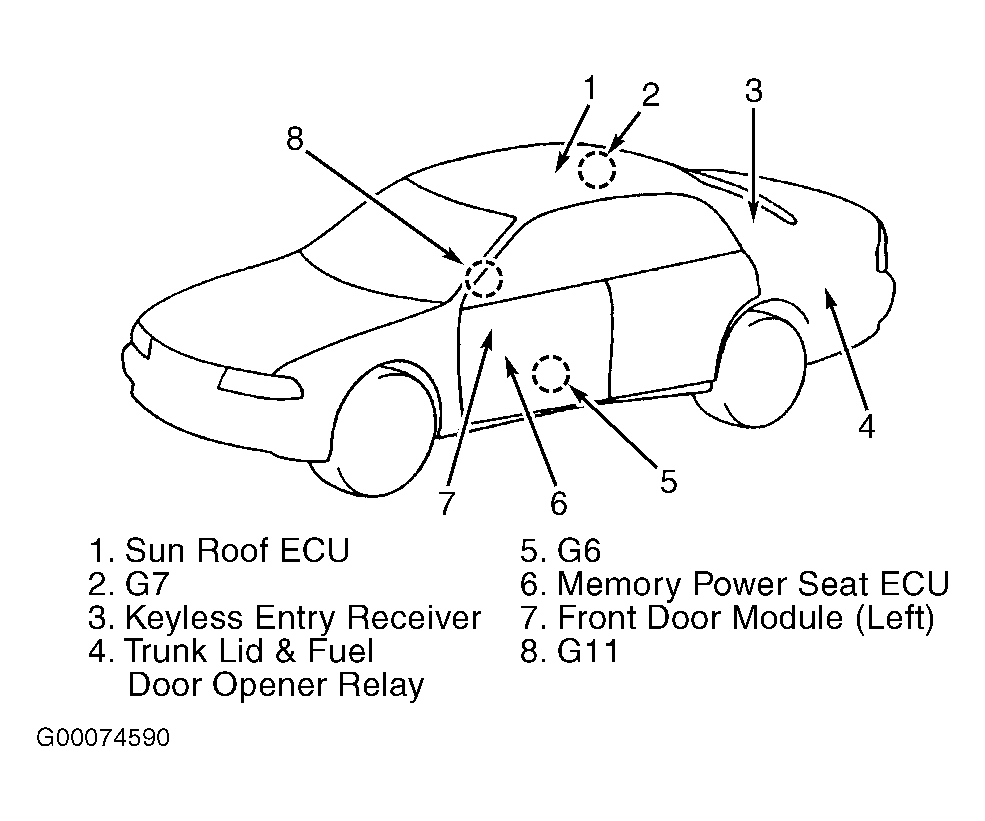

Fig 3: Left Side Of Vehicle

G00074590
