Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

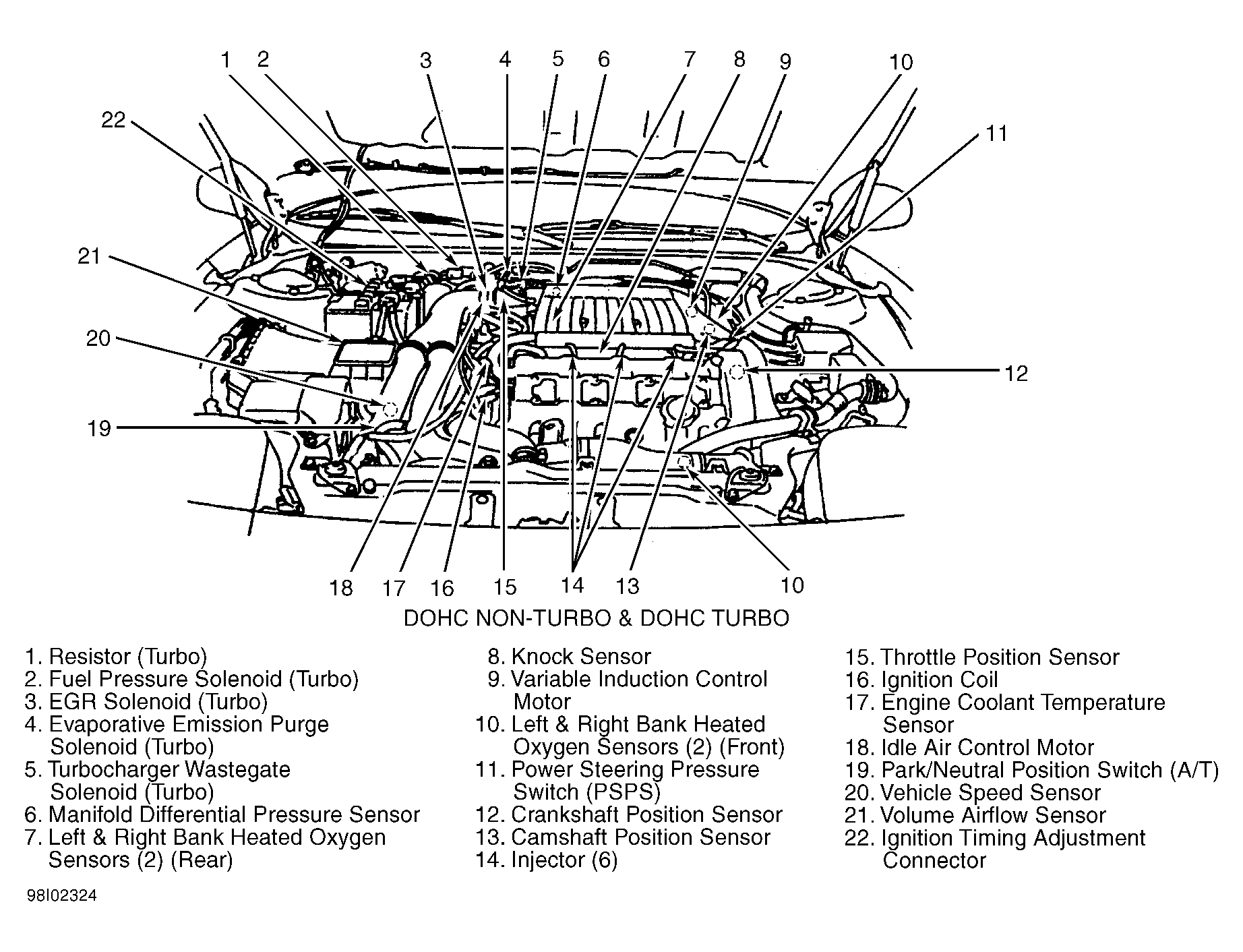

Fig 1: Engine Compartment (DOHC Non-Turbo & DOHC Turbo)
G98I02324

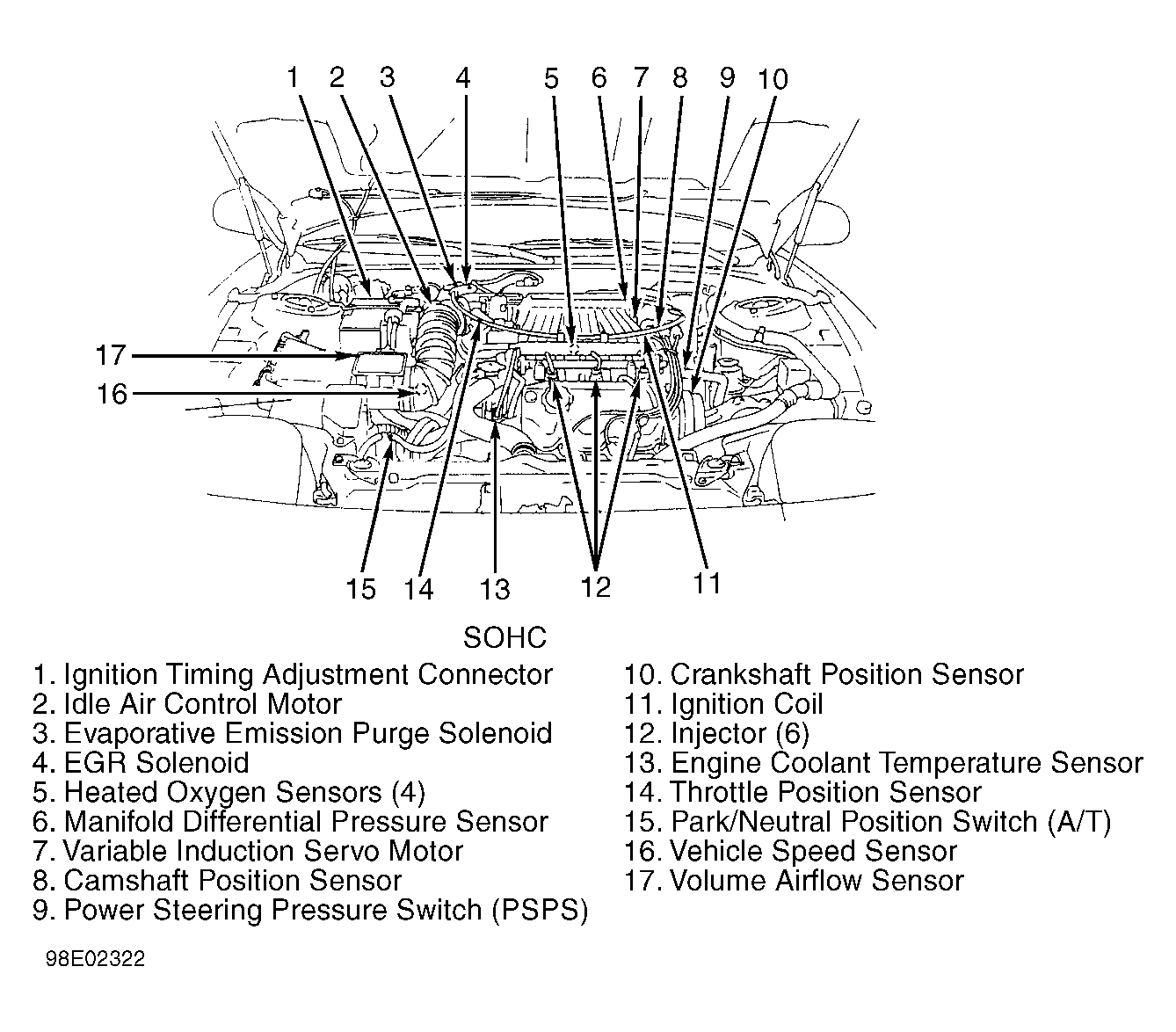

Fig 2: Engine Compartment (SOHC)
G98E02322

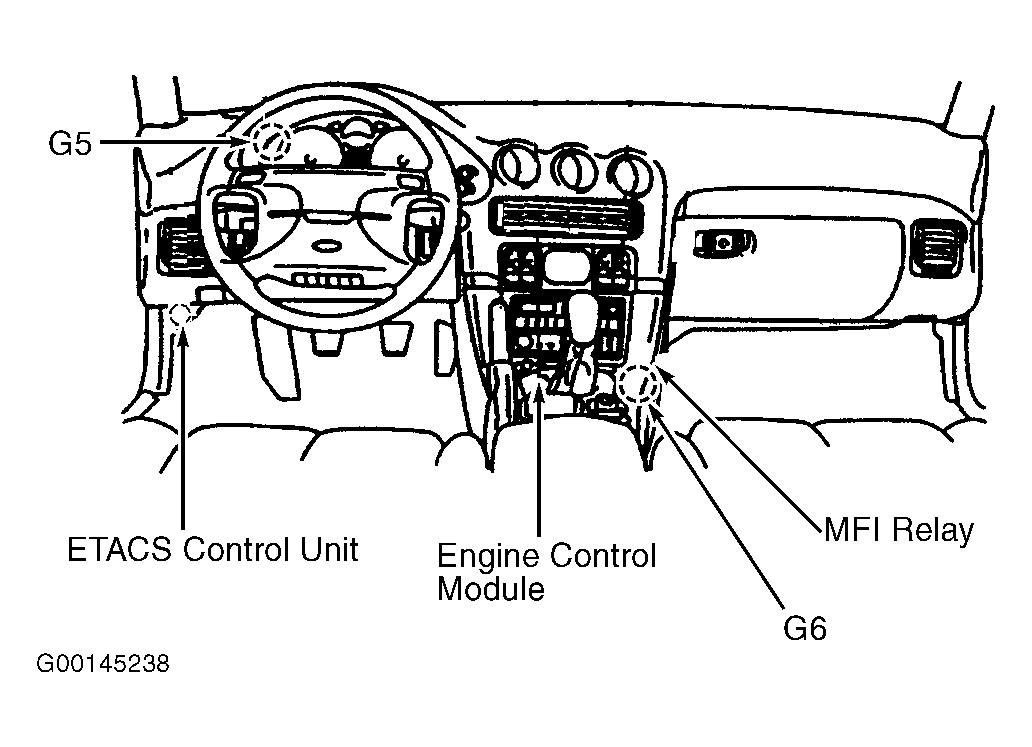

Fig 3: Dash
G00145238
