Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

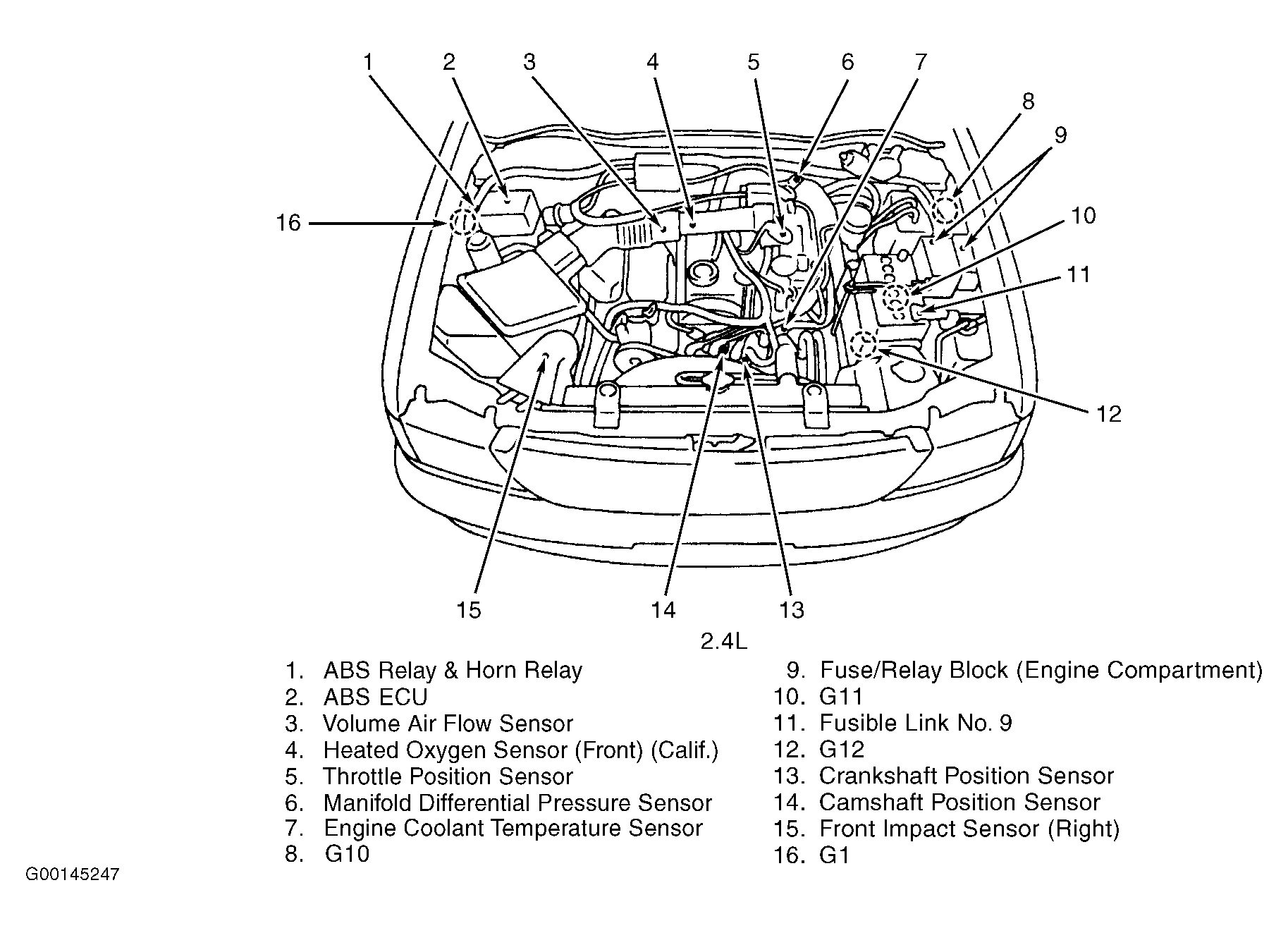

Fig 1: Engine Compartment (2.4L)
G00145247

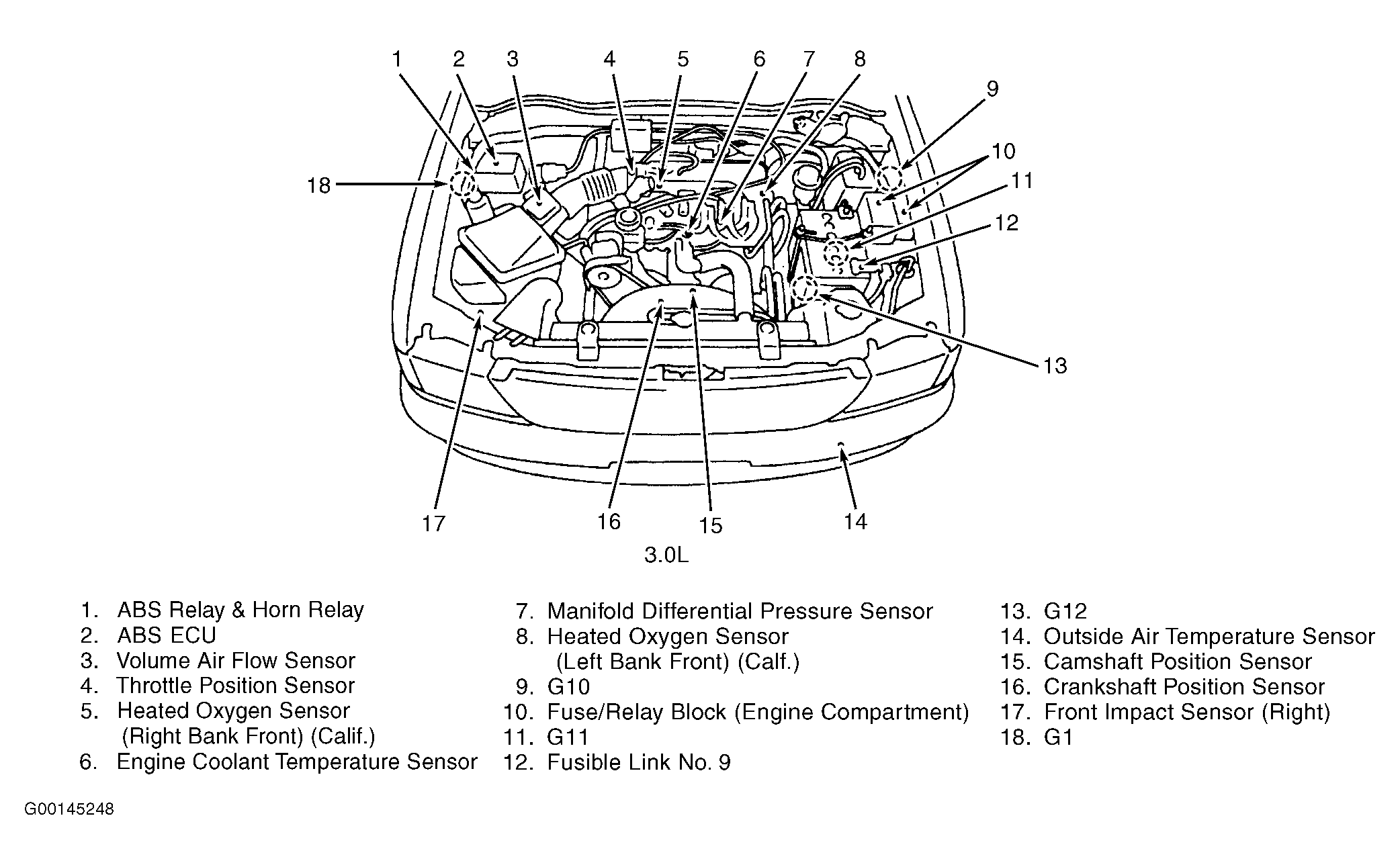

Fig 2: Engine Compartment (3.0L)
G00145248

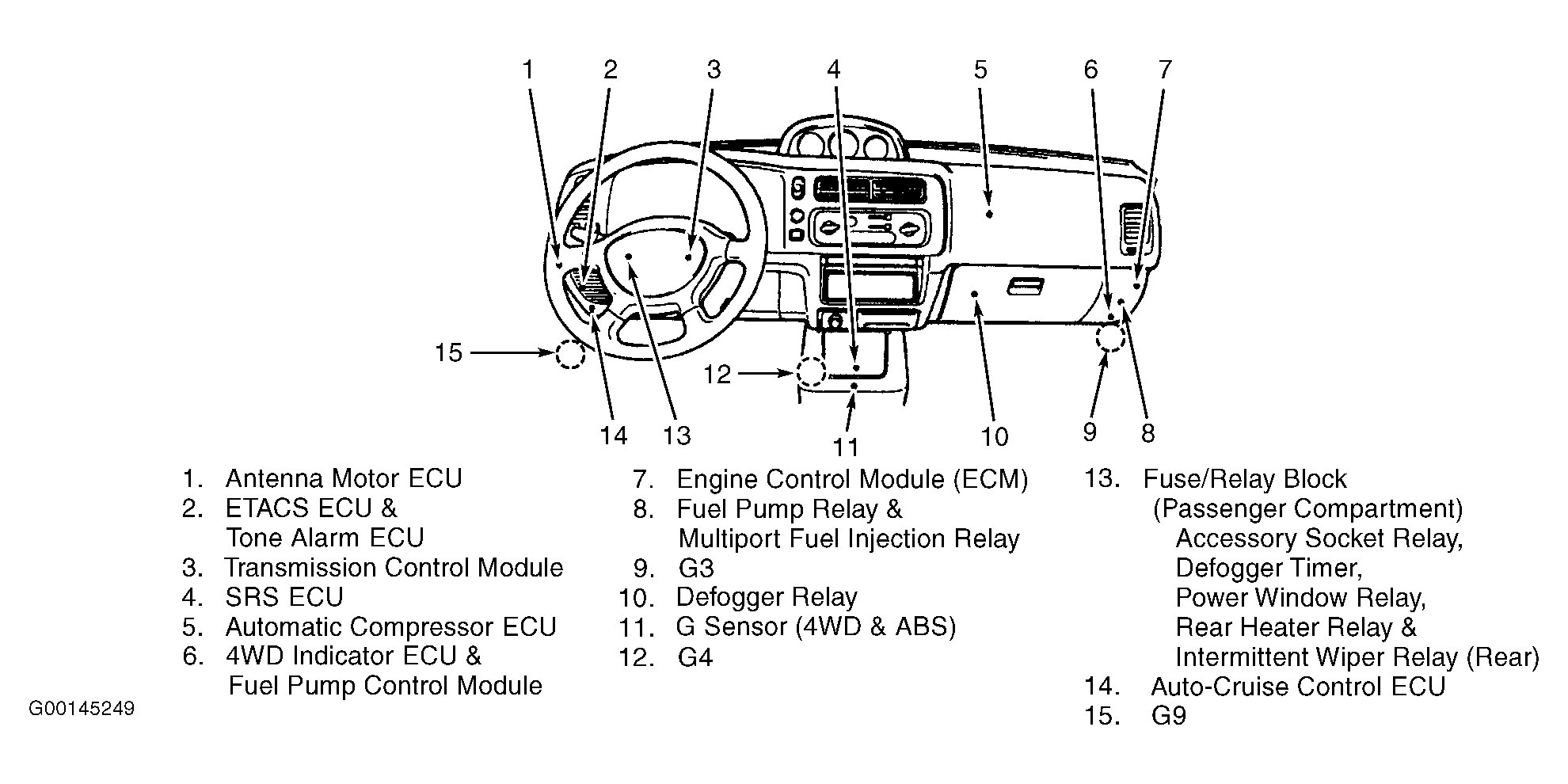

Fig 3: Dash
G00145249
