Diagnostic Detection Logic

For diagnostic detection logic, see Fig 1 .

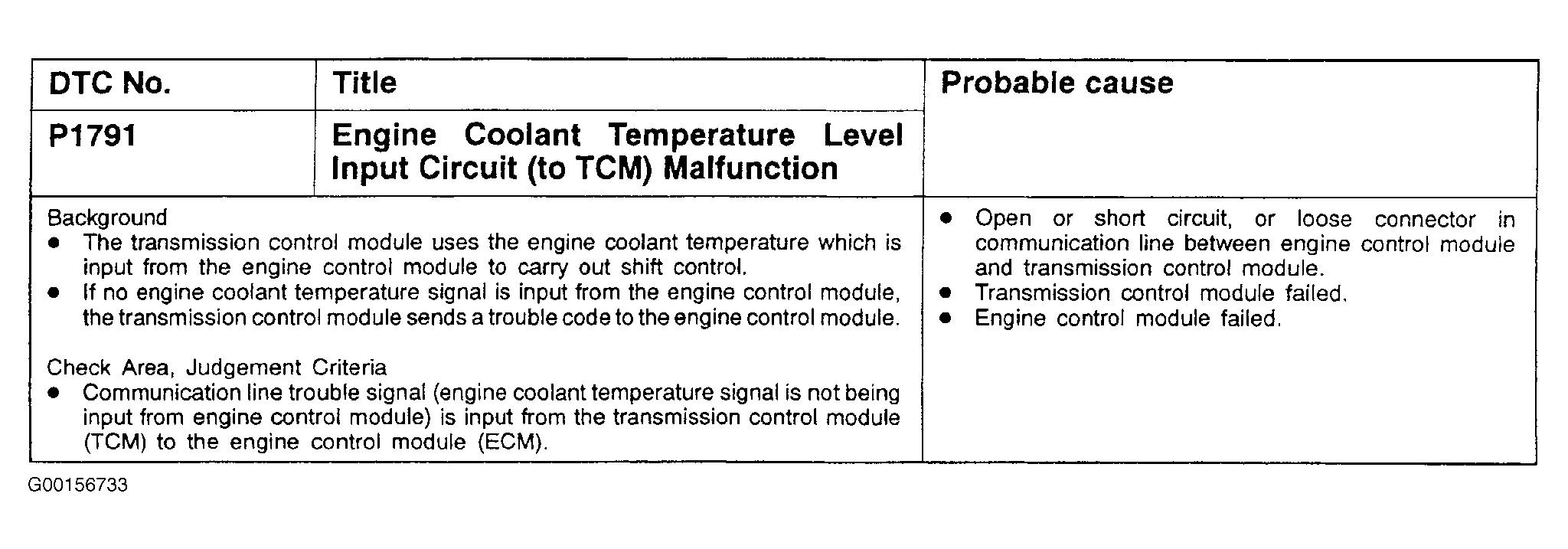

Fig 1: P1791: Engine Coolant Temperature Level Input Circuit (To TCM) Malfunction (Diagnostic Detection Logic)
G00156733Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
