Using ANTI-LOCK Warning Light

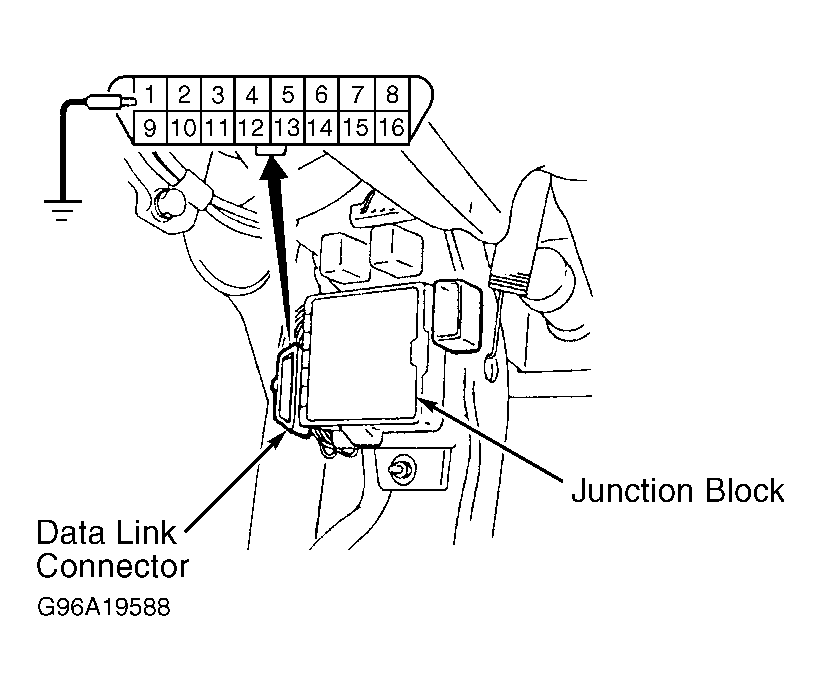

- To retrieve stored DTCs, locate Data Link Connector (DLC) under left side of dash. Turn ignition off. Ground DLC terminal No. 1. See Fig 1
.
- If DTCs are stored in ECU memory, ANTI-LOCK light will begin to flash intermittently. Long flashes represent first digit of DTC; short flashes represent second digit. For example, 4 long flashes and 3 short flashes indicate DTC 43. If 2 or more DTCs are stored, lowest number will be displayed first. DTC 51 will always be displayed if valve relay is removed.
- After recording DTC(s), see DTC DEFINITION
table and perform appropriate DTC test(s) under DIAGNOSTIC TESTS
. If no DTCs are stored, ANTI-LOCK warning light will flash constantly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
