Cruise Control Cable

Remove link protector. Loosen lock nut. Hold link "A" so that it touches link "B". Adjust free play by turning adjusting nut until free play is.04-.08" (1-2 mm). Tighten lock nut. See Fig 1 and Fig 2.

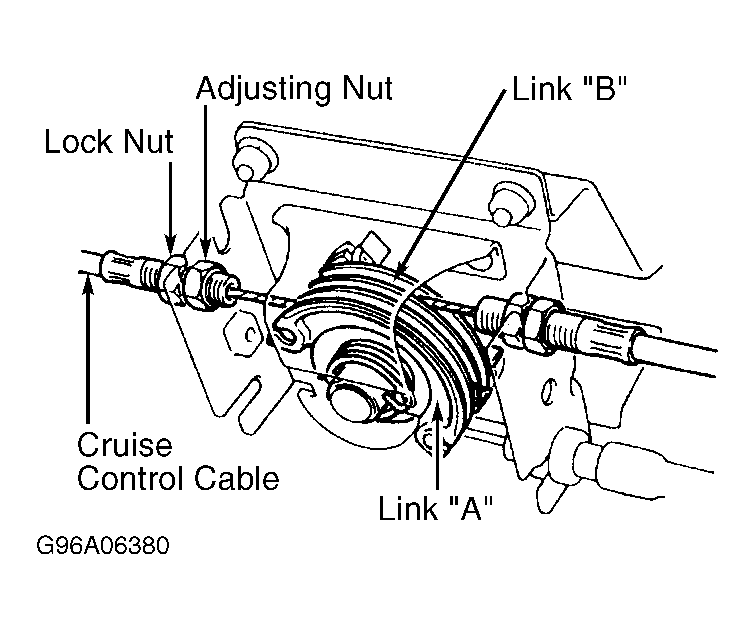

Fig 1: Adjusting Cruise Control Cable (Except California)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA

Fig 2: Adjusting Cruise Control Cable (California)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
