Transfer Case: Disassembly

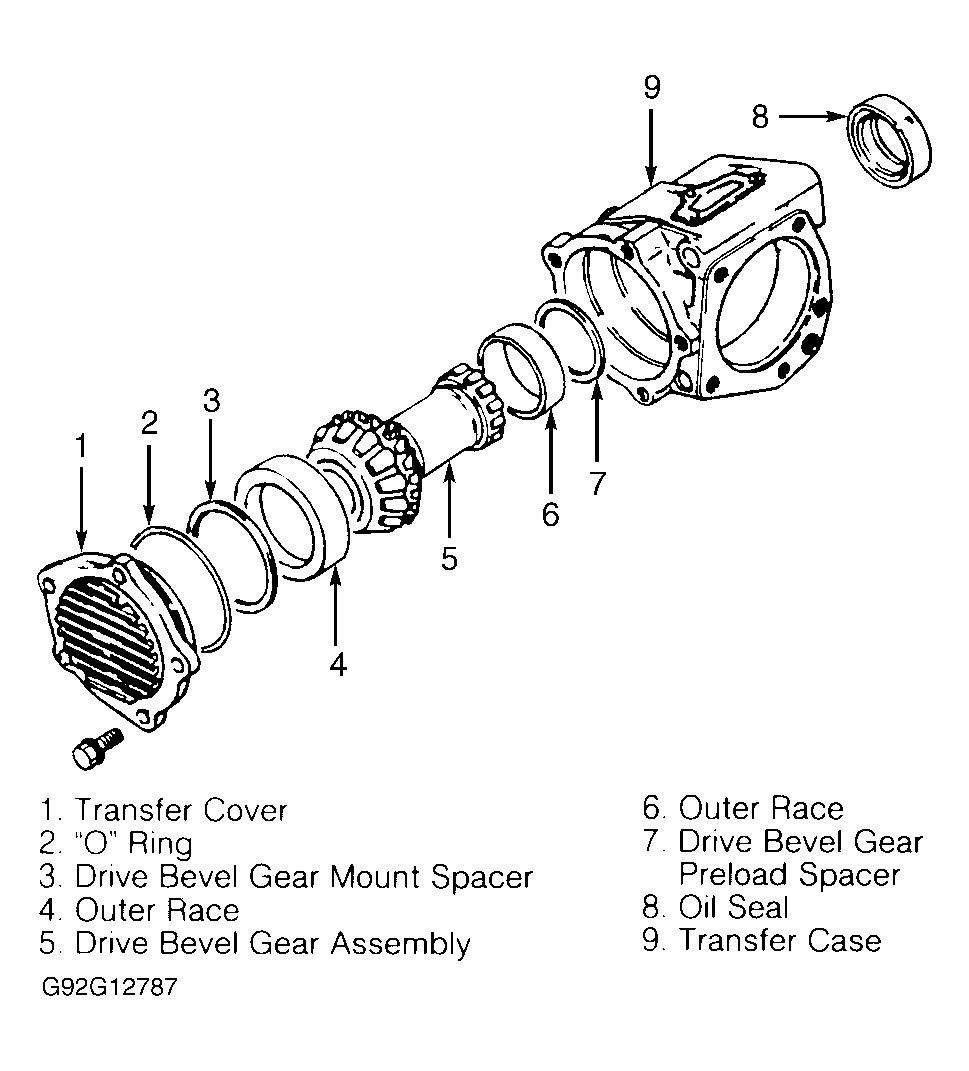

Remove transfer case from transfer case adapter. See Figure. Remove bolts, transfer cover, "O" ring, drive bevel gear mount spacer and outer race. See Figure. Remove drive bevel gear assembly, outer race, drive bevel gear preload spacer and oil seal.
