Continuity Check

  1. Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Check continuity between reed switch terminals No. 1 and 10. SeeFig 1 .
  2. Ensure continuity pulses on and off 4 times per revolution of speedometer shaft connection. If continuity is not as specified, replace reed switch.

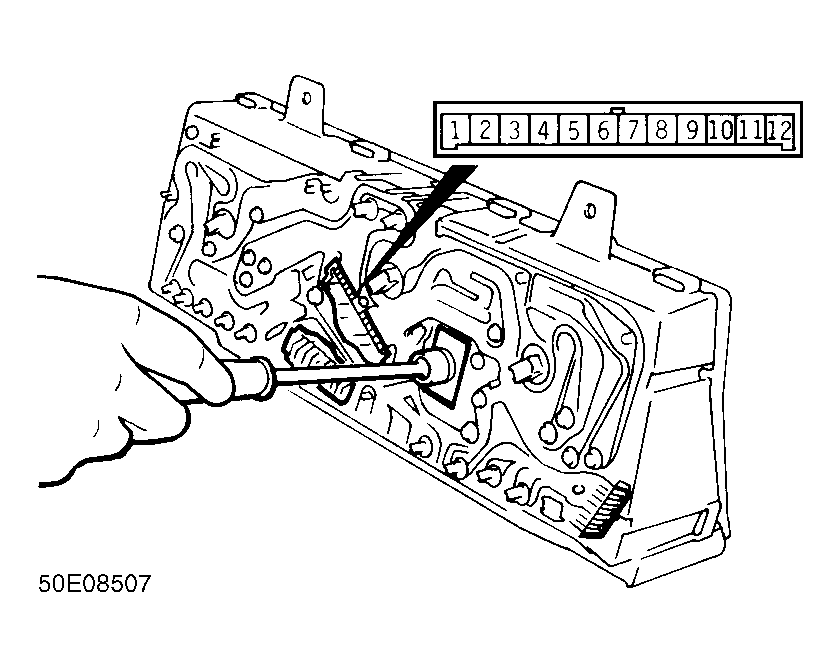

Fig 1: Reed Switch Test Terminals
G50E08507Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
