Continuity Check

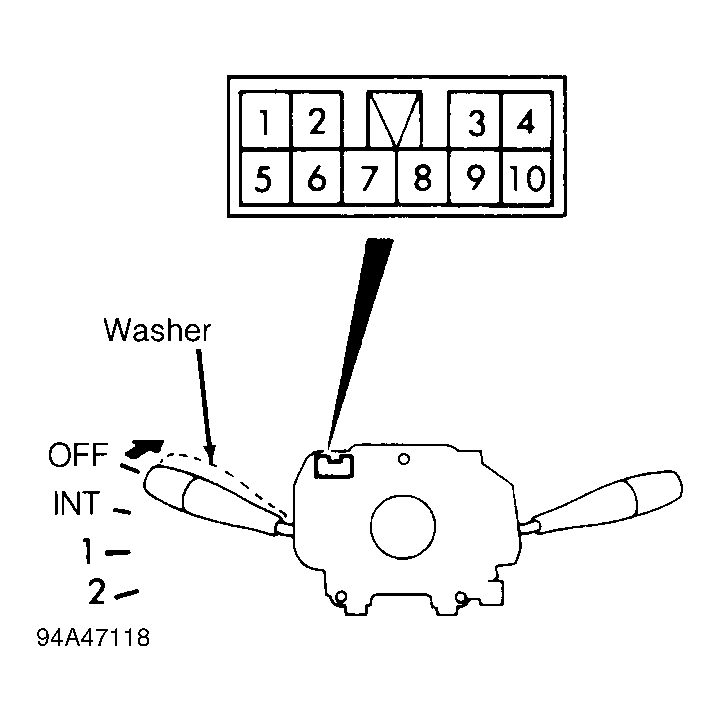

Relay is built into column switch assembly. SeeFig 1 . With switch installed, check for continuity as specified in WIPER/WASHER CONTINUITY CHECK . Replace column switch assembly if continuity is not as specified.
WIPER/WASHER CONTINUITY CHECK
| Switch Position | (1) Check Continuity Between | |||
|---|---|---|---|---|
| Wiper Switch | ||||
| Off | Pins No. 6 & 7 | |||
| 1 | Pins No. 7 & 9 | |||
| 2 | Pins No. 8 & 9 | |||
| Washer Switch | ||||
| On | Pins No. 5 & 9 | |||
|
||||
