Hydraulic Unit: Installation

To install, reverse removal procedure. Install hydraulic unit brakelines. Ensure brakelines are installed in correct location. See Fig 1 . Bleed brake system. See BLEEDING BRAKE SYSTEM  .

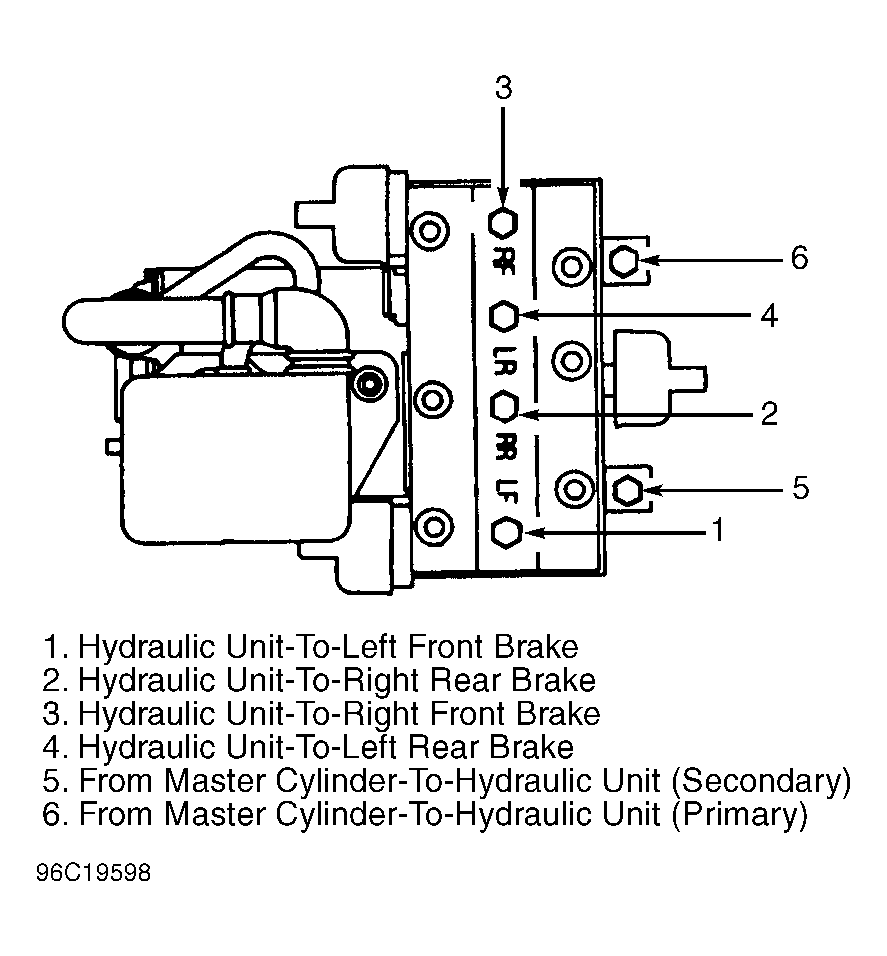

Fig 1: Identifying Brakeline Connections To Hydraulic Unit

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
