Ignition System
>>
Firing Order
Firing Order
WARNING:
On many models, improper arrangement of spark plug wires will cause miss firing and surge during high-speed operation. Ensure spark plug wires are routed as shown.

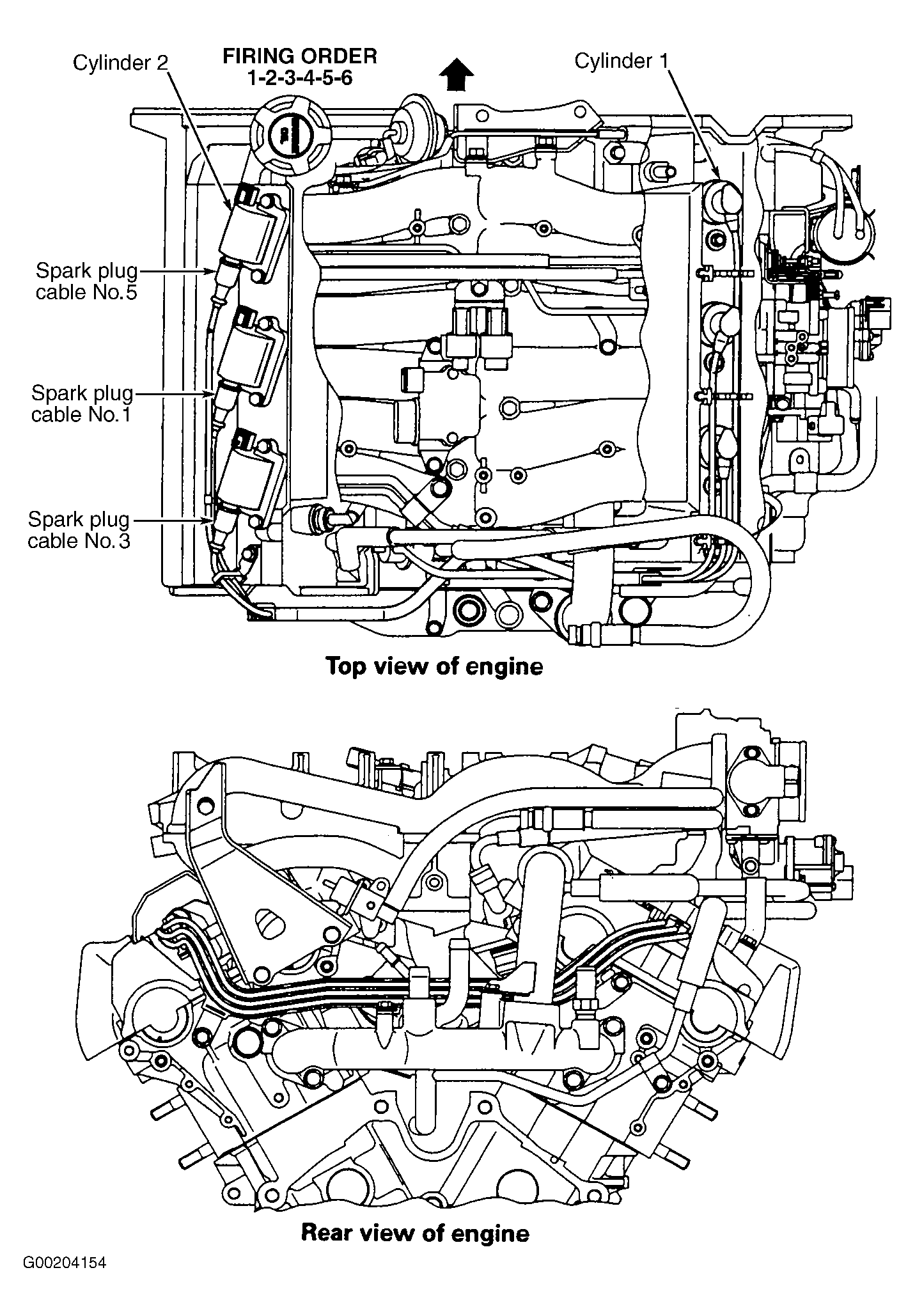

Fig 1: Firing Order & Plug Wire Routing (3.5L DOHC)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
