Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Left Side Of Dash

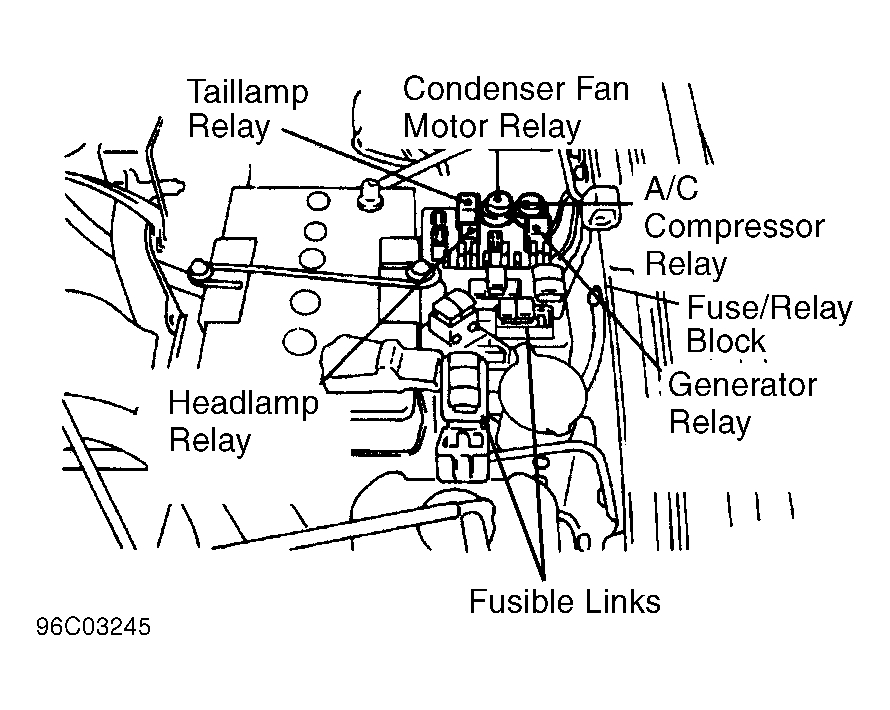

Fig 2: Engine Compartment Fuse/Relay Block

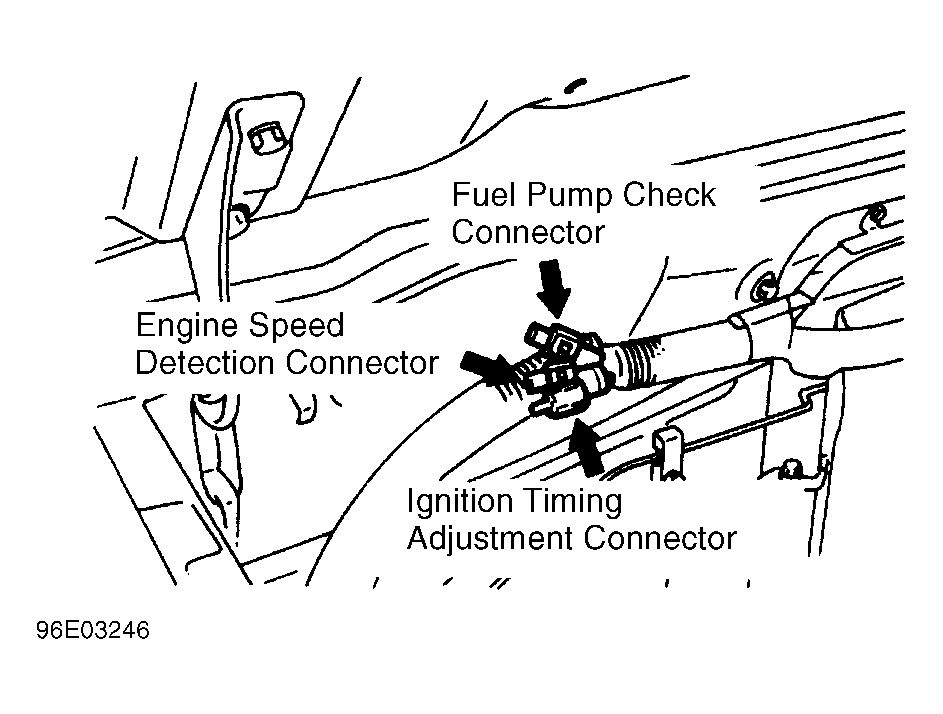

Fig 3: Right Side Of Firewall

Fig 4: Left Side Of Dash

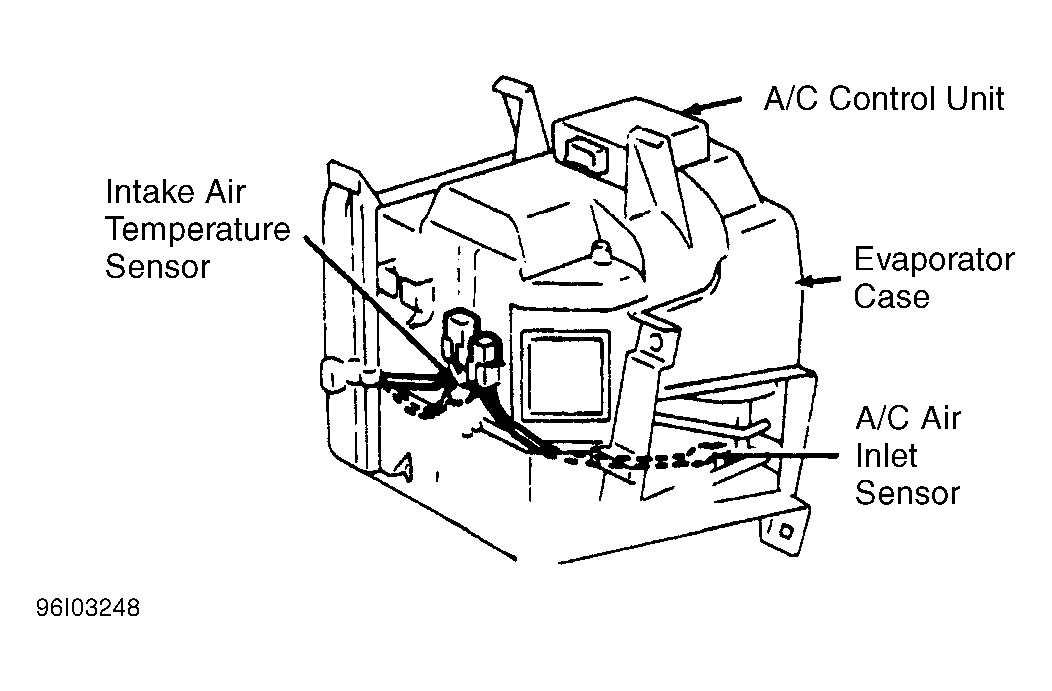

Fig 5: Evaporator Case

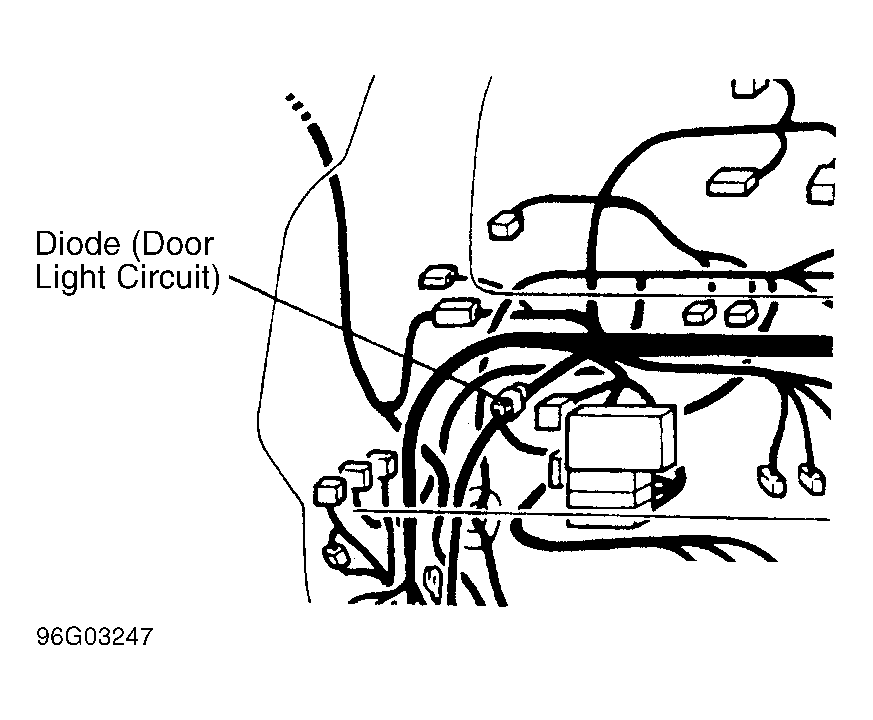

Fig 6: Center Of Dash

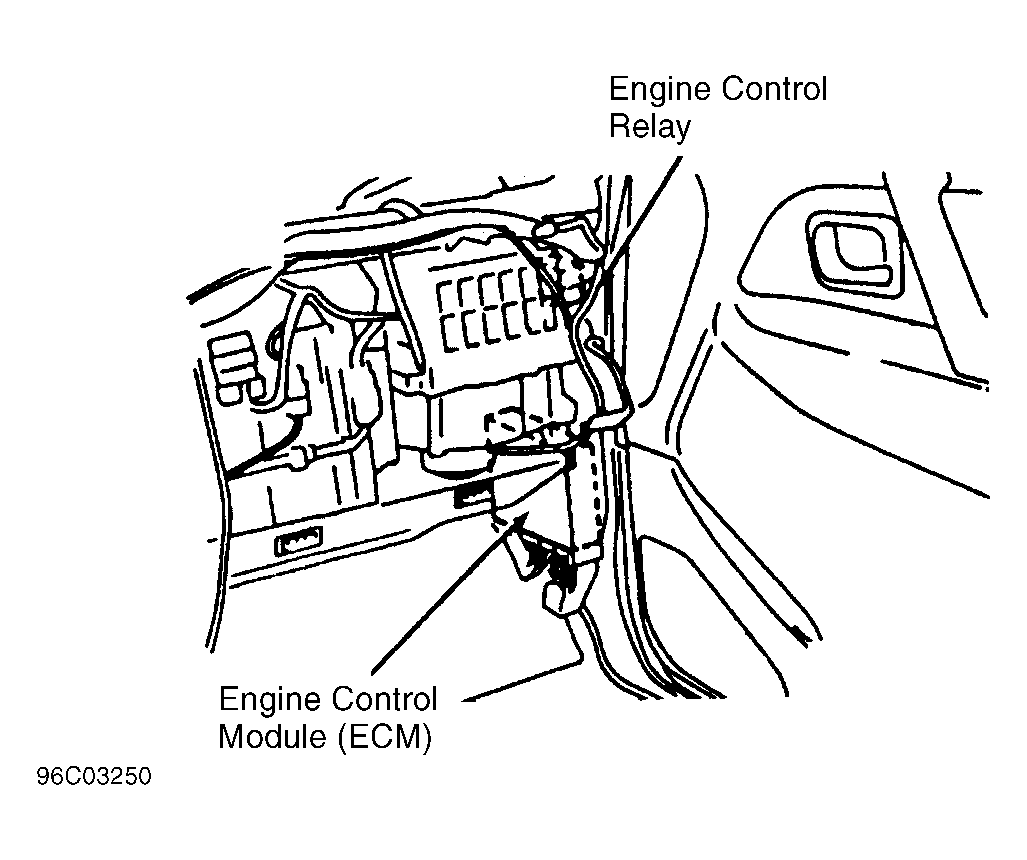

Fig 7: Right Kick Panel

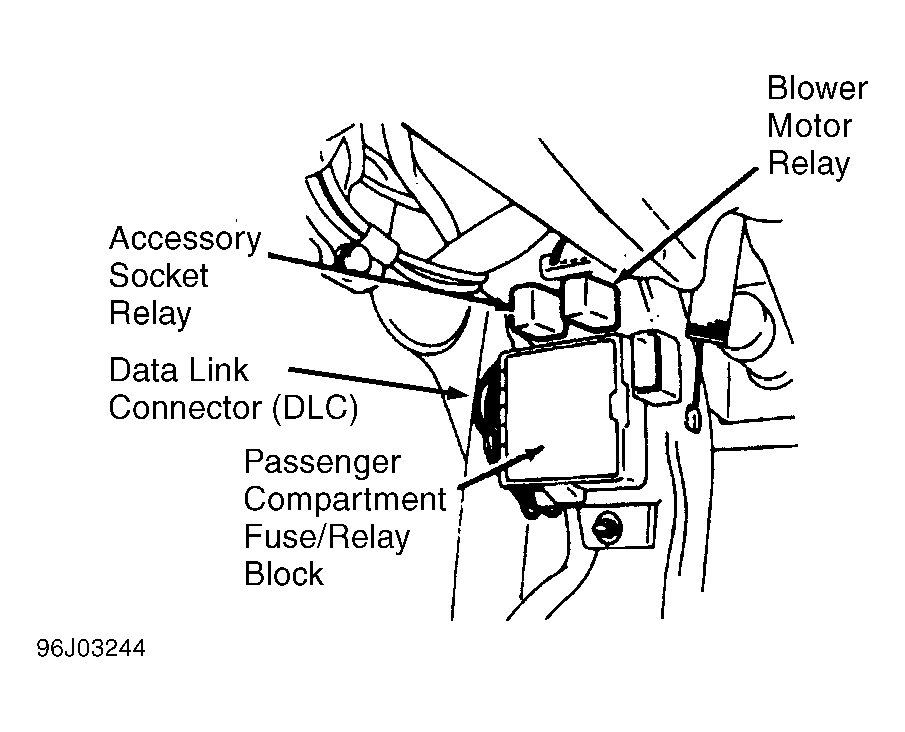

Fig 8: Right Side Of Dash
