Overhaul - F5MC1: Description

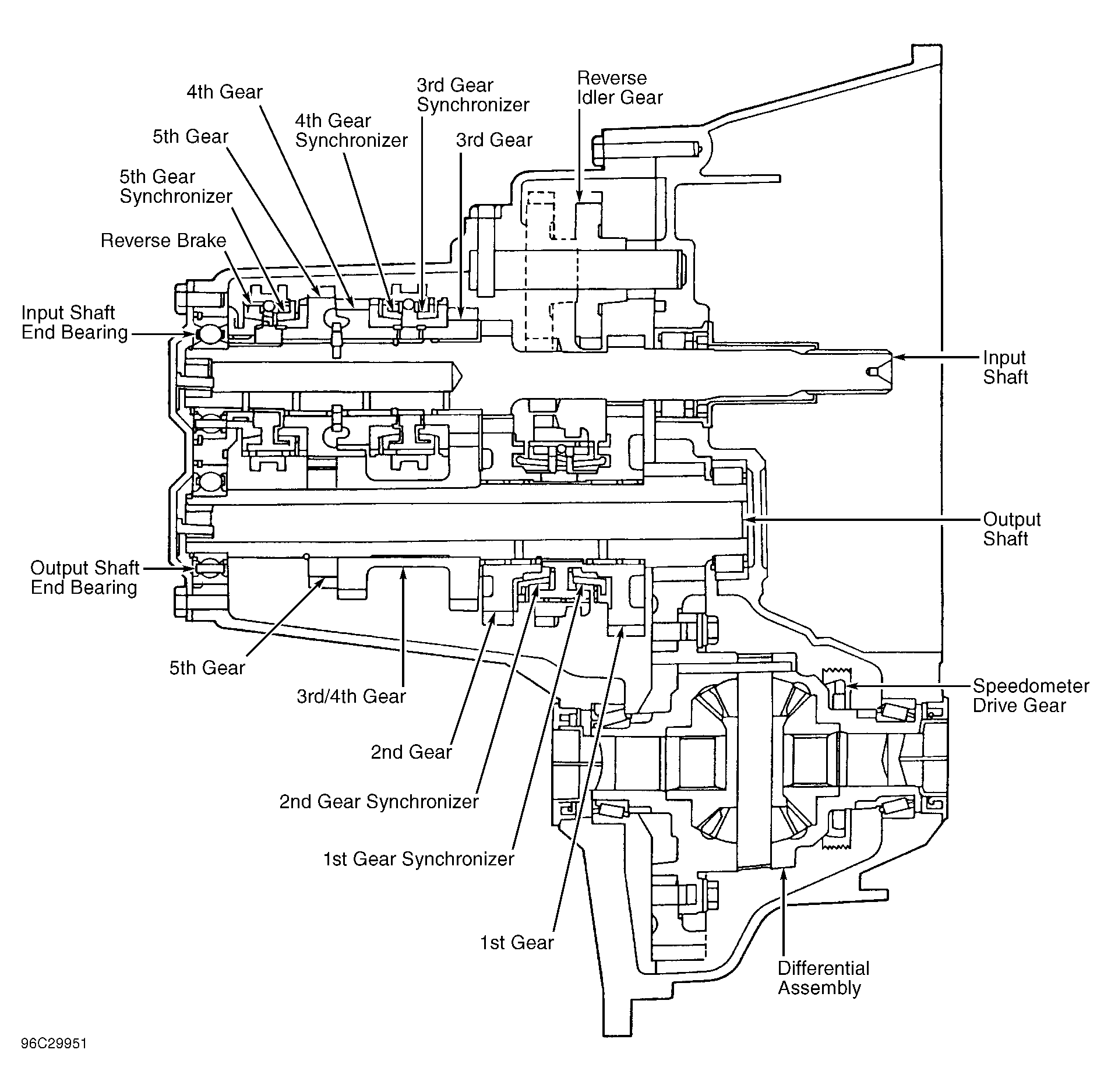

F5MC1 5-speed transaxle is a fully synchronized, manual, front wheel drive transmission. See Fig 1 . Transmission features a final drive ratio of 3.55:1. Output shaft overhaul is not possible and should be replaced as an assembly if determined to have excess wear or damage.
