Pcm Reprogramming Or Replacement - Service Procedure (TSB-95-13-001)

Publication date: 1995-04-01
Reference number: TSB-95-13-001
Supersedes refnos: TSB-94-13-003, TSB-94-13-003 REV.

PCM REPROGRAMMING OR REPLACEMENT - SERVICE PROCEDURE

TECHNICAL SERVICE BULLETIN

Reference Number(s): TSB-94-13-003, TSB-94-13-003 REV.

PCM REPROGRAMMING OR REPLACEMENT

Model(s): 1995 Mitsubishi Eclipse

Group: 13 - Fuel

Bulletin No.: TSB-94-13-003 Rev

Date: April 1995

NOTE: This Technical Service Bulletin replaces TSB-94-13-003 Rev that was issued in February, 1995. Changes include reprgramming instructions for DTC 113 and corrected warranty labor operation numbers.

PURPOSE

Diagnostic Trouble Code (DTC) 111 or DTC 113, or DTC 126 or poor driveability may be due to Powertrain Control Module (PCM) software complications. After performing diagnostic procedures, PCM reprogramming or replacement can eliminate these conditions.

VEHICLES AFFECTED

Condition: DTC 111, DTC 126 or Poor Driveability

Vehicle: 1995 Eclipse Non-Turbo Only

Build Date: Before 9/11/94

VIN: Sequence Numbers Before VIN 4A3A** 4Y* SE064919

(* - The number or letter designation in these positions depends on the individual vehicle.)

Condition: DTC 113

Vehicle: 1995 Eclipse Non-Turbo Manual Transmission Only

Build Date: 9/11/94 to 2/15/95

VIN: Sequence Numbers VIN 4A3A** 4Y* SE064918 to

4A3A** 4Y* SE155130

(* - The number or letter designation in these positions depends on the individual vehicle.)

BACKGROUND INFORMATION

DTC 111 AND DTC 126 (SCAN TOOL CODES P0411 AND P0138)

Affected vehicles may experience one or more of the following:

Check Engine/malfunction Indicator Lamp comes on for Diagnostic Trouble Code (DTC) #111
Check Engine/Malfunction Indicator Lamp comes on for Diagnostic Trouble Code (DTC) #126
Engine stalls during warm-up at cold ambient temperatures.
Long restart times after stall at cold ambient temperatures.
Rough idle after warm engine startup.
Engine RPM rises suddenly when air conditioning is turned on.
On manual transmission models, engine RPM drops suddenly after releasing the clutch.
On manual transmission models, engine surges under light acceleration.

On affected vehicles DTC 111 DTC 126 may be due to the PCM software program.

After normal diagnosis, the pulsed secondary air injection (aspirator) valve must be checked and replaced if necessary. Then the following PCM procedures must be performed:

On vehicles produced on or before 6/16/94, reprogram the PCM, using reprogramming cartridge MIT992006. This cartridge is included in Reprogramming Kit MIT992000-A, which was distributed to dealers earlier this year. Refer to the PROCEDURE section for details.
On vehicles produced from 6/17/94 to 9/10/94, install a new, recalibrated PCM. Refer to the PROCEDURE (FOR DTC 113) chart for details.

DTC 113 (SCAN TOOL CODES P0411)

On affected vehicles, DTC 113 may be due to the PCM software program. To eliminate DTC 113, reprogramming cartridge MIT992007 has been designed to modify the PCM program. This cartridge was shipped to dealers during the week of March 13, 1995.

If a new PCM (Part No. MO5269656 or M05269653) was installed on a vehicle produced between 6/16/94 and 9/10/94 to eliminate DTC 111, DTC 126 or poor driveability, you may need to reprogram the PCM in order to eliminate DTC 113.

SERVICE PROCEDURE

FOR DTC 111 and 126

Perform the following diagnostic procedures:
1. Follow the appropriate DTC diagnostic troubleshooting chart and/or Inspection Procedure for Trouble Symptoms chart.
2. On manual transmission models remove the pulsed secondary air injection (aspirator) valve. See Fig 1 . Check the valve by blowing air through it from side A to side B. See Fig 2 . If you can blow air through the valve from side A to side B, replace the valve.

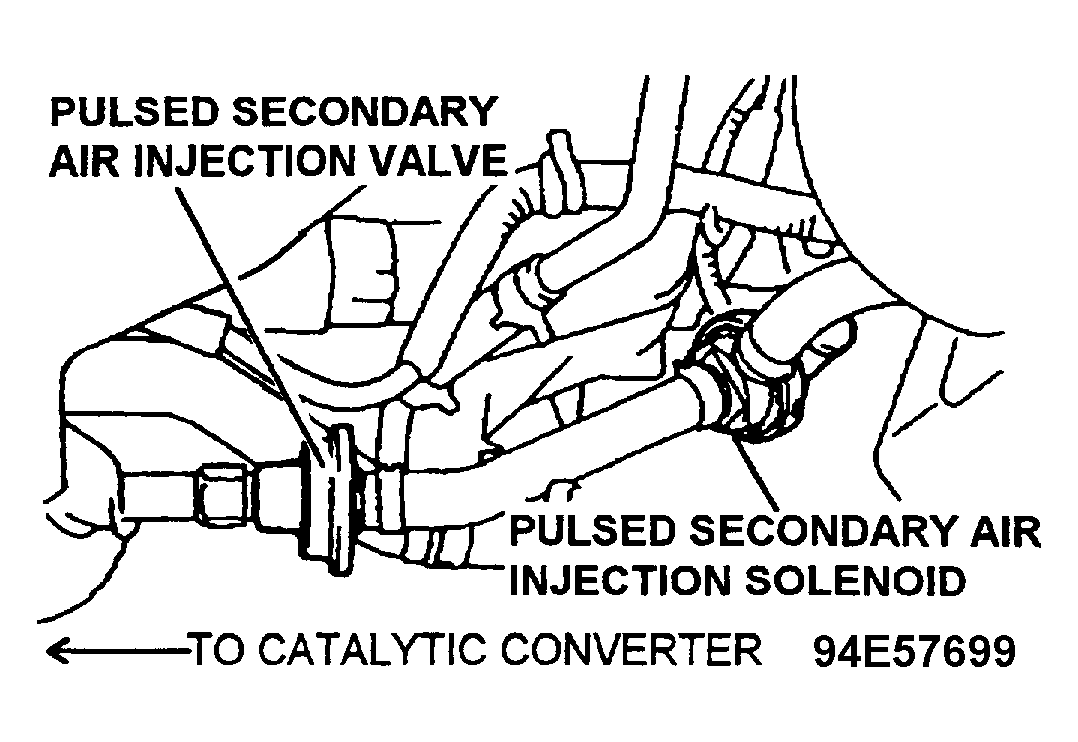

  Fig 1: Location of Pulsed Secondary Air Injection Valve

  Fig 2: Checking Pulsed Secondary Air Injection Valve
If any malfunction is found during the troubleshooting procedures, repair as needed. Then perform a road test to determine if the problem is eliminated. Be sure to duplicate the symptom conditions (e.g. cold ambient temperatures, etc.) during the road test. If DTCs other than #111 and #126 are read with the scan tool, repair the problem using the appropriate DTC troubleshooting chart. Then perform a road test and retest to determine if the DTC is eliminated.
If no malfunction is found and the problem is not eliminated:
- On vehicles produced on or before 6/16/94, reprogram the PCM as described in the PCM REPROGRAMMING section of this bulletin, using Reprogramming Cartridge MIT992006 for DTC 111 and 126.
- On vehicles produced from 6/17/94 to 9/10/94, install a new, recalibrated PCM. Do not attempt to reprogram the PCM on these vehicles. Replace the PCM with the appropriate part number (found in the next chart). After installation, affix an "Engine Compartment" label as described in Step 10 of the PCM REPROGRAMMING section of this bulletin. (Do not use the "Control Module" label.)

FOR DTC 113

Follow the DTC 113 diagnostic troubleshooting chart. If any malfunction is found during the troubleshooting procedures, repair as needed. If DTCs other than DTC 113 are read with the scan tool, repair the problem using the appropriate DTC troubleshooting chart. Then perform a road test and retest to determine if the DTC is eliminated.
Reprogram the PCM as described in the PCM REPROGRAMMING section of this TSB, using Reprogramming Cartridge MIT992007 for DTC 113.
If DTC 113 is read with the scan tool and a new PCM (Part No. MO52169656 or MO5269653) was previously installed on a vehicle produced between 6/16/94 and 9/10/94 to eliminate DTC 111, DTC 126 or poor driveability, reprogram the PCM as described in the PCM REPROGRAMMING section, using Reprogramming Cartridge MIT992007 for DTC 113.

Refer to the chart below for appropriate repairs, PCM part numbers and reprogramming cartridges. Then check the current PCM part number on the vehicle and refer to Attachment 1 to confirrn the appropriate repair action.

PLACEMENT PARTS INFORMATION

Model: Federal & California M/T

Build Date: Before 6/16/94

VIN: Before 4A3AK44Y9SE027237

Condition: DTC 111, 126 or Poor Driveability

Method: 1. Test aspirator valve and

2. Reprogram PCM Part No: Cartridge MIT9X2006

Model: Federal M/T

Build Date: 6/17/94 to 9/10/94

VIN: 4A3AK44Y9SE027237 to 4A3AK34Y6SE064918

Condition: DTC 111, 126 or Poor Driveability

Method: 1. Test aspirator valve and

2. Replace PCM Part No: PCM M05269730

Model: Federal M/T

Build Date: 6/17/94 to 9/10/94

VIN: 4A3AK44Y9SE027237 to 4A3AK34Y6SE064918

Condition: DTC 113

Method: Reprogram PCM

Part No: Cartridge MIT992007

Model: California M/T

Build Date: 6/17/94 to 9/10/94

VIN: 4A3AK44Y9SE027237 to 4A3AK34Y6SE064918

Condition: DTC 111, 126 or Poor Driveability

Method: 1. Test aspirator valve and

2. Replace PCM Part No: PCM M05269729

Model: California M/T

Build Date: 6/17/94 to 9/10/94

VIN: 4A3AK44Y9SE027237 to 4A3AK34Y6SE064918

Condition: DTC 113

Method: Reprogram PCM

Part No: Cartridge MIT992007

Model: Federal & California M/T

Build Date: 9/11/94 to 2/15/94

VIN: 4A3AK34Y6SE064918 to 4A3AK34Y6SE155130

Condition: DTC 113

Method: Reprogram PCM

Part No: Cartridge MIT992007

Model: Federal & California M/T

Build Date: Before 6/16/94

VIN: Before 4A3AK44Y9SE027237

Condition: Poor Driveability

Method: Reprogram PCM

Part No: Cartridge MIT992006

Model: Federal & California M/T

Build Date: 6/17/94 to 9/10/94

VIN: 4A3AK44Y9SE027237 to 4A3AK34Y6SE064918

Condition: Poor Driveability

Method: Reprogram PCM

Part No: PCM M05269658

PCM REPROGRAMMING

Gather the following equipment which is contained in Reprogramming Kit MIT992000-A:

REPROGRAMMING KIT - MIT992000-A

Description	Tool No./Part No.
Reprogramming Unit	MIT992000
Reprogramming Cartridge	MIT992006 (for #111 or #126)
Reprogramming Cartridge	MIT992007 (for #113)
EATXIII/Engine Harness	MIT992001
"Engine Compartment and "Control Module" Labels	MSSF-023G-00

Follow the procedures in the Reprogramminq Unit Instruction Manual for connecting the EATXIII harness, installing the appropriate cartridge into the reprogramming unit, and connecting it to the vehicle.
Follow the displayed instructions on the reprogramming unit.
The display will ask if you want to change the engine controller part number. Select Yes. Reprogramming will begin.
The current and replacement PCM part numbers will display. Record the displayed replacement PCM part number.
If the PCM cannot be reprogrammed, the displayed current and replacement PCM part numbers will be the same, or the message "THIS CARTRIDGE CANNOT UPDATE ENGINE CONTROLLER P/N XXX" will display. If so, do not continue with this reprogramming procedure. Refer to the appropriate diagnostic instructions in the service manual.
Follow the displayed instructions on the reprogramming unit to continue with the reprogramming process. When completed, disconnect the reprogramming unit and EATXIII harness.
Using a ball-point pen, enter the replacement PCM part number (see Step 5 above), your dealer code, and the current date on the "Control Module" label.
Affix the "Control Module" label to the side of the PCM. See Fig. 3.

Fig 3: Control Module Label
Using a ball-point pen, enter the replacement PCM part number, this TSB number (TSB-95-13-001), your dealer code, and the current date on the "Engine Comparment" label. See. Fig. 4.

Fig 4: Engine Compartment Label

Carefully remove all dirt and oil from the vacant area shown

on the underside of the hood. See Fig 5 . Affix the "Engine

Compartment" label in the area shown.

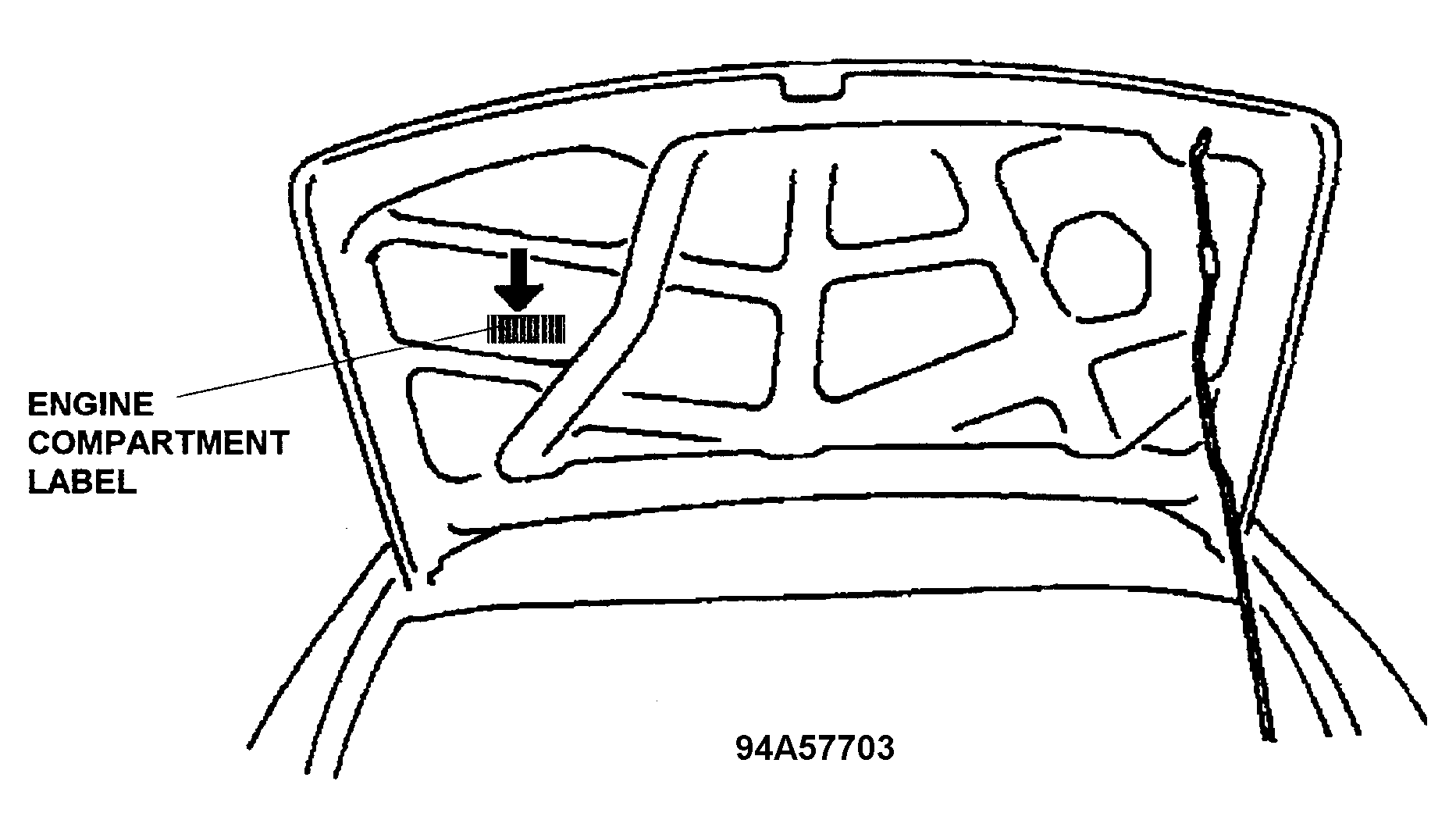

Fig 5: Designated Area for Engine Compartment Label

PARTS INFORMATION

NOTE: Refer to the PROCEDURE section of this Technical Service Bulletin to determine whether PCM replacement is required. Install the correct PCM for the vehicle model and build date.

Use Pulsed Secondary Air Injection Valve part number M04300376.

Additional "Control Module" and "Engine Compartment" labels (part No. MSSF-023G-00) are available from your MMSA Parts Distribution Center (PDC).

WARRANTY INFORMATION

PCM REPLACEMENT

Nature Code: 99D

Cause Code: 990

Labor Operation Number: 13850110

Time Allowance: 0.6 hr.

Warranty Coverage: 5 years/50,000 miles

Special Warranty Information: PCM replacement on as-needed basis

only.

PCM REPROGRAMMING (DTC 111, DTC 126)

Nature Code: 99D

Cause Code: 990

Labor Operation Number: 13850100

Time Allowance: 0.5 hr.

Warranty Coverage: 5 years/50,000 miles

Special Warranty Information: PCM replacement on as-needed basis

only.

PCM REPROGRAMMING (DTC 113)

Nature Code: 99D

Cause Code: 990

Labor Operation Number: 13850100

Time Allowance: 0.5 hr.

Warranty Coverage: 5 years/50,000 miles

Special Warranty Information: PCM replacement on as-needed basis

only.

SECONDARY AIR VALVE TEST AND REINSTALLATION

Nature Code: 99D

Cause Code: 990

Labor Operation Number: 17861200

Time Allowance: 0.2 hr.

Warranty Coverage: 5 years/50,000 miles

Special Warranty Information: Cannot be used with labor operation

17861210.

SECONDARY AIR VALVE TEST AND REPLACEMENT

Nature Code: 99D

Cause Code: 990

Labor Operation Number: 17861210

Time Allowance: 0.2 hr.

Warranty Coverage: 5 years/50,000 miles

Special Warranty Information: Valve replacement on as-needed basis

only. Cannot be used with labor

operation 17861210.

ATTACHMENT 1 - ON-VEHICLE PCM PART NUMBERS

DTC 111, DTC 126 OR POOR DRIVEABILITY

Diagnosis may indicate that the PCM requires either replacement or reprogramming to eliminate DTC 111 or DTC 126 or poor driveability.

Before continuing, refer to the vehicle production date and VIN as a guideline for the appropriate repair action.
In addition, confirm the appropriate repair action by inspecting the current PCM part number on the vehicle.

Current PCM P/N: MO5293318

Repair Action: Reprogram PCM

Reprogramming Cartridge: MIT992006

Current PCM P/N: MO5293319

Repair Action: Reprogram PCM

Reprogramming Cartridge: MIT992006

Current PCM P/N: MO5293370

Repair Action: Reprogram PCM

Reprogramming Cartridge: MIT992006

Current PCM P/N: MO5293322

Repair Action: Replace PCM

Replacement PCM P/N: MO5269730

Current PCM P/N: MO5269641

Repair Action: Replace PCM

Replacement PCM P/N: MO5269729

Current PCM P/N: MO5269622

Repair Action: Replace PCM

Replacement PCM P/N: MO5269658

DTC 113

Diagnosis may indicate that the PCM requires reprogramming to eliminate DTC 113.

For the following current PCM part numbers, if DTC 113 is read with the scan tool, you must reprogram the PCM using reprogramming cartridge MIT992007.

Current PCM P/N: MO5269656

Reprogramming Cartndge: MIT992007

Current PCM P/N: MO5269653

Reprogramming Cartndge: MIT992007
