Service Point Locations

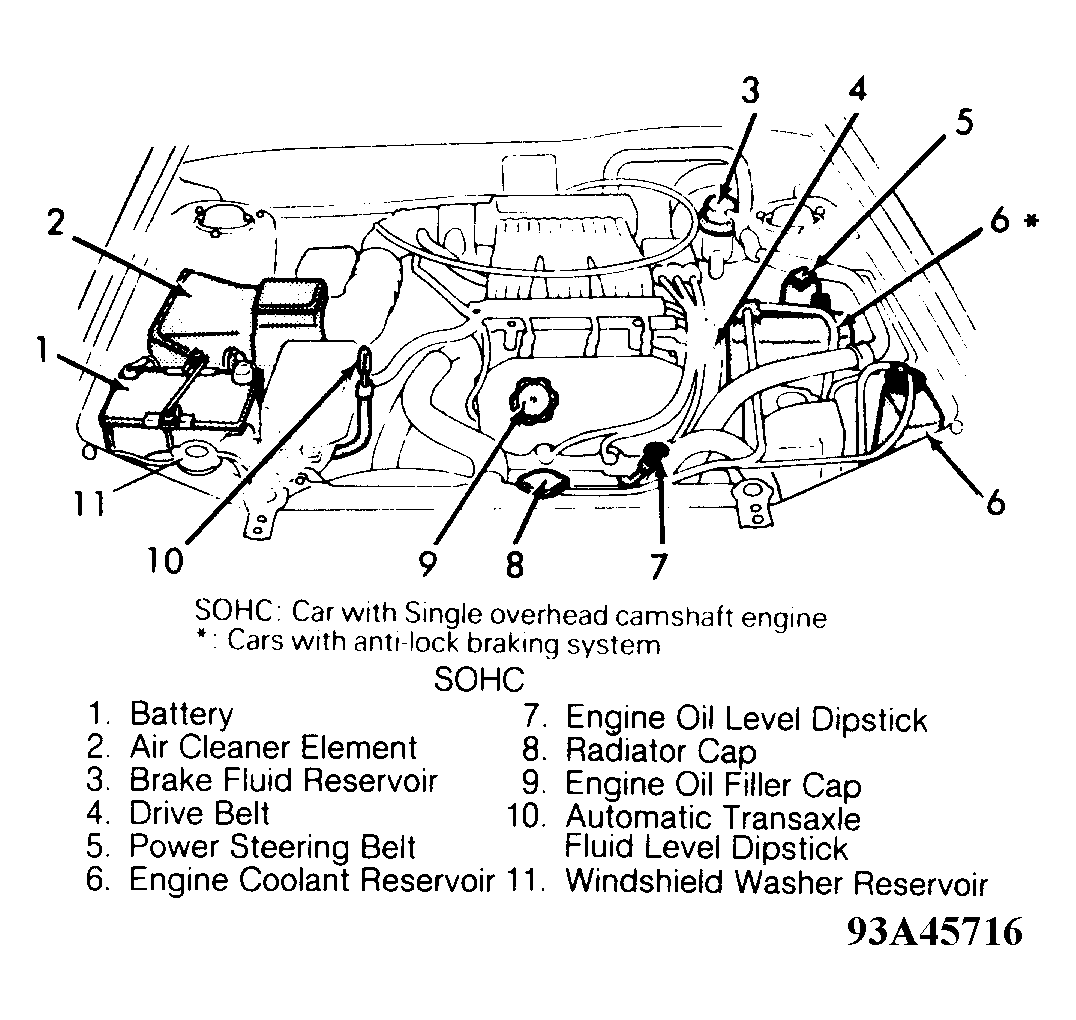

Fig 1: Service Point Locations (SOHC Engine)
G93A45716Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

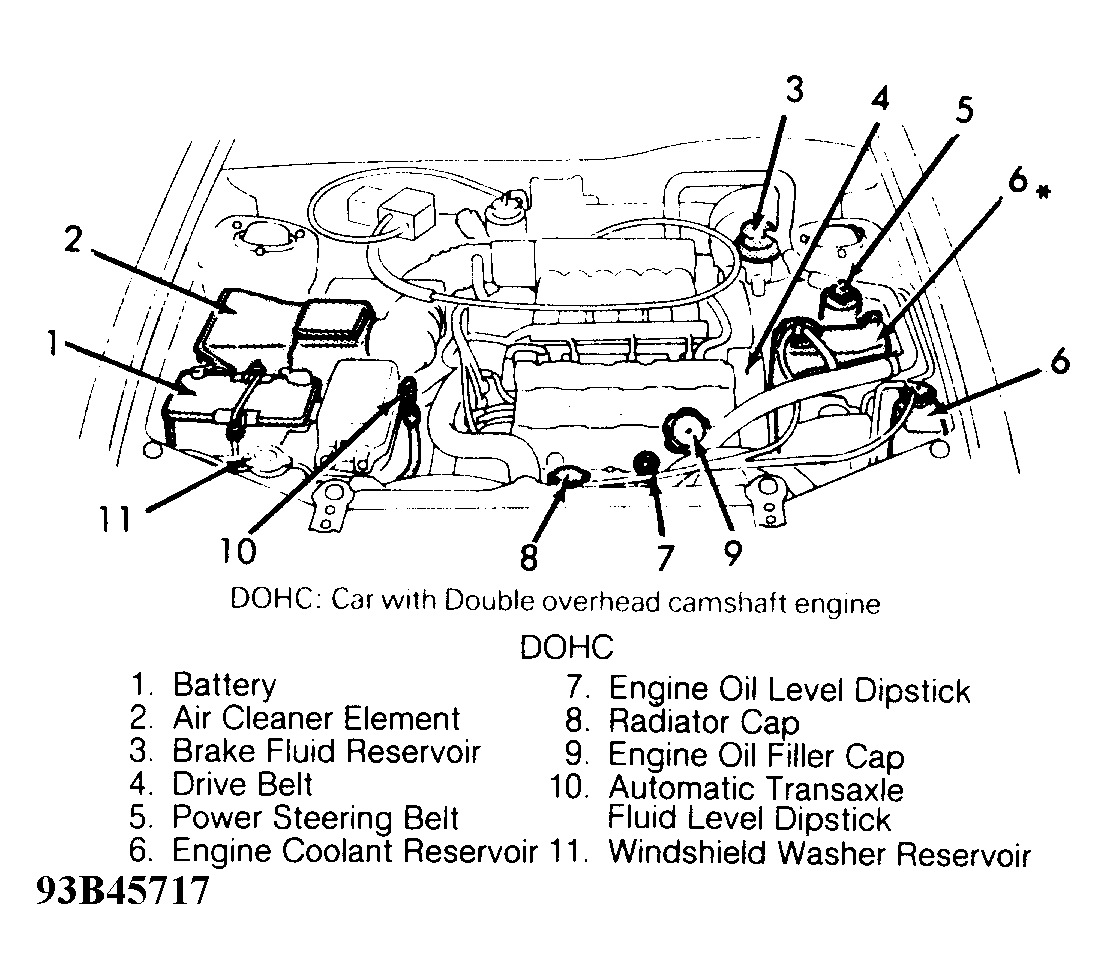

Fig 2: Service Point Locations (DOHC Engine)
G93B45717Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
