Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|

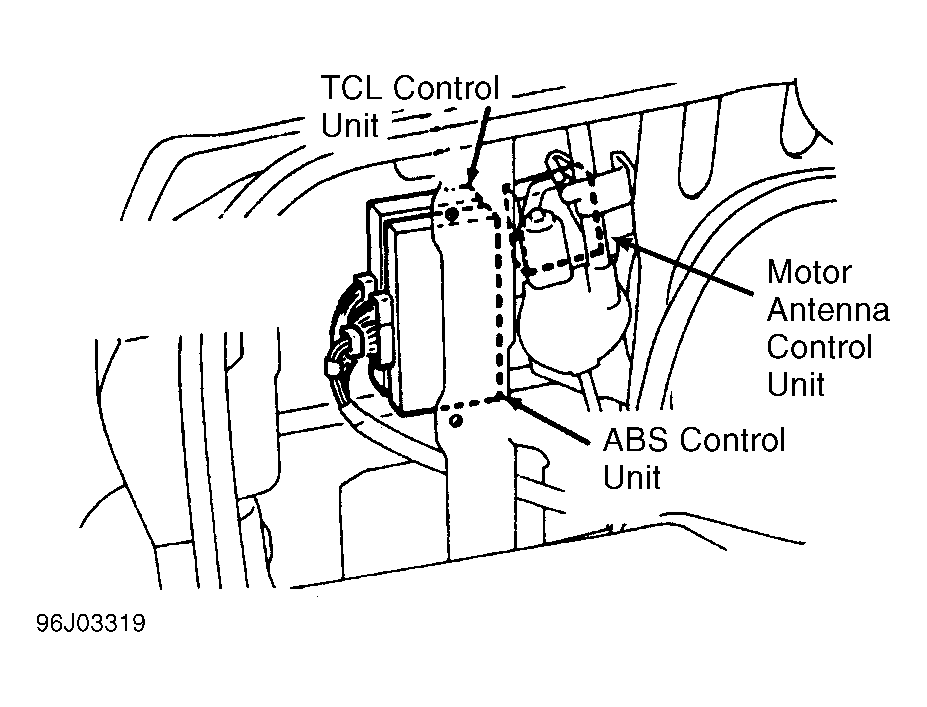

| ABS Control Unit | On left side of luggage compartment. See Figure . |

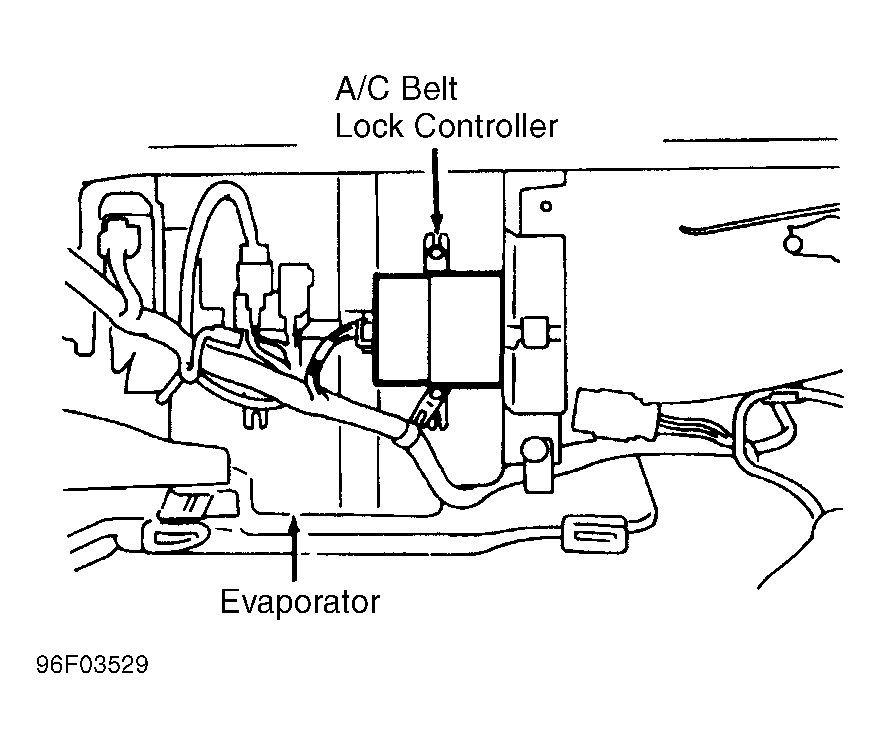

| A/C Belt Lock Controller | Mounted on evaporator case. See Figure . |

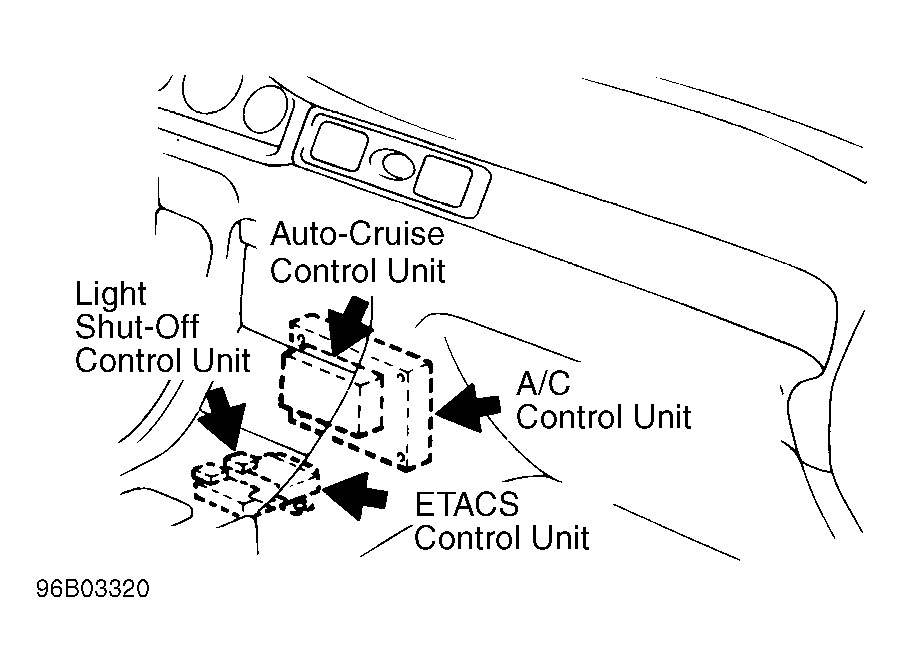

| A/C Control Unit | Behind center of dash, forward of center console. See Figure . |
| Auto-Cruise Control Unit | Under center of dash, behind center console. See Figure . |
| ELC 4-Speed Automatic Transaxle Control Module | Behind lower center of dash. |
| Electronic Power Steering (EPS) Control Unit | Behind ashtray, on center of dash. |
| Electronic Time & Alarm Control System (ETACS) Control Unit | Behind center of dash, forward of center console. See Figure . |

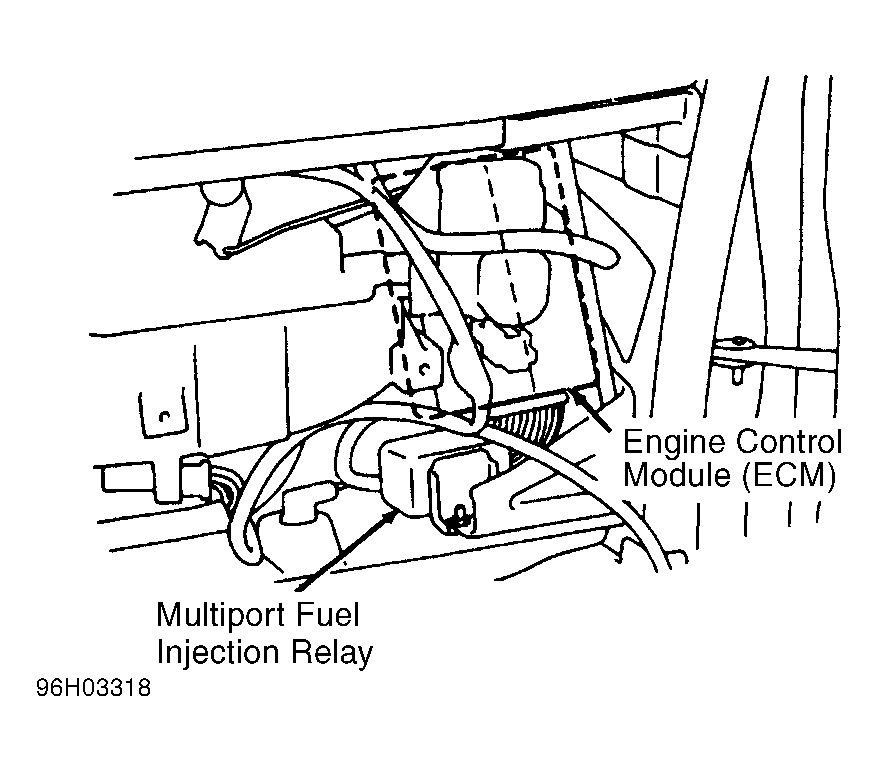

| Engine Control Module (ECM) | Behind right side of dash. See Figure . |
| Keyless Entry Control Unit | Under left side of rear shelf. |
| Lamp Shut-Off Control Unit | Under center of dash, near ETACS control unit. See Figure . |
| Motor Antenna Control Unit | On left side of luggage compartment. See Figure . |
| Power Seat Control Unit | Under driver's seat. |
| SRS Diagnosis Unit | Below rear of center console. |
| Sunroof Control Unit | Under headliner, near passenger-side sun visor. |
| Traction Control (TCL) Control Unit | On left side of luggage compartment. See Figure . |
