Blower Motor Switch

WARNING: This page is about a different car, the 1996 Dodge Stealth and 1995 Dodge Stealth. However, it is still accessible from the selected car via links, so may be relevant.

Using ohmmeter, check continuity between indicated terminals. See BLOWER MOTOR SWITCH CONTINUITY table. See Fig 1.

BLOWER MOTOR SWITCH CONTINUITY

Switch Setting	Continuity Between Terminal No.
Low	1 & 8; 3 & 5
Medium-Low	1 & 8; 5 & 6
Medium-High	1, 4 & 8; 2 & 5
High	1, 4 & 8; 5 & 7

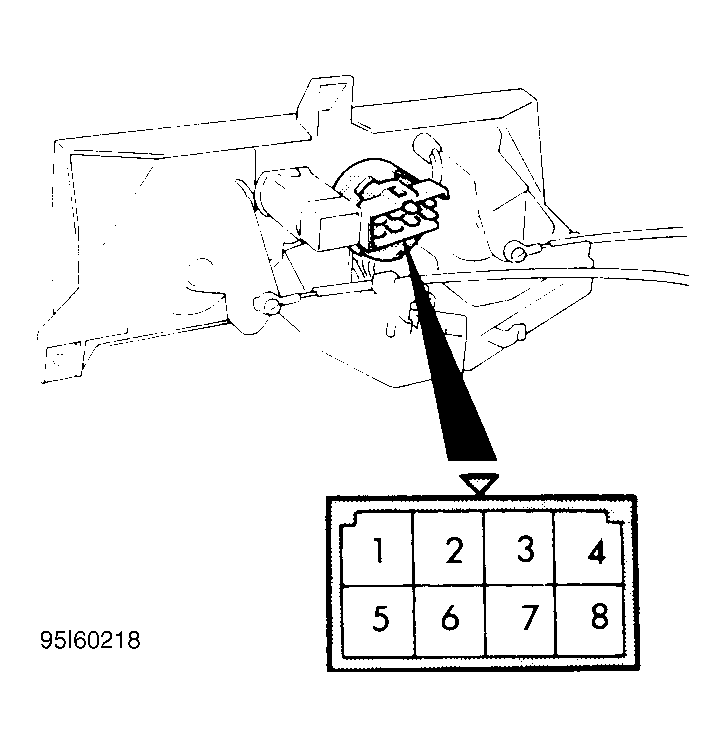

Fig 1: Identifying Blower Motor Switch Connector Terminals

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
