Blower Motor Resistor
WARNING: This page is about a different car, the 1996 Dodge Stealth and 1995 Dodge Stealth. However, it is still accessible from the selected car via links, so may be relevant.

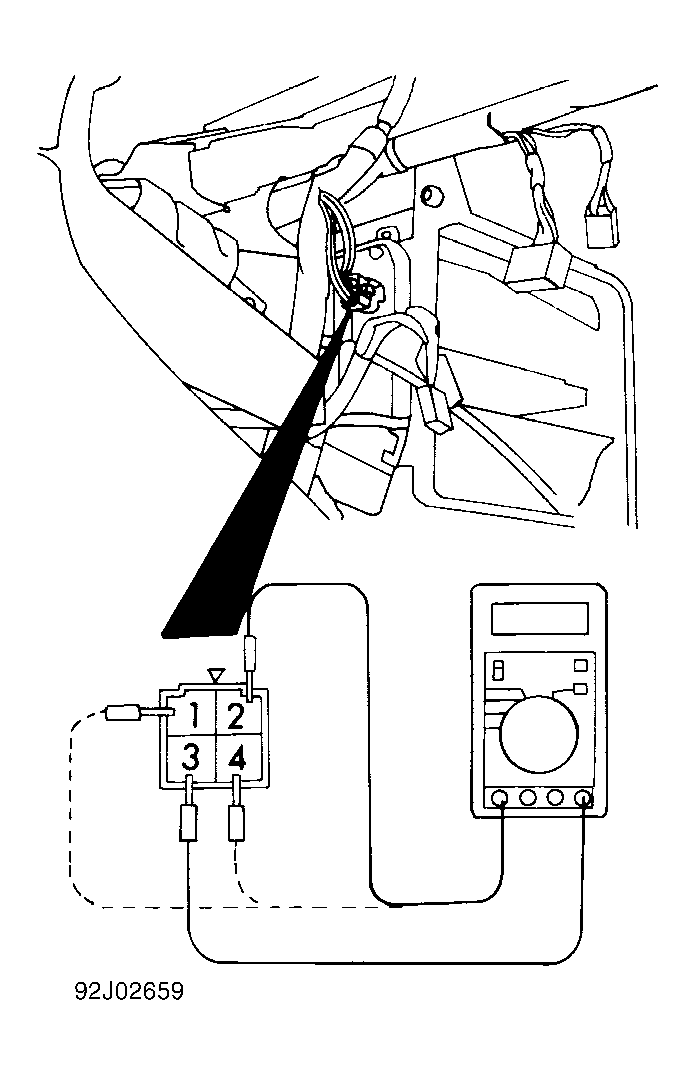

Disconnect harness connector from resistor, located behind glove box upper cover. Using ohmmeter, check resistance between indicated terminals. See BLOWER MOTOR RESISTOR RESISTANCE table. See Fig 1. If resistance is not as specified, replace resistor.
BLOWER MOTOR RESISTOR RESISTANCE
| Terminal No. | Ohms |
|---|---|
| 2 & 3 | 0.38-0.44 |
| 2 & 4 | 1.10-1.26 |
| 2 & 1 | 1.79-2.06 |
