Blower Motor Relays

WARNING: This page is about a different car, the 1996 Dodge Stealth and 1995 Dodge Stealth. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove blower motor relays from fuse/relay block and blower case. Using ohmmeter, check continuity of each relay. Check continuity between terminals No. 1 and 3. See Fig 1. Continuity should not be present.
  2. Check continuity between terminals No. 2 and 4. Continuity should be present. Connect 12-volt battery to terminals No. 2 and 4. See Fig 1. Ensure continuity exists between terminals No. 1 and 3 with battery voltage applied. If continuity is not as specified, replace defective relay.

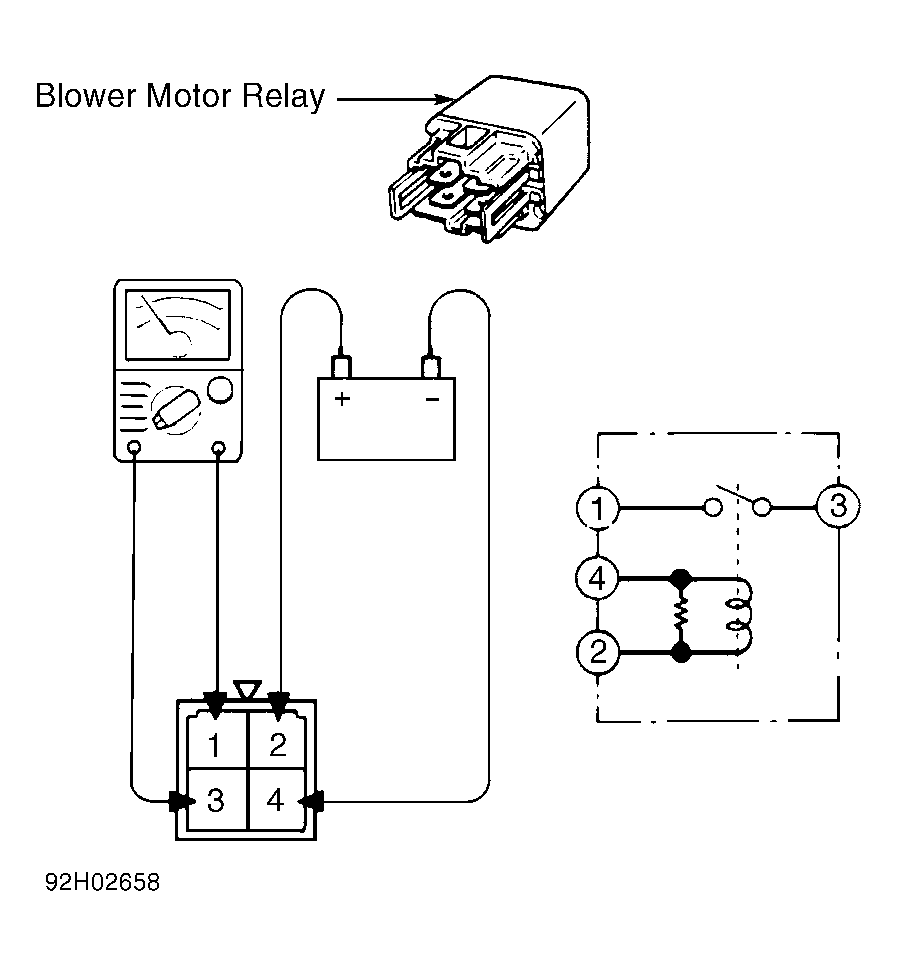

Fig 1: Identifying Blower Motor Relay Terminals
G92H02658Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
