Section 161 (Heater System): Description
WARNING: This page is about a different car, the 1996 Dodge Stealth and 1995 Dodge Stealth. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid injury from accidental air bag deployment, read and carefully follow all SERVICE PRECAUTIONS and DISABLING & ACTIVATING AIR BAG SYSTEM procedures in appropriate AIR BAG RESTRAINT SYSTEM article in ACCESSORIES/SAFETY EQUIPMENT SECTION.

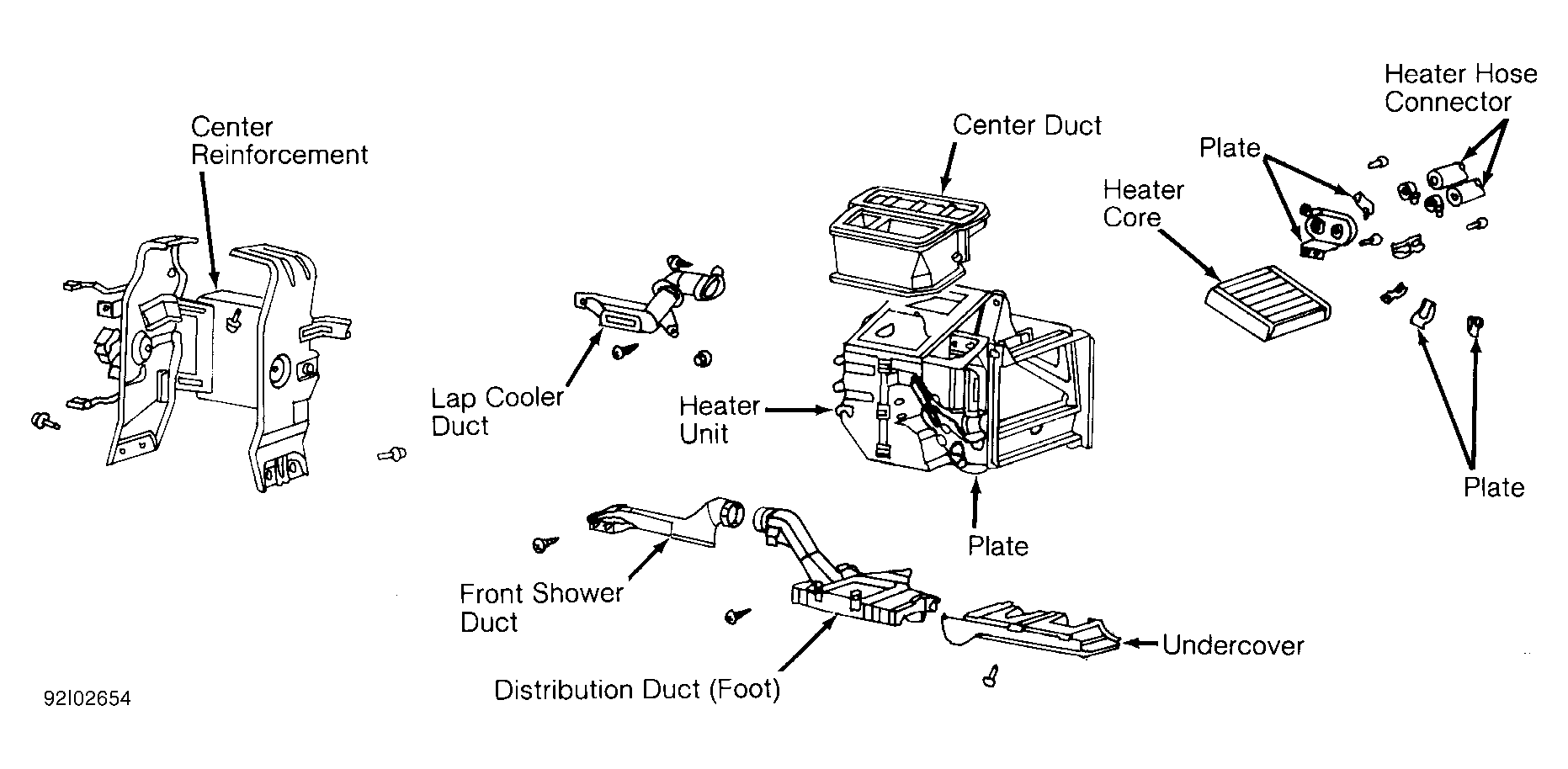

Heater assembly is located in passenger compartment. A cable operated blend-air door is used to regulate heat output. Heater assembly contains heater core, heater control valve, air ducts, blower motor and intake ducts. See Figure.
