Center Differential Lock Detection Switch (Montero)

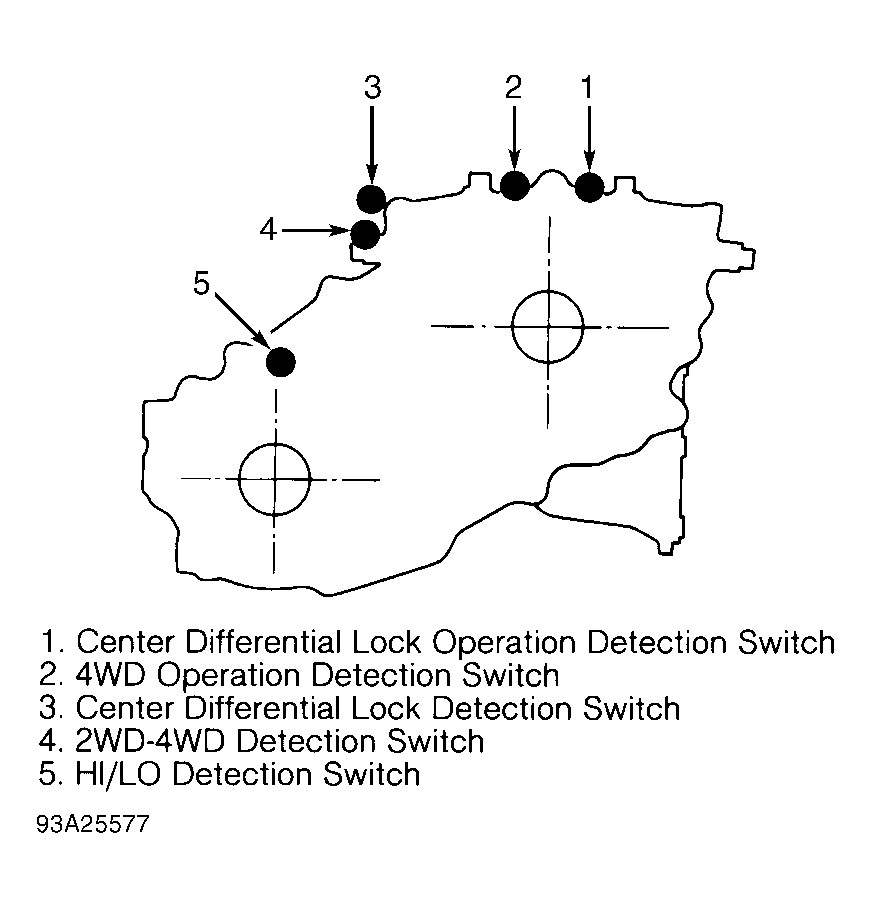

Check continuity between terminals at Brown wire connector terminal on side of transfer case. With transfer control lever in "4H" position, there should be no continuity. With transfer control lever in "4HLc" position, there should be continuity. See Figure.
