Interlock Switch Adjustment
- Check and adjust pedal height and free play. See CLUTCH PEDAL HEIGHT & FREE PLAY . See Figure-4

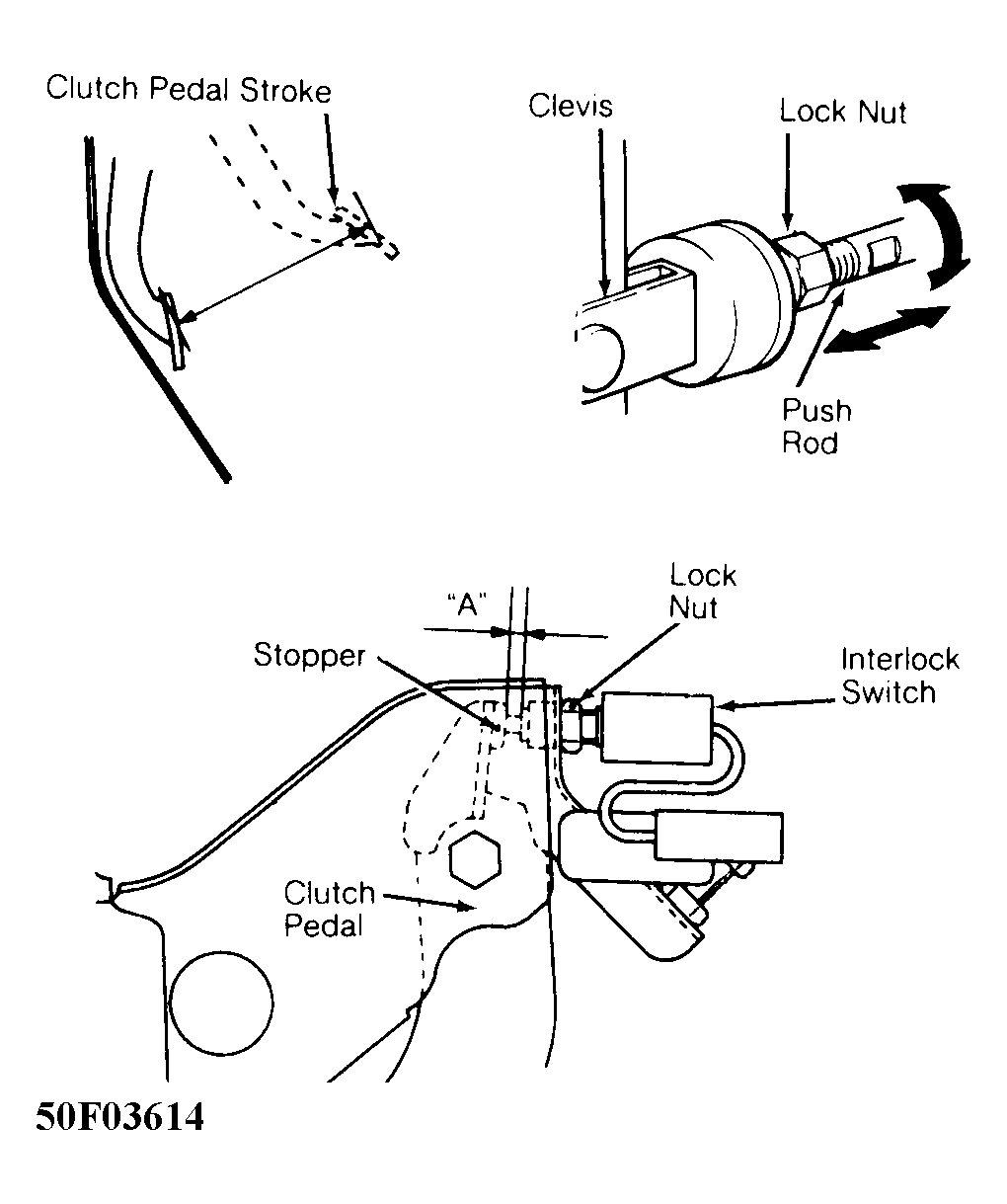

. Measure clutch pedal full stroke. Full stroke should be 5.72" (145 mm). If full stroke is out of tolerance, adjust by turning push rod. See Fig 1.
- Measure clearance "A" with clutch pedal fully depressed (full stroke). See Fig 1. Clearance "A" should be .177-.217" (4.5-5.5 mm). If clearance is out of tolerance, adjust by loosening interlock switch lock nut and turning interlock switch in appropriate direction. When clearance "A" is correct, tighten lock nut to 115 INCH lbs. (13 N.m).
