Electrical Component Locator: Miscellaneous
MISCELLANEOUS LOCATION
| Component | Location | |
|---|---|---|
| Blower Motor Resistor | On blower motor housing. | |
| Check/Test Connectors | ||

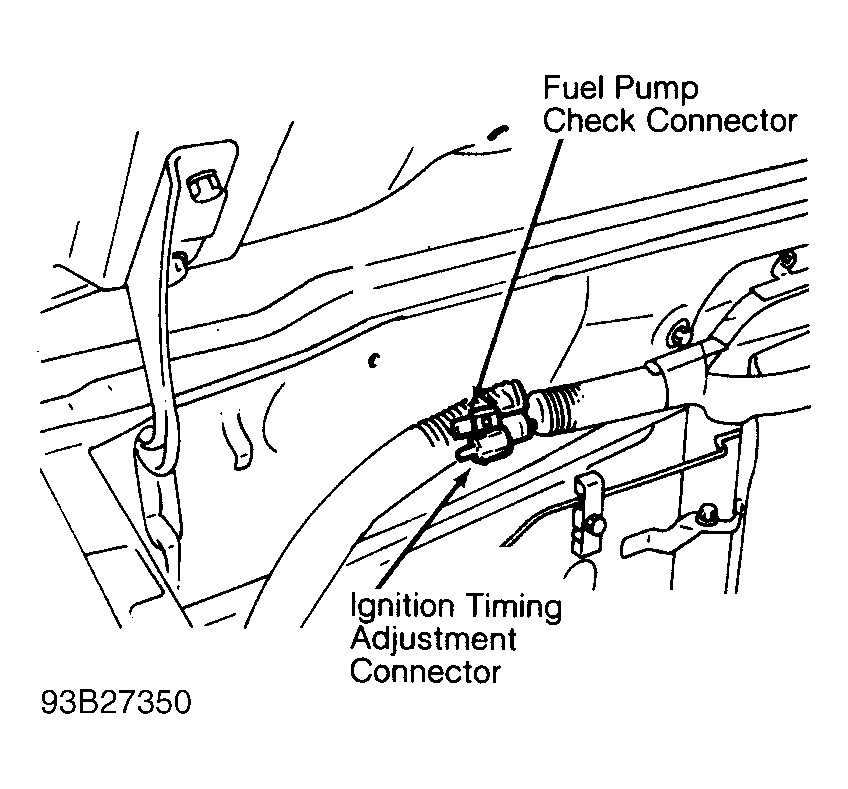

| Fuel Pump Check Connector | Taped to wiring harness, on right side of firewall. See Figure . | |
| Ignition Timing Adjustment Conector | Taped to wiring harness, on right side of firewall. See Figure . | |
| RPM/Tach (DOHC) Check Connector | Taped to wiring harness, on right side of firewall. | |
| Data Link Connector (DLC) | Behind left side of dash, nearfuse/relay block. See Figure . | |
| Diodes | ||
| ABS Circuit | On wiring harness, behind center console. | |
| 4WD Active Suspension | On wiring harness, behind left side of dash. | |
| Maintenance Reminder Light Reset | Behind instrument panel. | |
| Radio Noise Capacitor/Filter | Mounted on ignition coil bracket. | |
