Home >> Mitsubishi >> 1994 >> Montero LS, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Seats >> Component Testing >> Power Seat Switch

Power Seat Switch

For power seat switch test procedures, see Fig 1 .

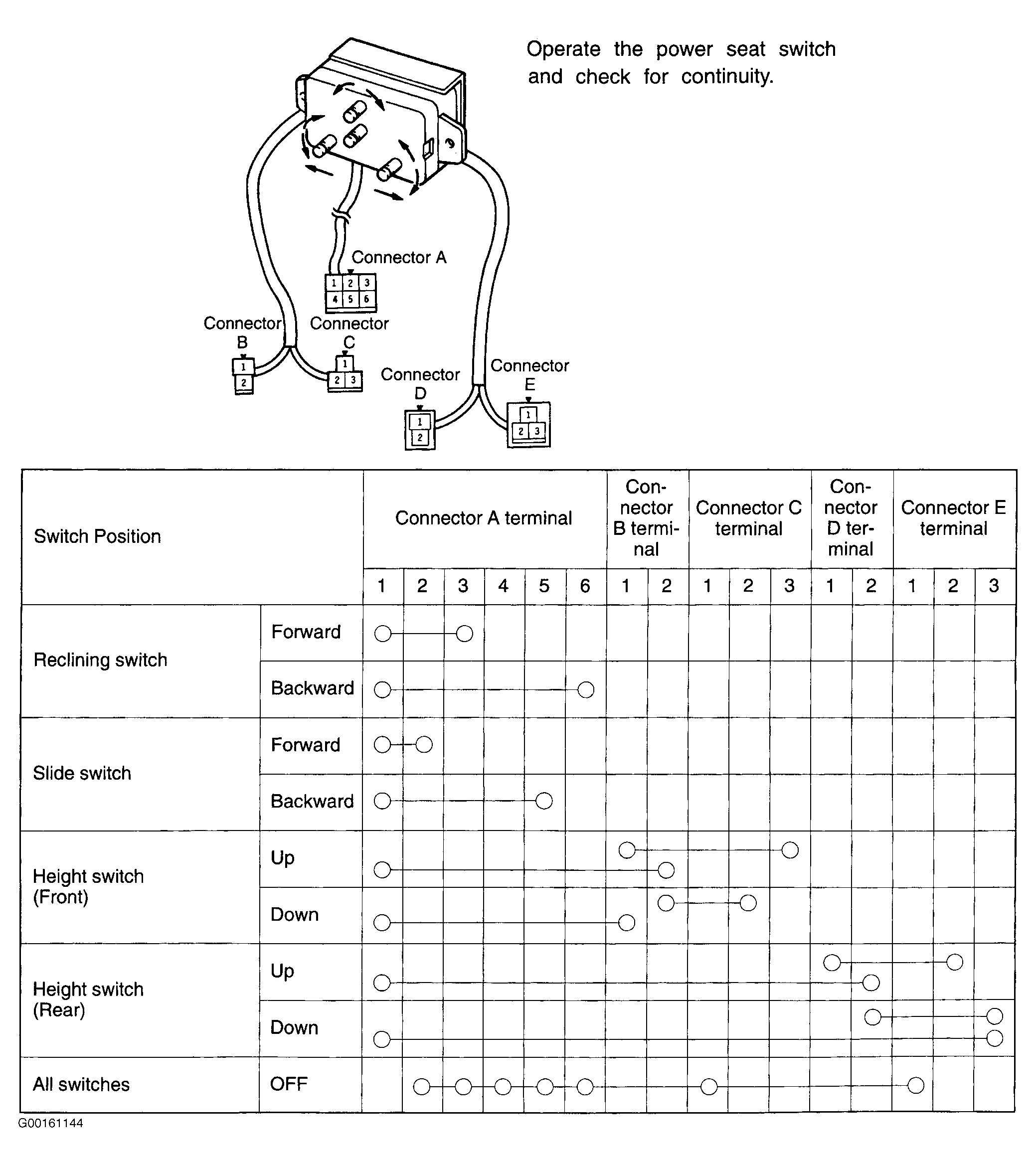

Fig 1: Testing Power Seat Switch

G00161144

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
