Steering Effort Check

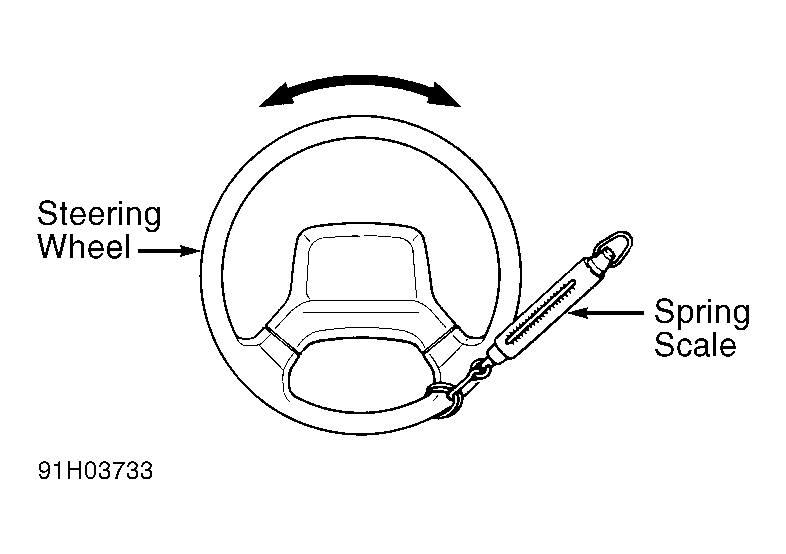

- Place vehicle on flat surface, with steering wheel in straight-ahead position. Start engine. Ensure idle speed is 900-1100 RPM. Attach a spring scale to outer rim of steering wheel. See Fig 1
. Measure force required to turn steering wheel left and right in a range of 1.5 turns.
- Standard steering wheel turning force is 7.6 lbs. (34 N) or less, with a fluctuation allowance of 1.1 lbs. (5.9 N) or less. Ensure there is no significant fluctuation in turning force measurements. If measured force exceeds standard value, see SYMPTOM DIAGNOSTIC TESTS.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
