Removal & Installation: Installation

1. Position transmission shifter in Neutral and transfer case lever in "2H" position. Install neutral return plungers and springs in holes on top of adapter. Tighten plug until it is flush with adapter surface. Cover plug threads with sealant.
2. Coat inside of change shifter with grease. Ensure change shifter pin protrudes 1/8" above change shifter when installed. Mount detent plunger spring and install plug (if equipped). To complete installation, reverse removal procedure. Fill transfer case with API GL-4 or higher 75W-90 or 75W-85W gear oil.

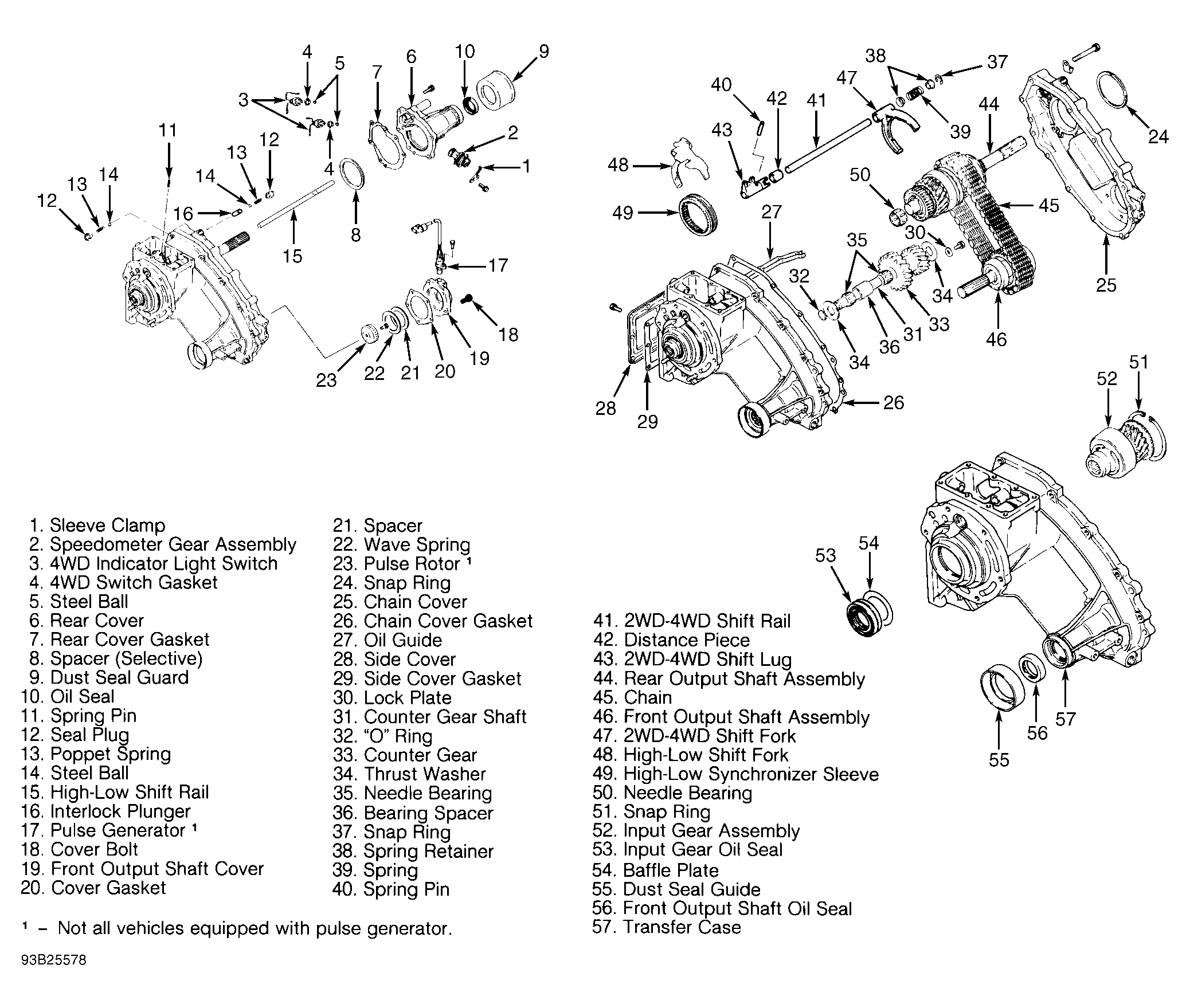

Fig 1: Exploded View Of Transfer Case (Ram-50)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

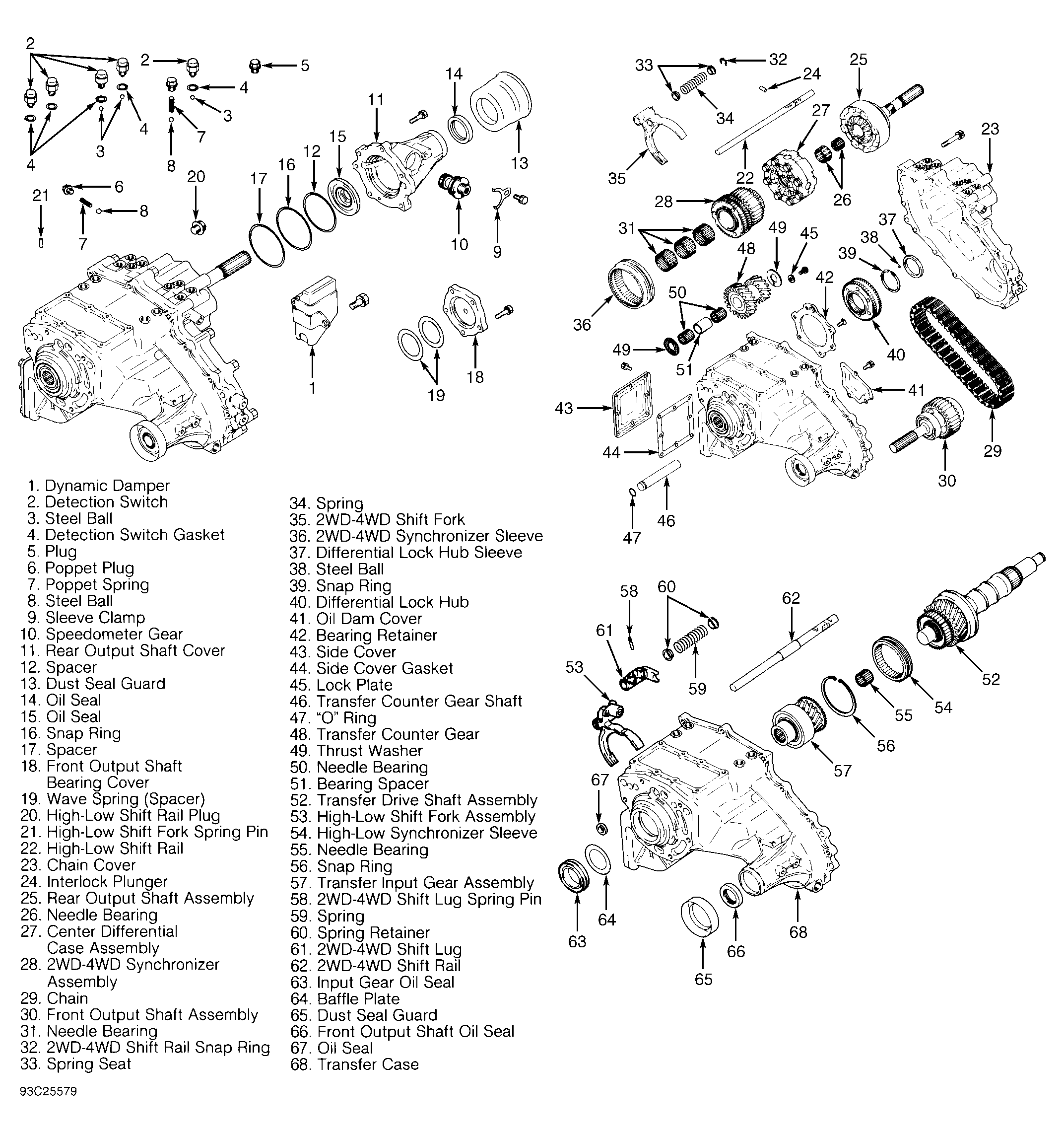

Fig 2: Exploded View Of Transfer Case (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
