Firing Order & Plug Wire Routing (2.4L SOHC)

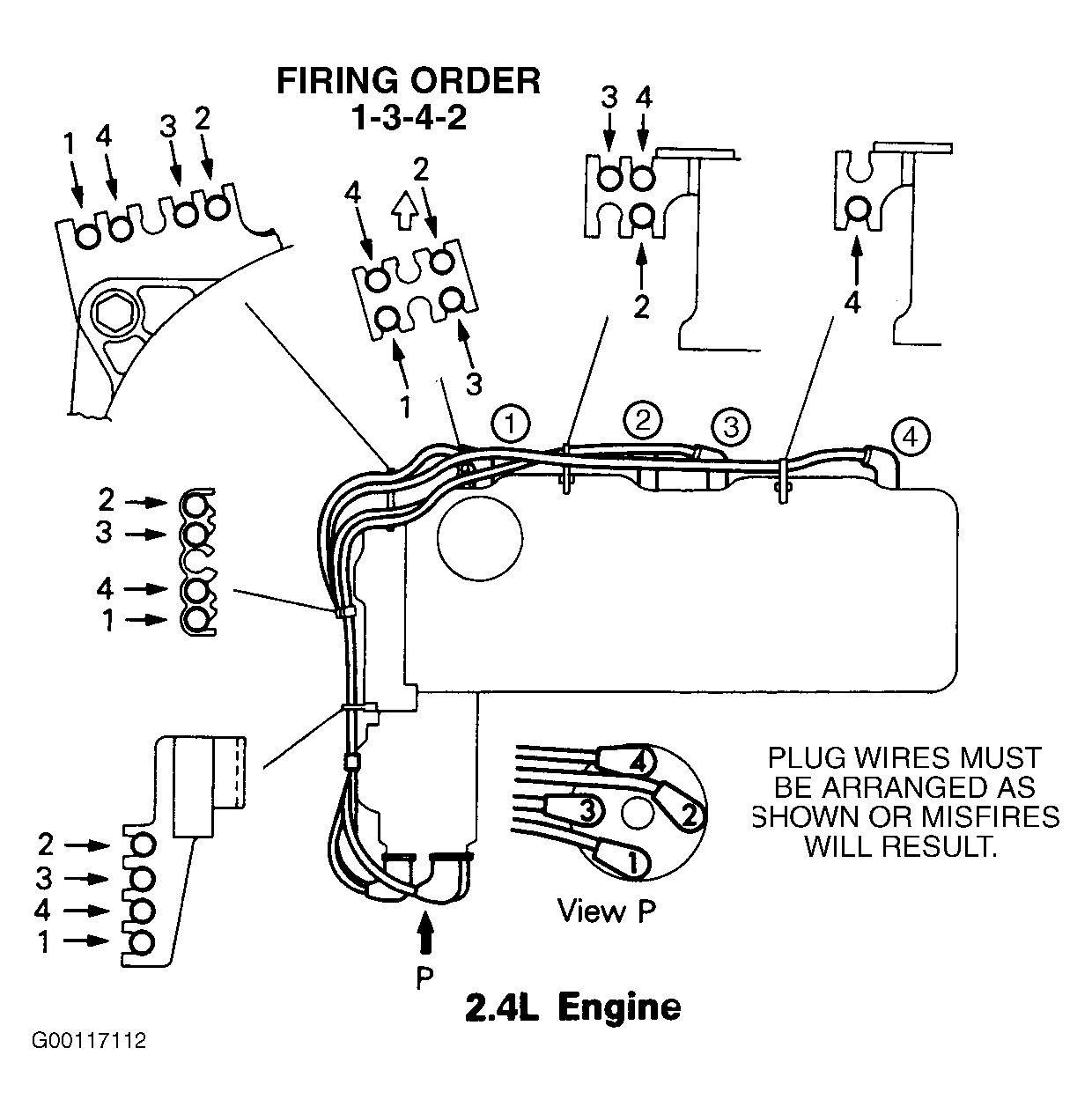

Fig 1: Firing Order & Plug Wire Routing (2.4L SOHC)

G00117112

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
