Home >> Mitsubishi >> 1993 >> Galant LS >> Repair and Diagnosis >> Engine Performance >> Wiring Diagrams >> Wiring Diagram

Wiring Diagrams: Wiring Diagram

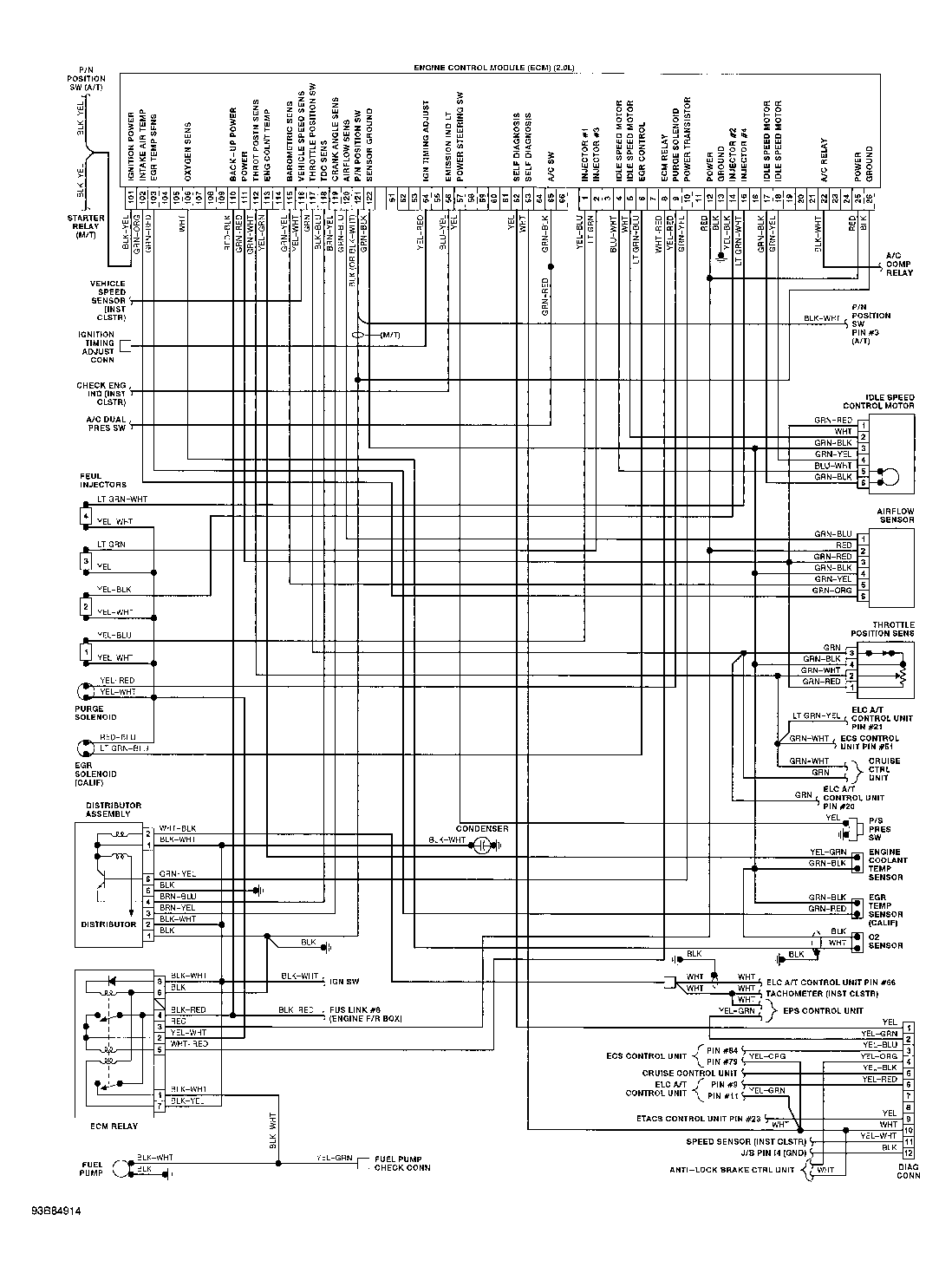

Fig 1: Wiring Diagram (2.0L)

G93B84914
