Electrical Component Locator - 2.4L Models: Switches
SWITCHES LOCATION
| Component | Location |
|---|---|
| Accelerator Pedal Switch | On top of accelerator pedal. See Figure . |
| A/C Triple Pressure Switch | In liquid line, between evaporator and receiver-drier. |
| A/T Kickdown Servo Switch | On bottom right of transaxle. |
| Brake/Stoplight Switch | On brake pedal bracket. |
| Clutch/Cruise Switch | On clutch pedal bracket. |

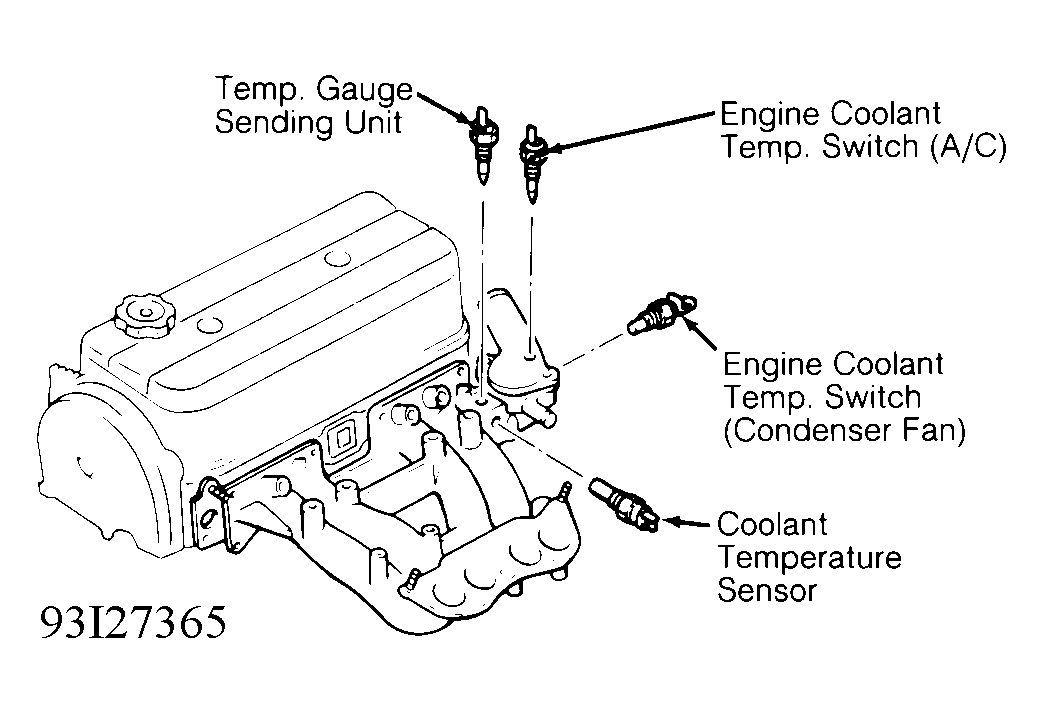

| Engine Coolant Temperature Switches (A/C System) | On cylinder head, near thermostat housing. See Figure . |
| Engine Coolant Temperature Switches (Condenser Fan) | On cylinder head, near thermostat housing. See Figure . |
| Idle Switch (2.4L) | Integral with TPS. See Figure . |
| Inhibitor Switch (2.4L) | On right side of transaxle. See Figure . |
| Oil Pressure Switch | On engine block, near oil filter. |
| PSPS (2.4L) (Power Steering Pressure Switch) | In power steering pump assembly. See Figure . |
| Seat Belt Switch | On driver's seat belt buckle. |
| Sun Roof Motor Limit Switch | On sun roof motor assembly. |
