Firing Order & Plug Wire Routing (2.0L DOHC)

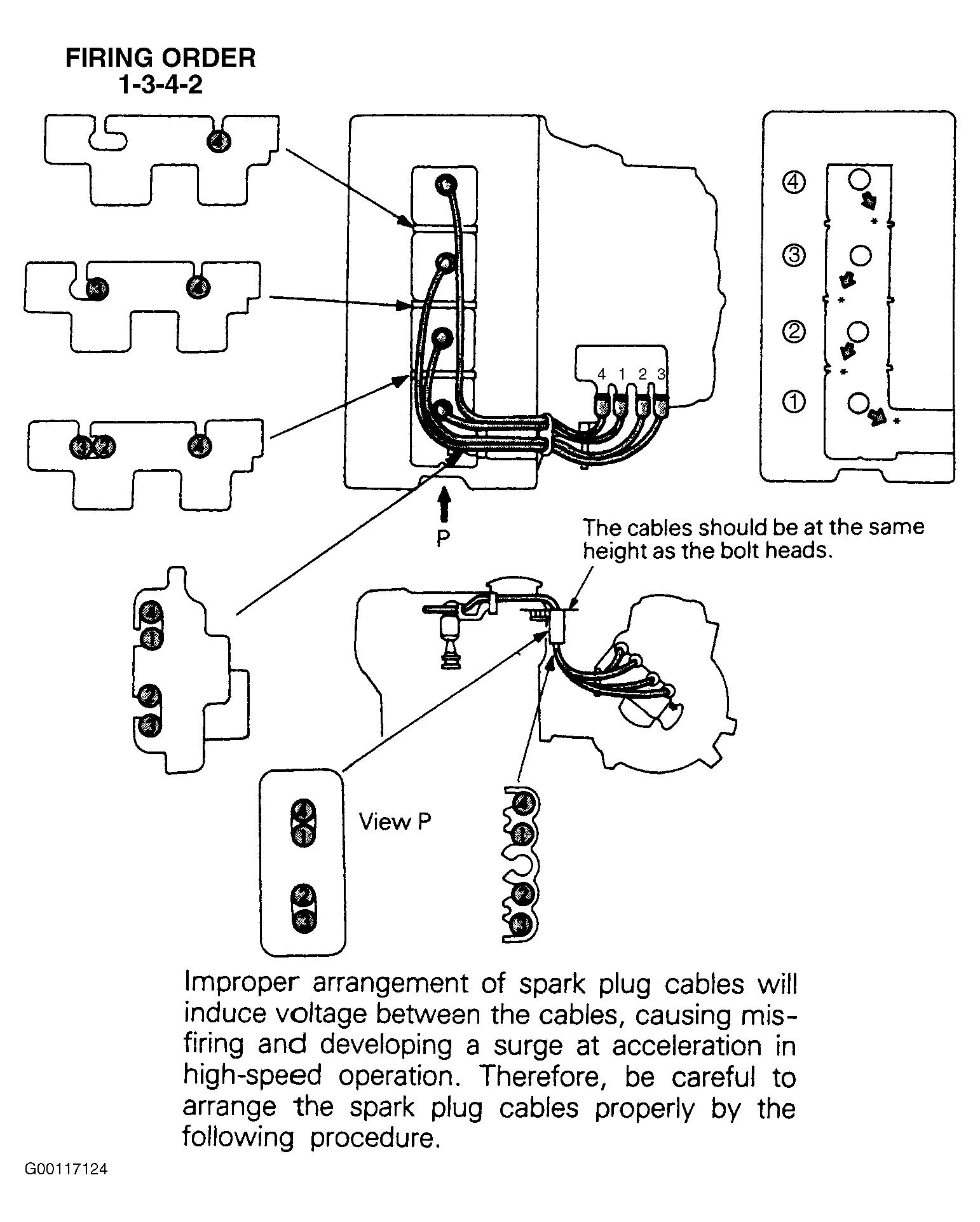

Fig 1: Firing Order & Plug Wire Routing (2.0L DOHC)

G00117124

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
