Cruise Control Cable

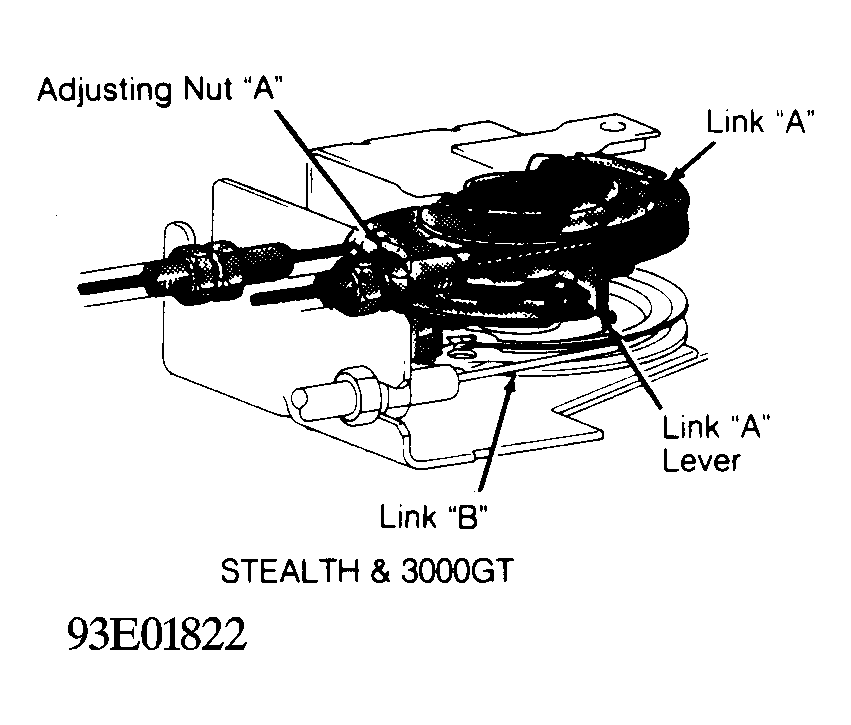

- Warm engine to normal operating temperature. Ensure cable is free of bends and folds. Remove cable protector. Loosen adjusting and lock nuts of link "A". Turn ignition on. See Fig 1
.
- Turn adjusting nut "A" to reduce free play of inner cable of cruise control cable. When lever of link "A" contacts intermediate link "B", back off adjusting nut one turn.
- Free play of inner cable should be .04-.08" (1-2 mm). Tighten lock nut. Ensure end of fixed Speed Adjusting Screw (SAS) is in contact with stopper of throttle lever.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
