Dr-2: Code 11, Oxygen Sensor Circuit

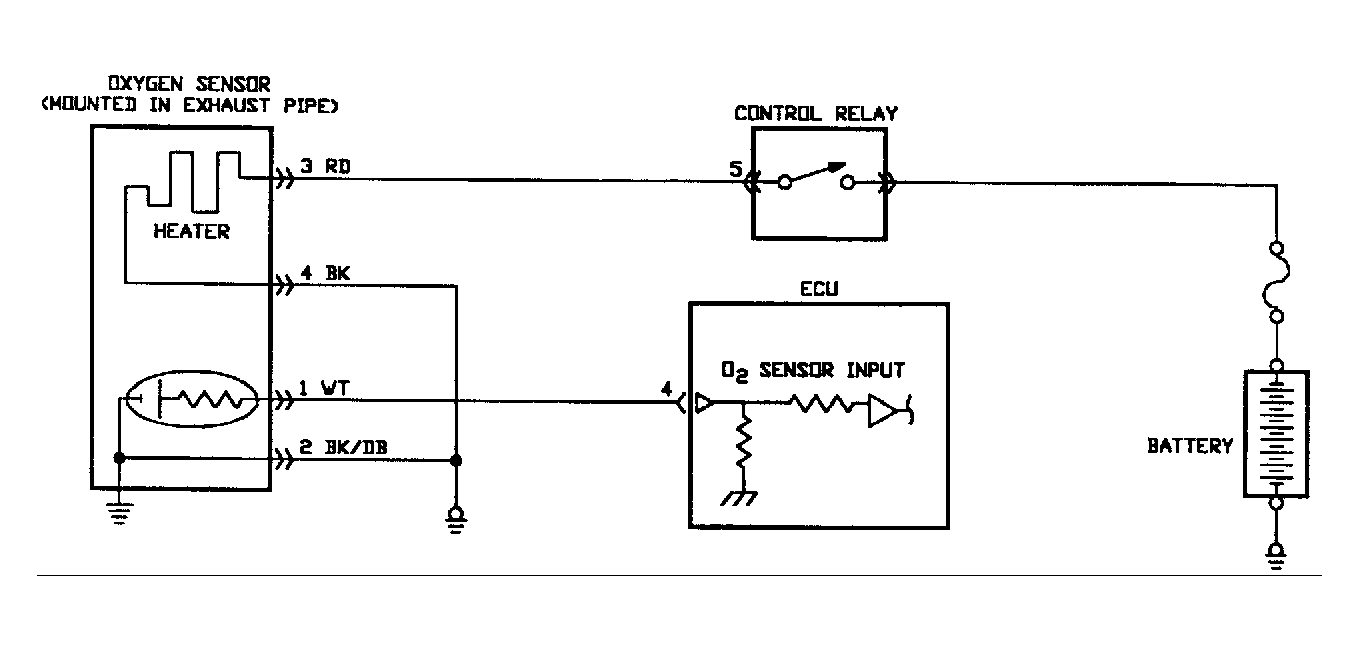

Fig 1: DR-2 Test Schematic - 3.0L Oxygen Sensor Circuit

G90C20075

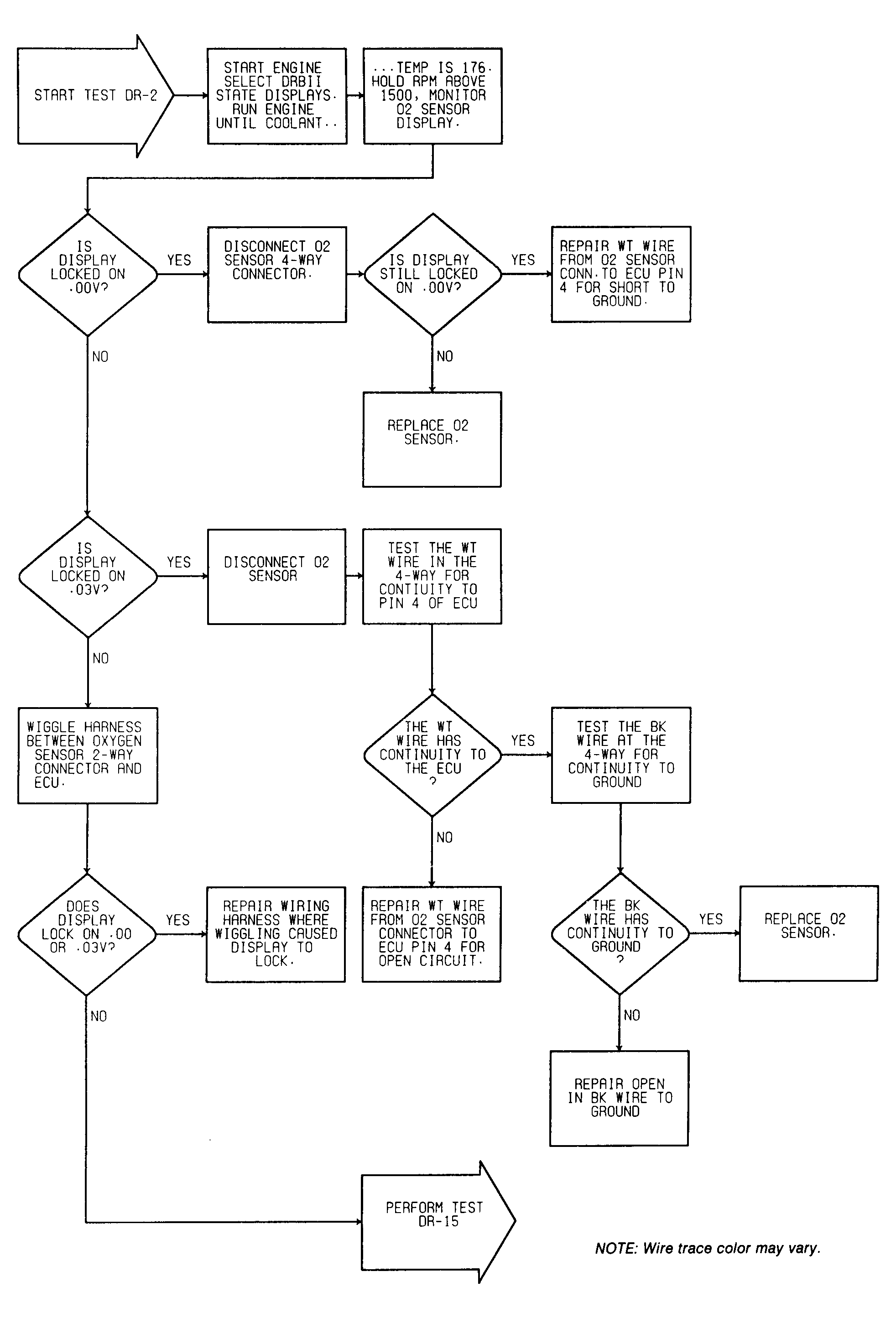

Fig 2: DR-2 Test Flow Chart - 3.0L Oxygen Sensor Circuit

G91A16477
