Dr-10: Code 24, Vehicle Speed Sensor

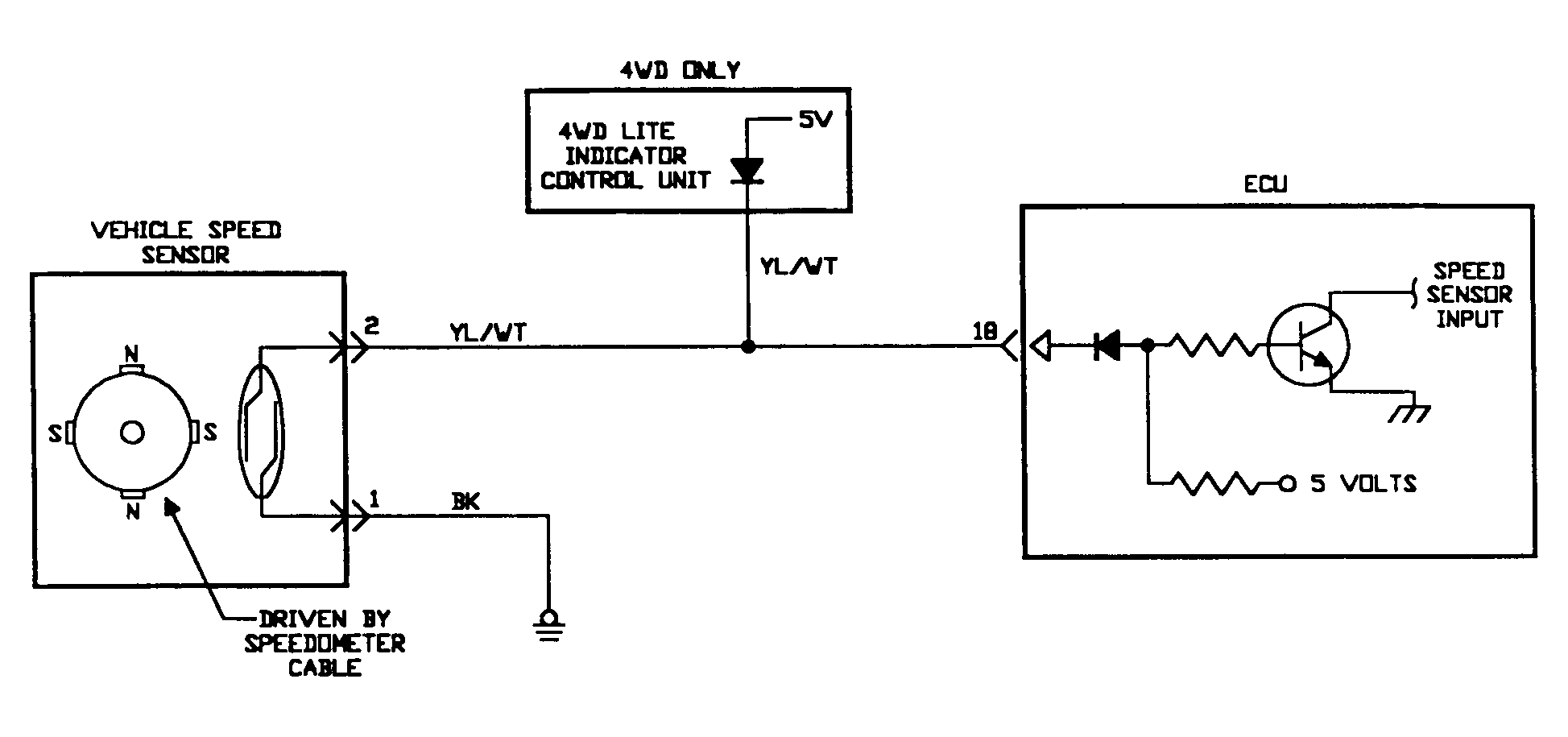

Fig 1: DR-10 Test Schematic - 3.0L Vehicle Speed Sensor

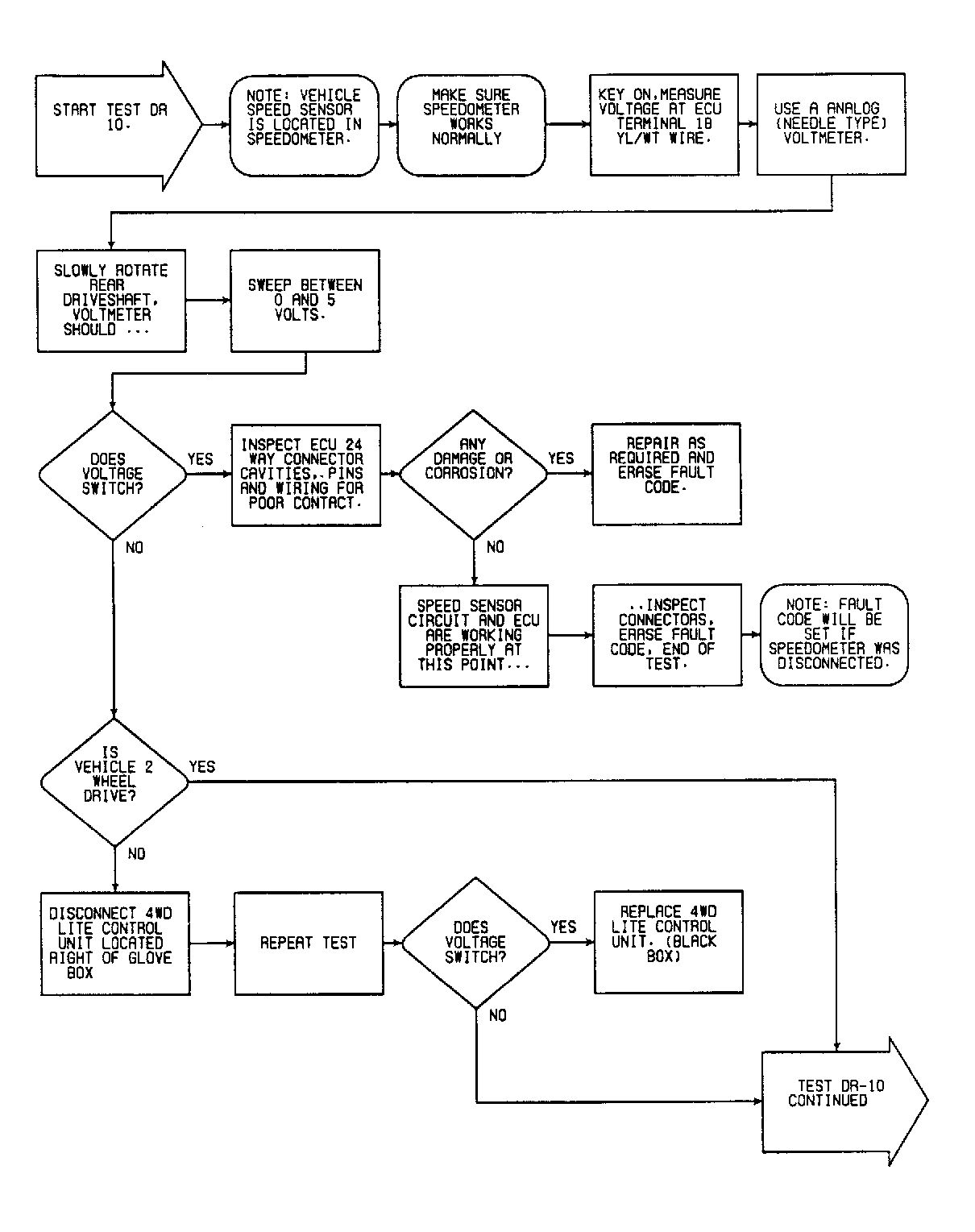

Fig 2: DR-10 Test Flow Chart - 3.0L (1 of 2) Vehicle Speed Sensor

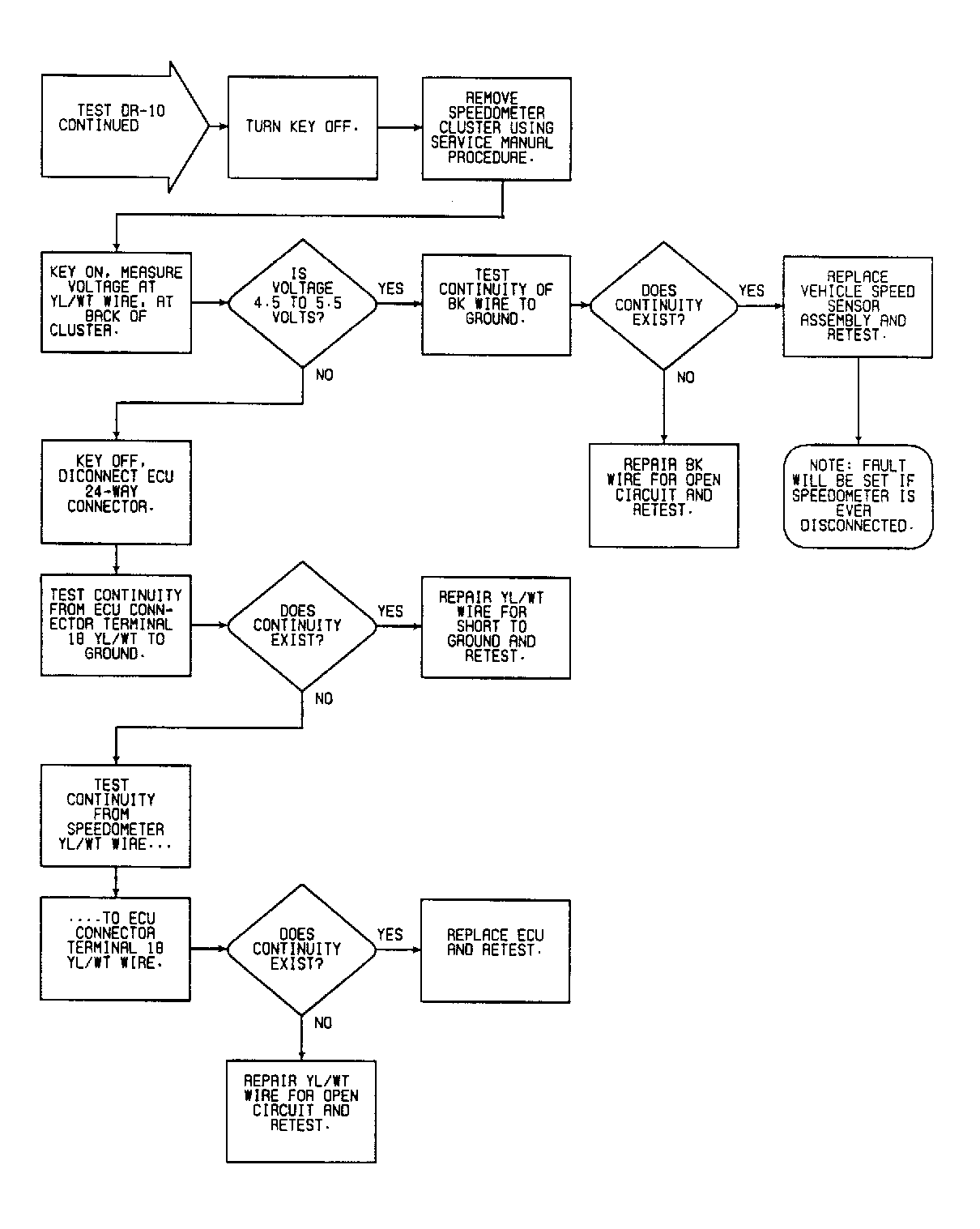

Fig 3: DR-10 Test Flow Chart - 3.0L (2 of 2) Vehicle Speed Sensor
