Dr-1: Testing For Fault Codes
Dr-1: Testing For Fault Codes

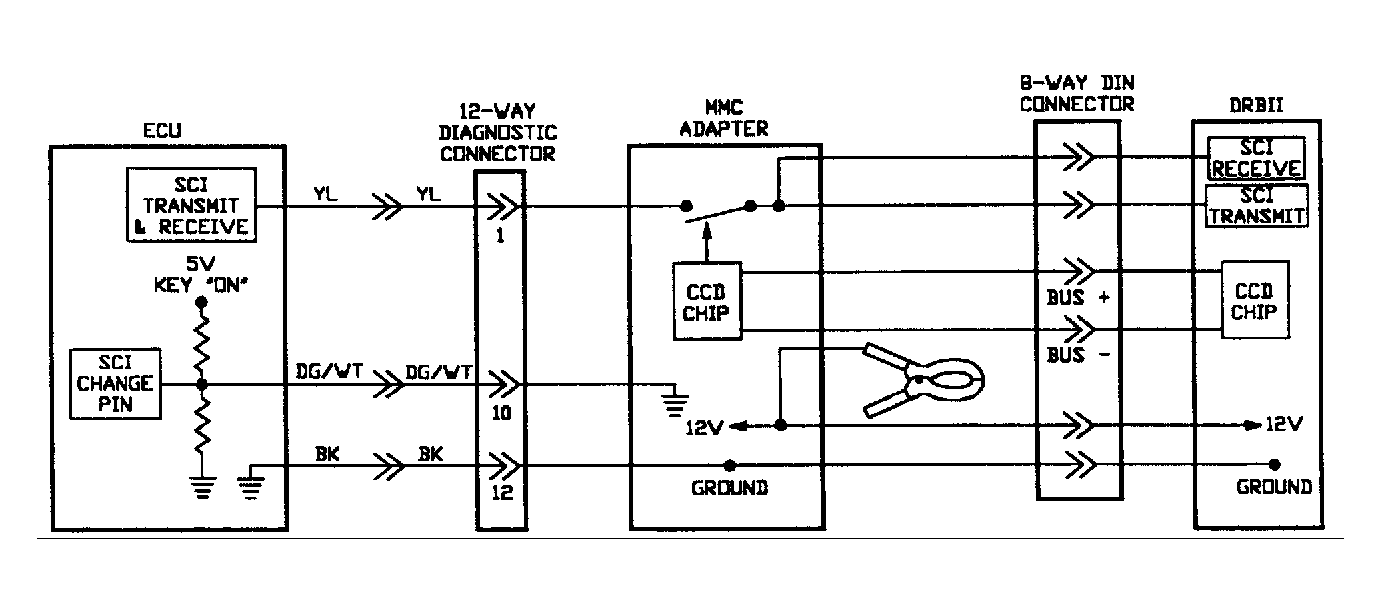

Fig 1: DR-1 Test Schematic - 3.0L Testing For Fault Codes

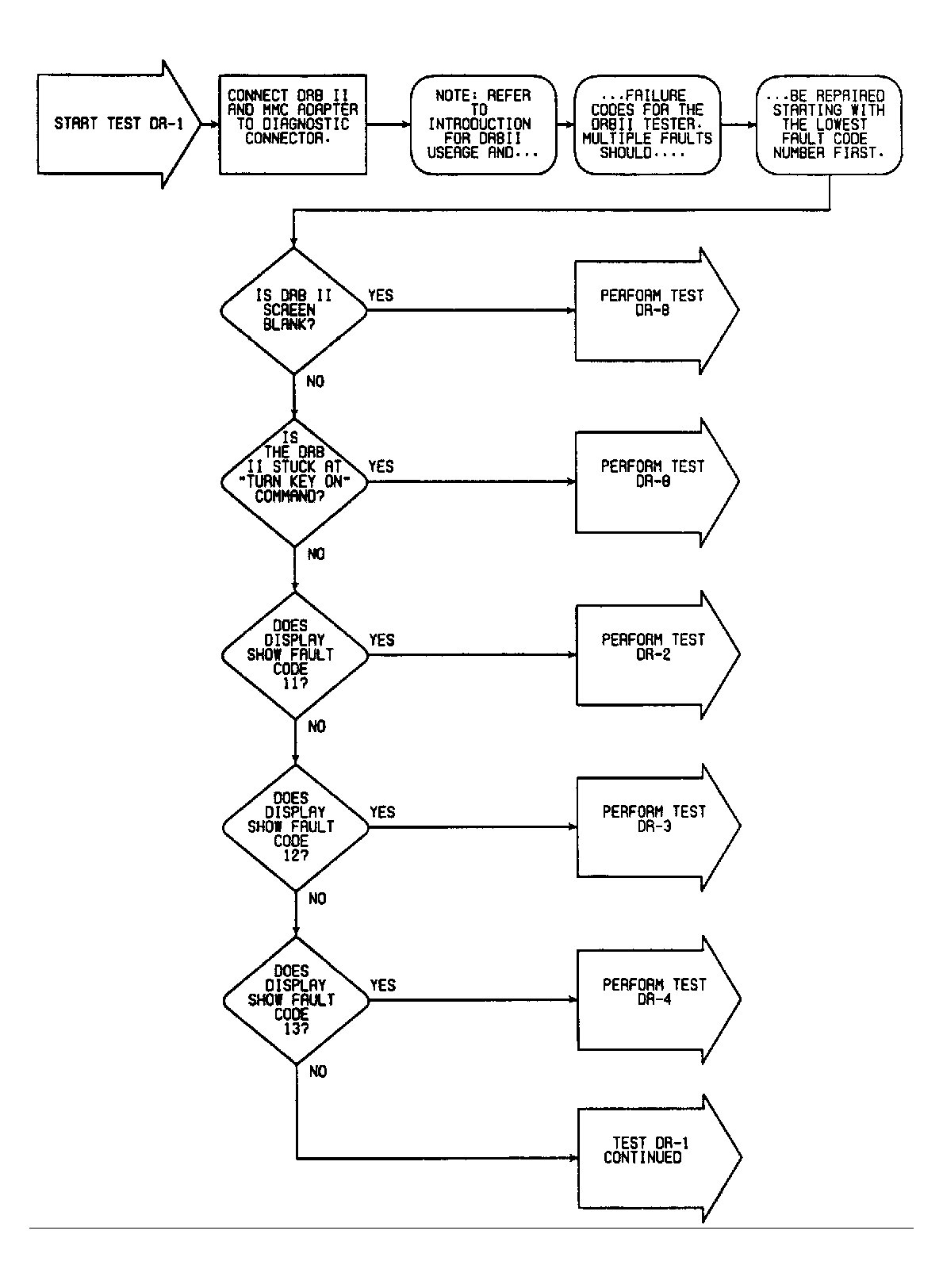

Fig 2: DR-1 Test Flow Chart - 3.0L (1 of 2) Testing For Fault Codes

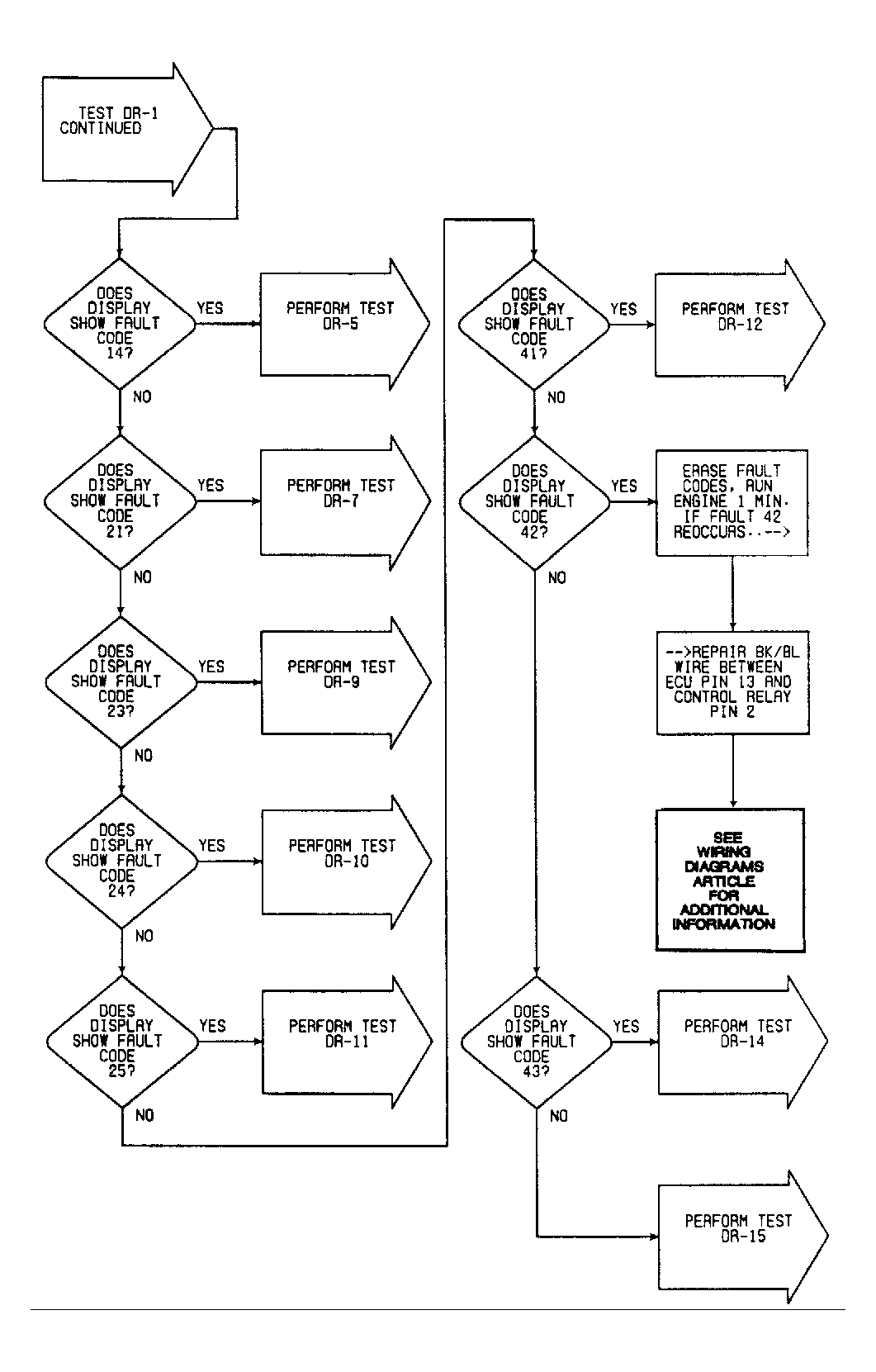

Fig 3: DR-1 Test Flow Chart - 3.0L (2 of 2) Testing For Fault Codes
