NS-3: Testing Fuel Pump Circuit

Fig 1: Test NS-3 Test Schematic - 2.4L Testing Fuel Pump Circuit
G90H19981

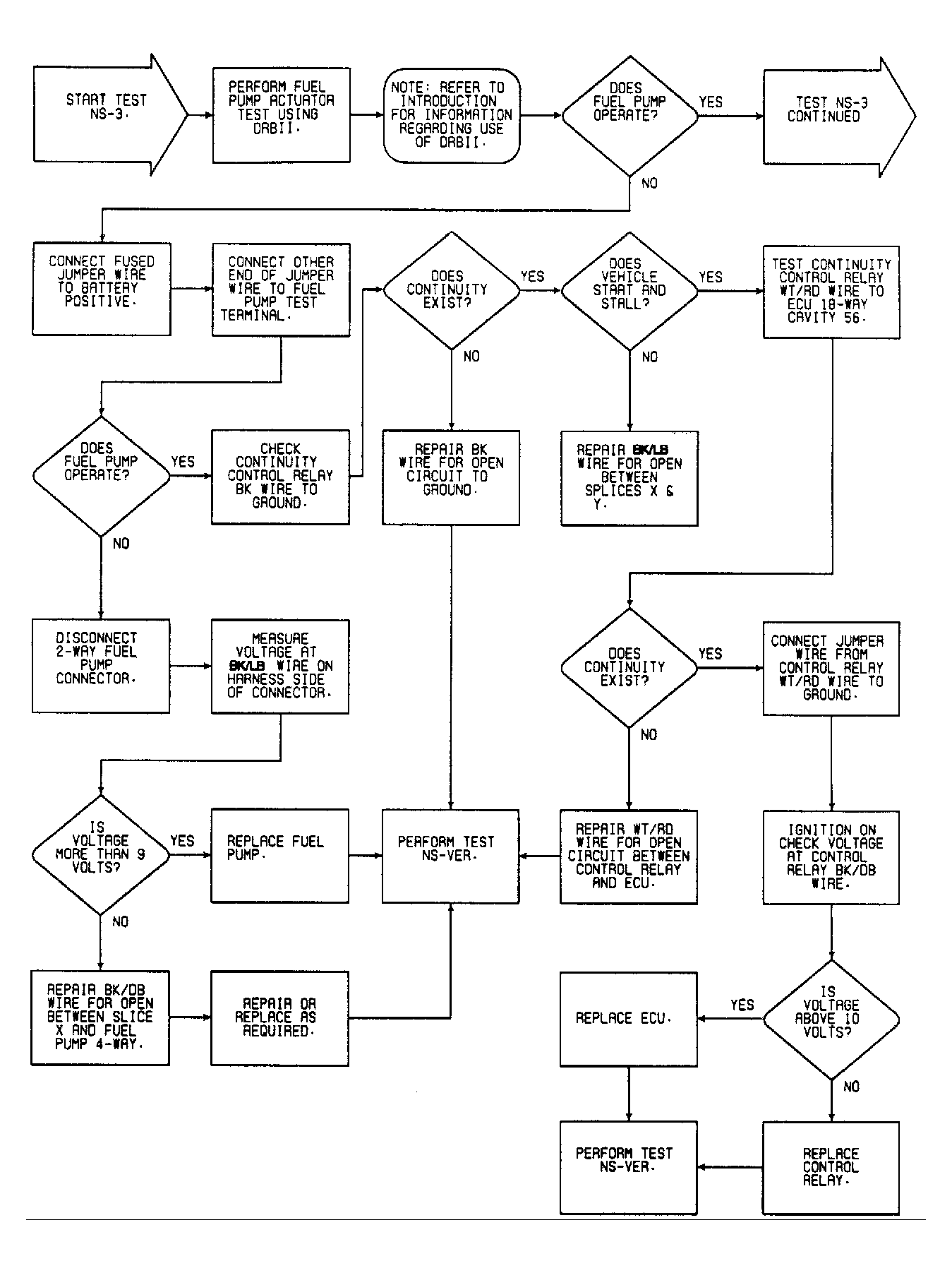

Fig 2: Test NS-3 Test Flow Chart - 2.4L (1 of 2) Testing Fuel Pump Circuit
G90I20014

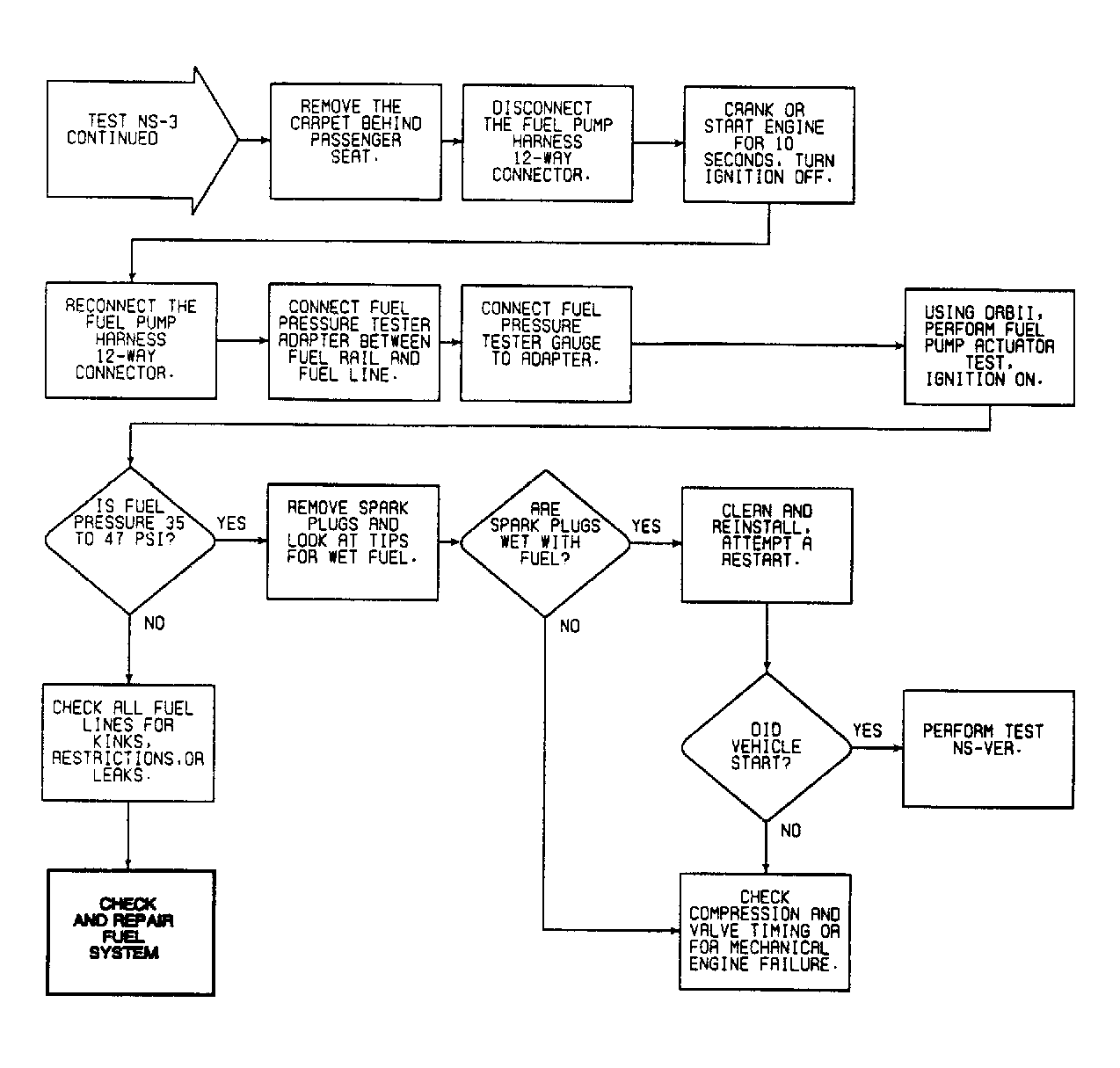

Fig 3: Test NS-3 Test Flow Chart - 2.4L (2 of 2) Testing Fuel Pump Circuit
G90J20015
