Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
Component Testing
>>
Remote Controlled Mirror Switch
Remote Controlled Mirror Switch

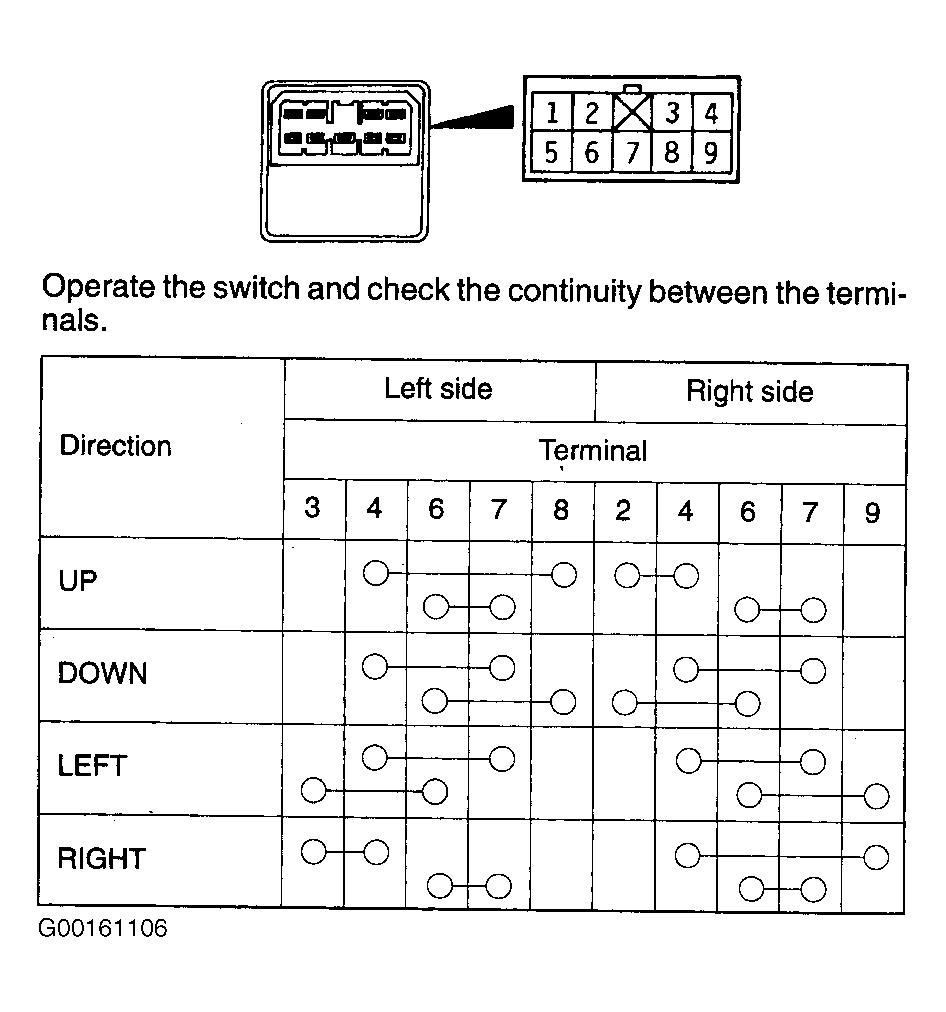

Fig 1: Testing Remote Controlled Mirror Switch
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
