Mitsubishi
>>
1992
>>
Montero Base, Standard
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
Component Testing
>>
Remote Control Mirror Assembly (With Heated Mirrors)
Remote Control Mirror Assembly (With Heated Mirrors)

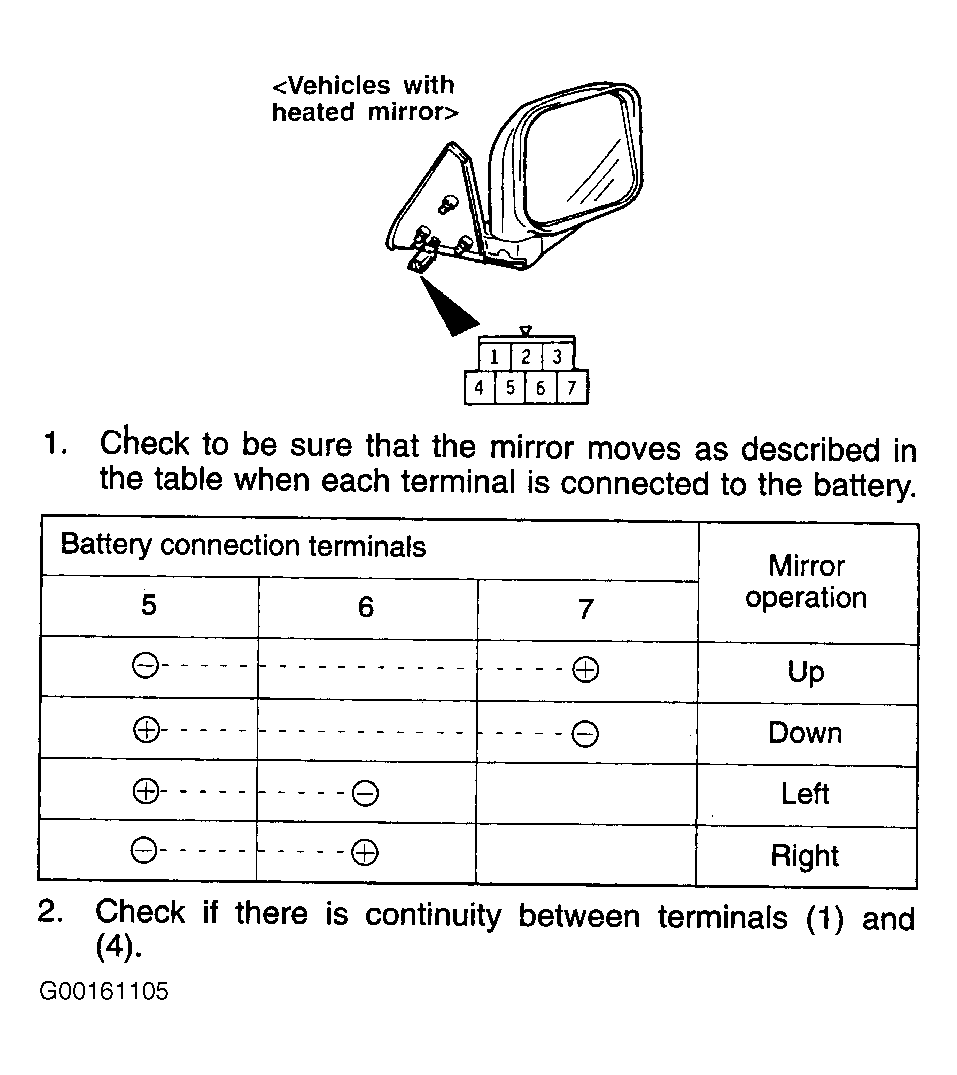

Fig 1: Testing Remote Control Mirror Assembly (With
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
