NS-5: Testing Self-Diagnostic Connector

Fig 1: Test NS-5 Test Schematic - 2.4L Testing Self Diagnostic Connector

G90C19978

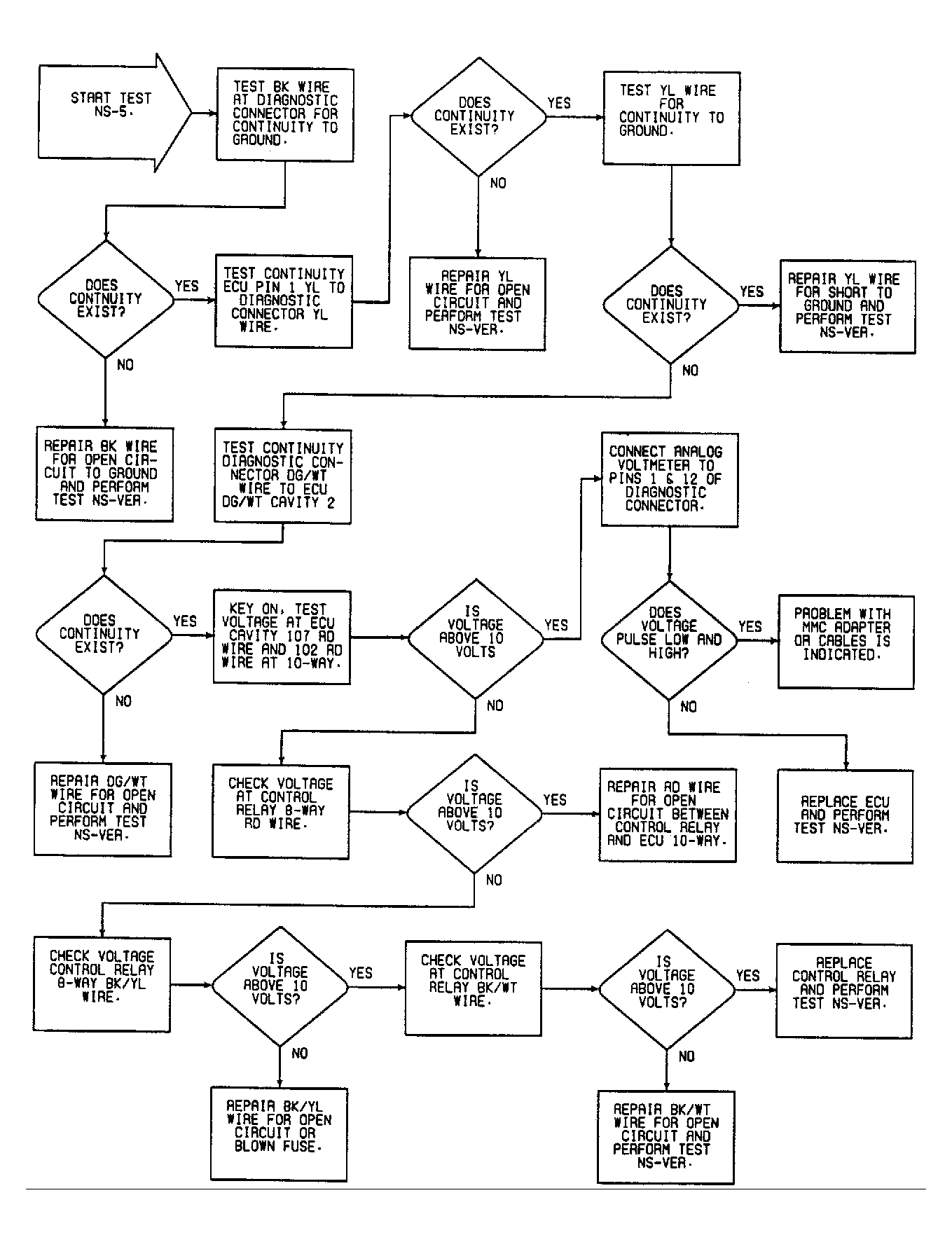

Fig 2: Test NS-5 Test Flow Chart - 2.4L Testing Self Diagnostic Connector

G90B20017
