Dr-19: No Fault Code EGR Control Test
Dr-19: No Fault Code EGR Control Test

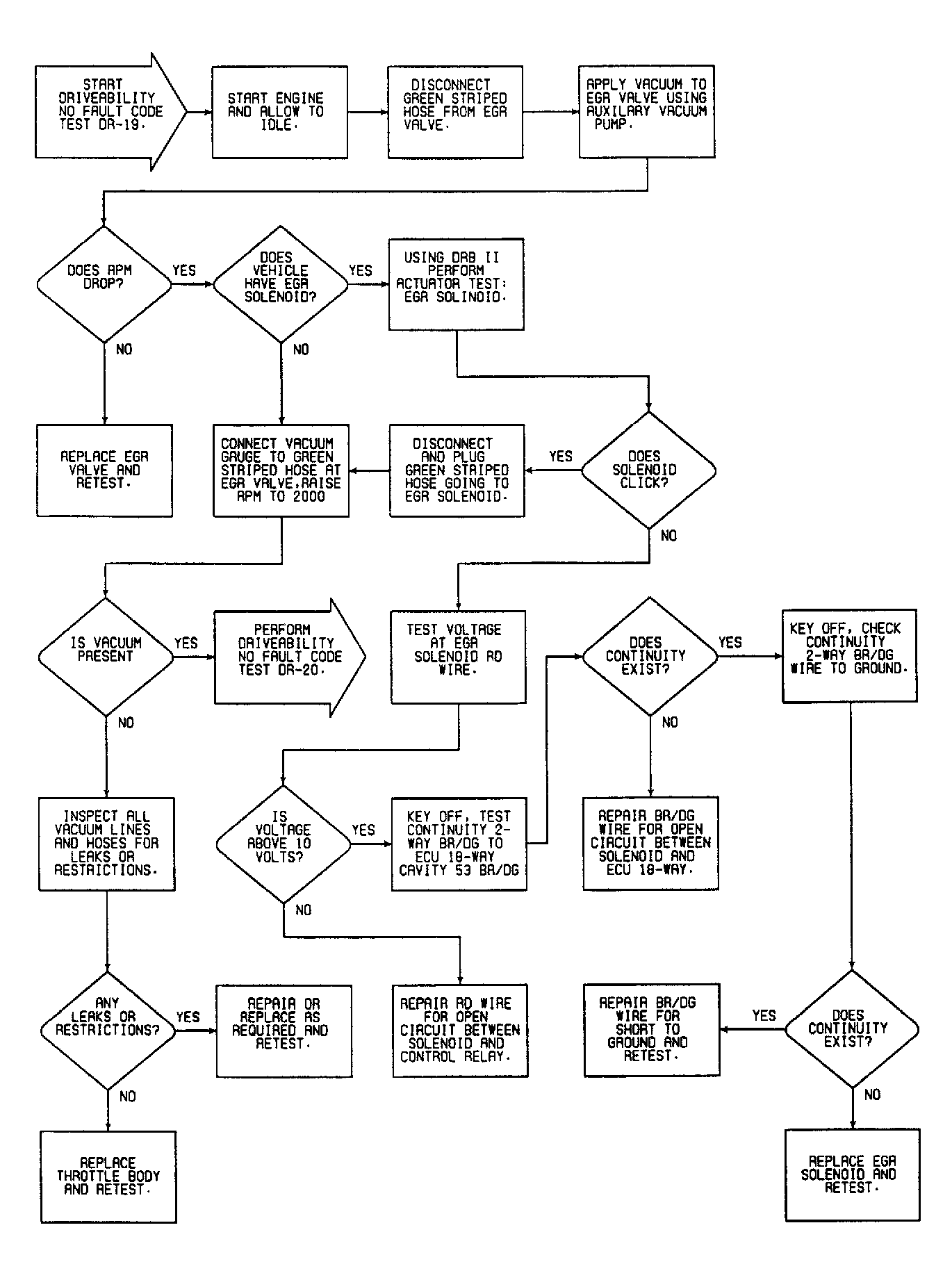

Fig 1: Test DR-19 Flow Chart - 2.4L No Fault Code Egr Control Test
