Dr-18: No Fault Code Fuel System Calibration Test
Dr-18: No Fault Code Fuel System Calibration Test

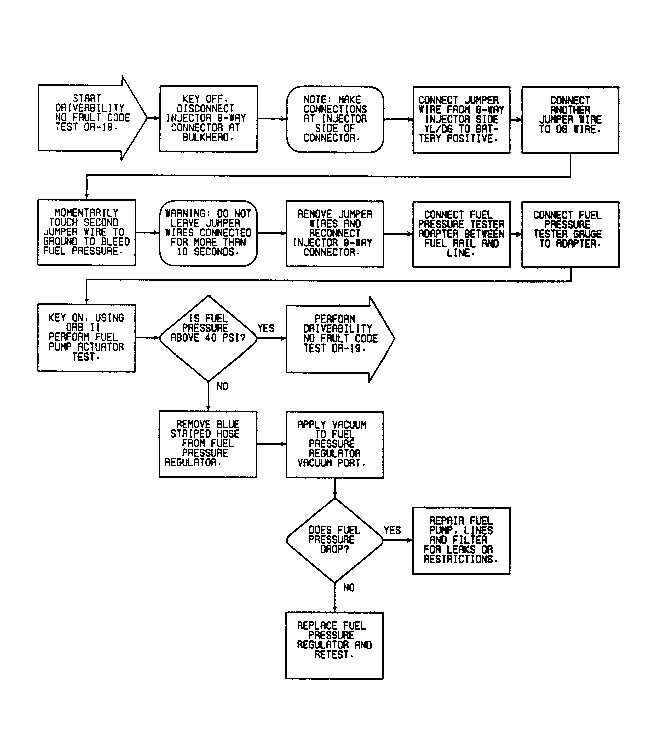

Fig 1: Test DR-18 Flow Chart - 2.4L No Fault Code Fuel System Calibration Test
