Dr-16: No Fault Code Tests

Fig 1: Test DR-16 Schematic - 2.4L (1 of 2) No Fault Codes
G90H19999
Fig 2: Test DR-16 Schematic - 2.4L (2 of 2) No Fault Codes
G90C20000

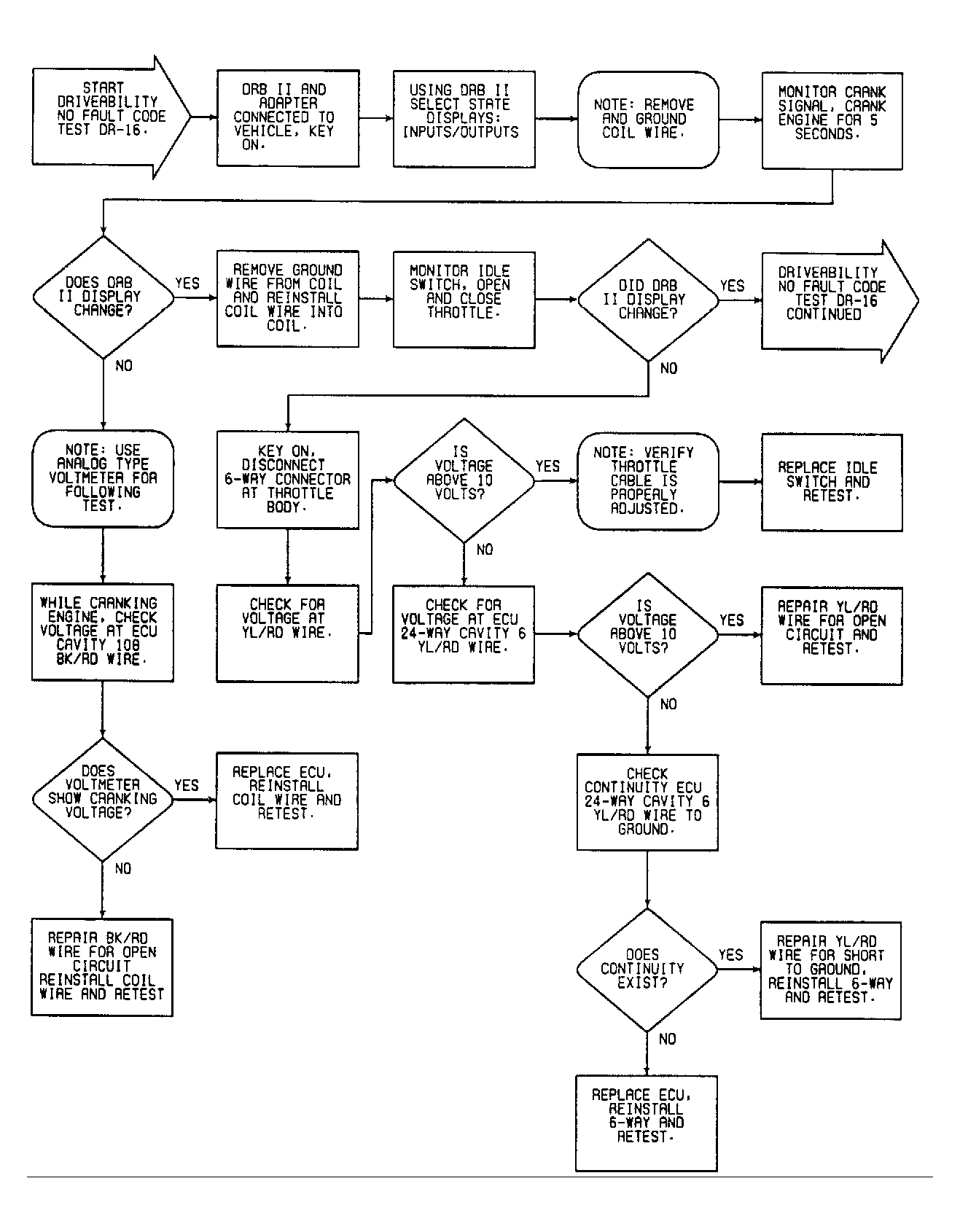

Fig 3: Test DR-16 Flow Chart - 2.4L (1 of 3) No Fault Codes
G90G20053

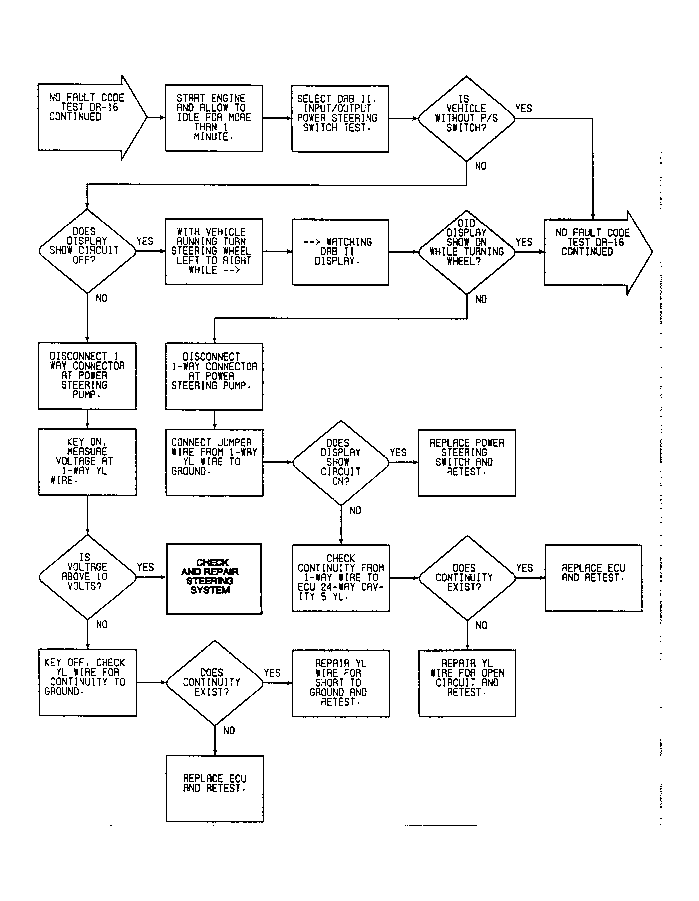

Fig 4: Test DR-16 Flow Chart - 2.4L (2 of 3) No Fault Codes
G90H20054

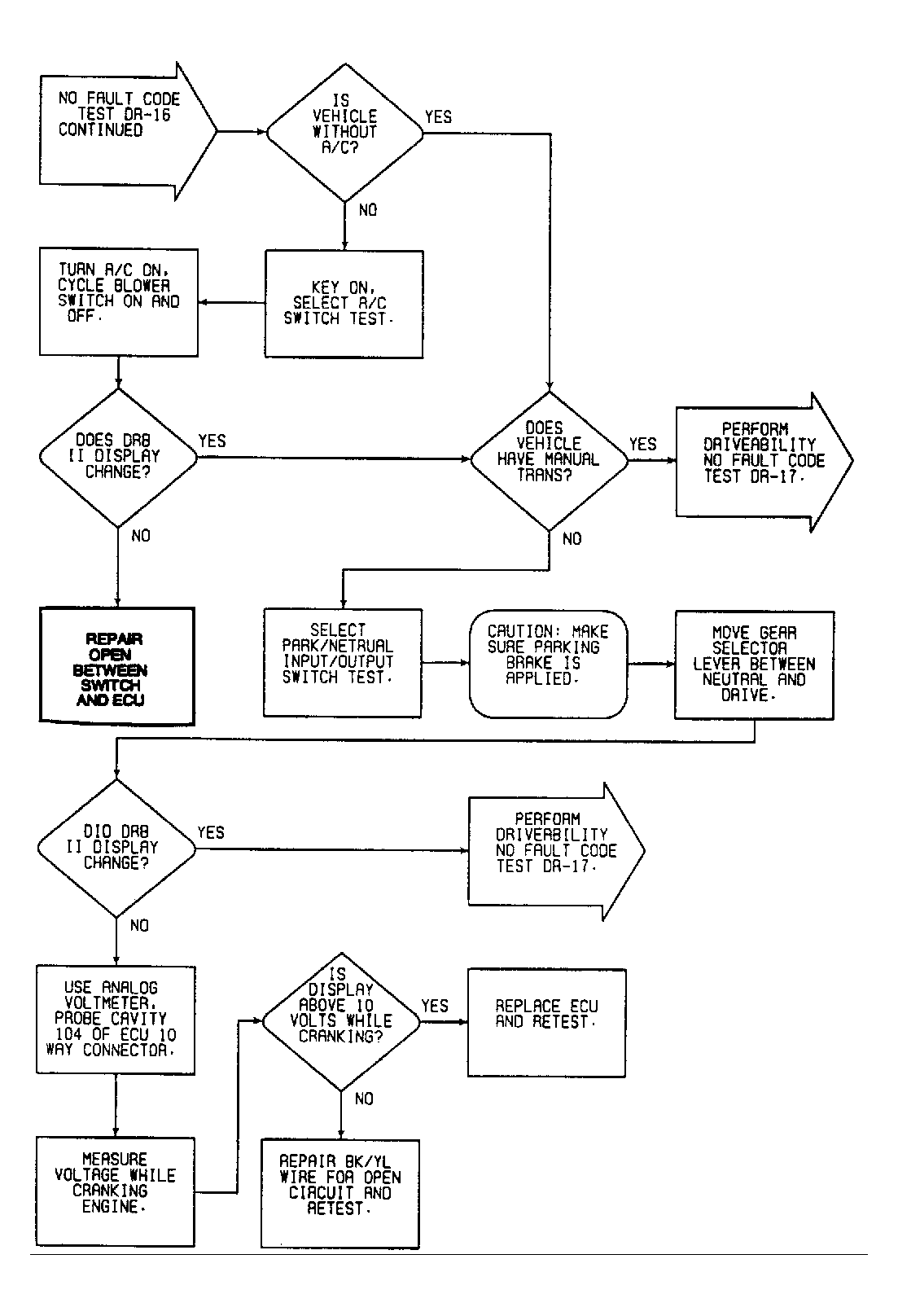

Fig 5: Test DR-16 Flow Chart - 2.4L (3 of 3) No Fault Codes
G90I20055
