Mitsubishi
>>
1992
>>
Montero Base, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Power Mirrors
>>
Component Testing
>>
Remote Control Mirror Assembly (Without Heated Mirrors)
Remote Control Mirror Assembly (Without Heated Mirrors)

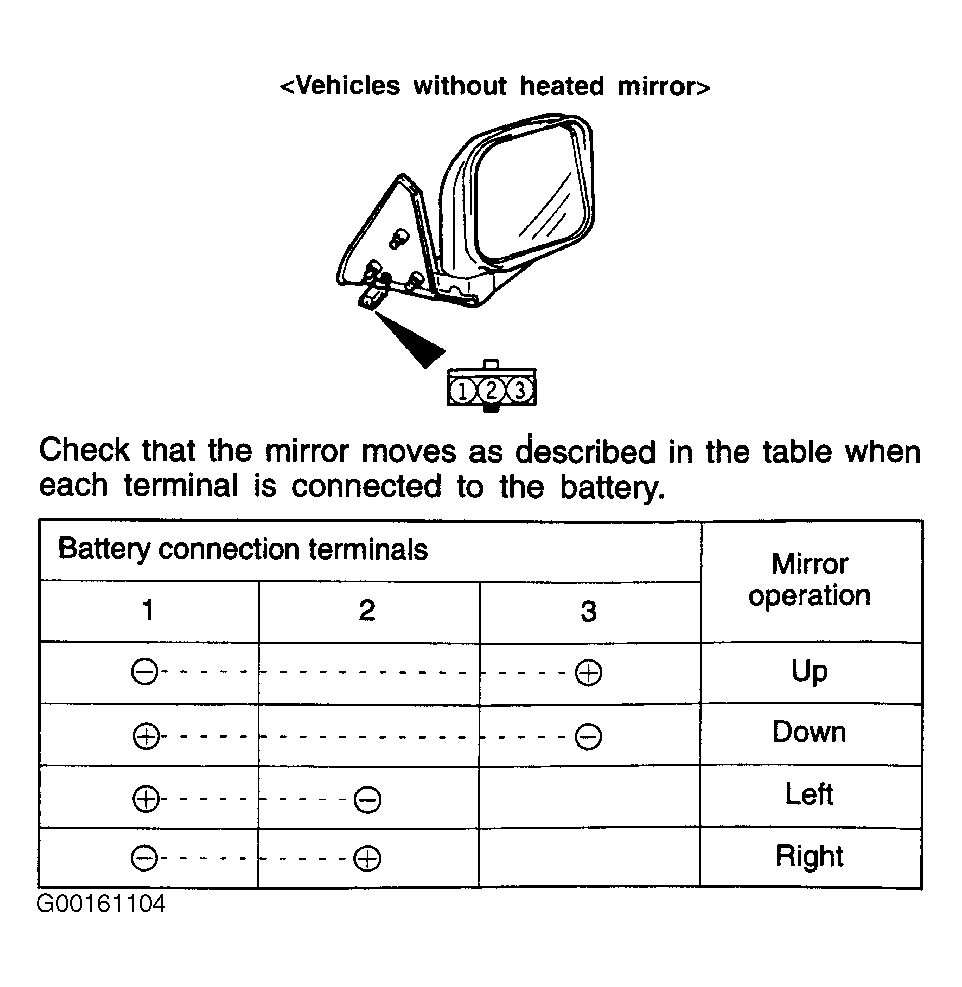

Fig 1: Testing Remote Controlled Mirror Assembly (Without Heated Mirrors)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
