Home >> Mitsubishi >> 1992 >> Montero Base, Automatic >> Repair and Diagnosis >> Body & Frame >> Power Door Locks >> Component Tests >> Latch Switch

Latch Switch

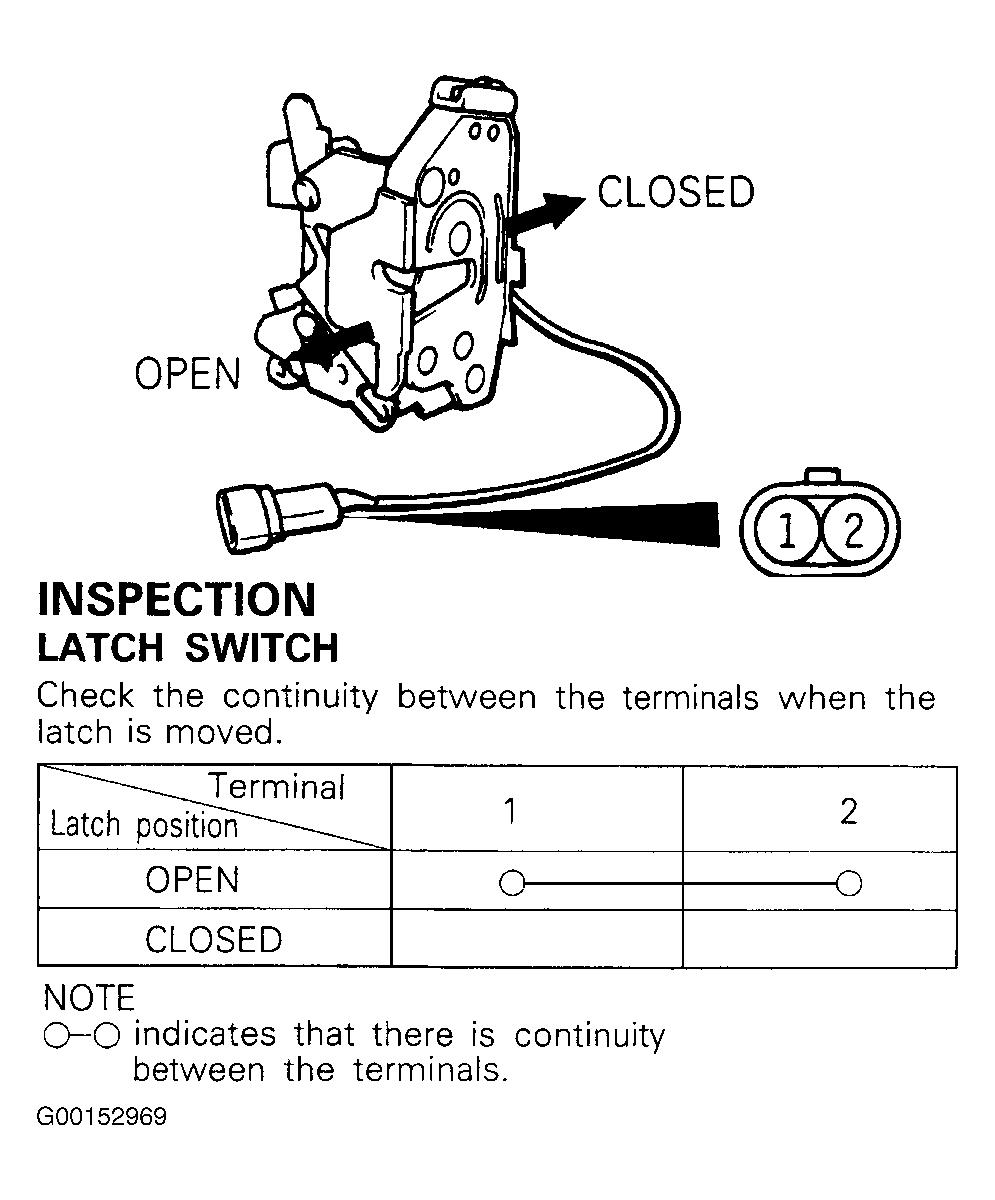

Fig 1: Testing Latch Switch

G00152969

Courtesy of MITSUBISHI MOTORS OF AMERICA, INC.
