Door Glass

Normally the door glass does not need to be adjusted. If there is anything wrong, adjust.

1. Remove the door trim and waterproof film. See FRONT DOOR TRIM & WATERPROOF FILM (HATCHBACK & SEDAN)  . Remove the mounting bolts of the window regulator assembly and elongate the mounting holes.
2. Temporarily mount the bolts, move the upper installation back and forth and adjust the tilted angle of the glass. See Fig 1 or Fig 2 .

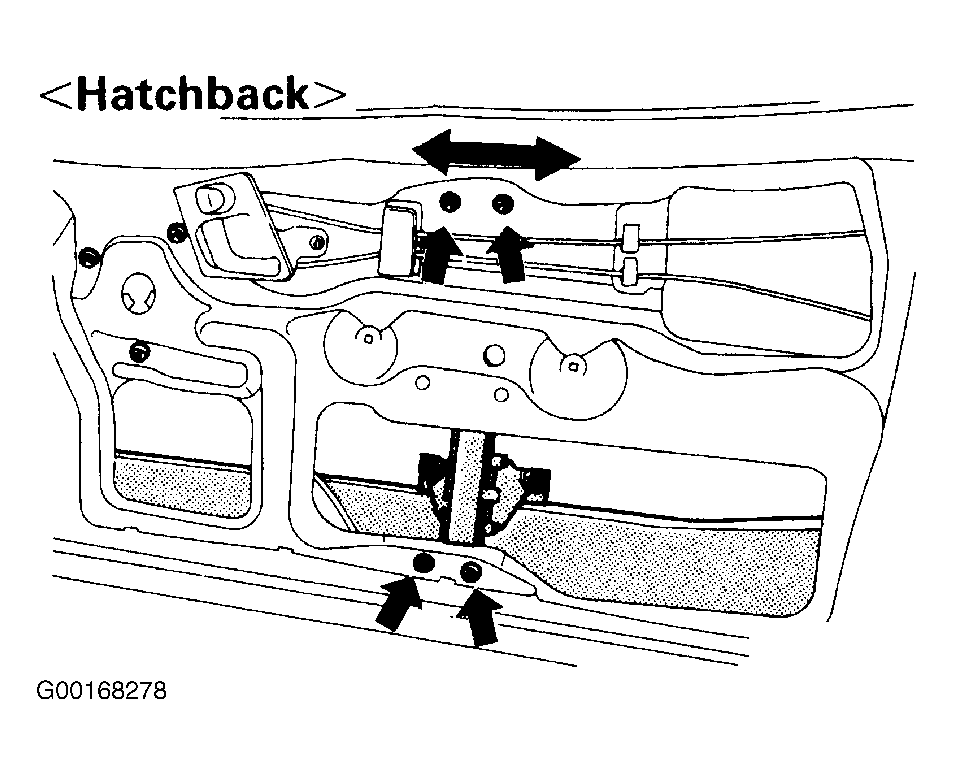

Fig 1: Adjusting Door Glass (Hatchback)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

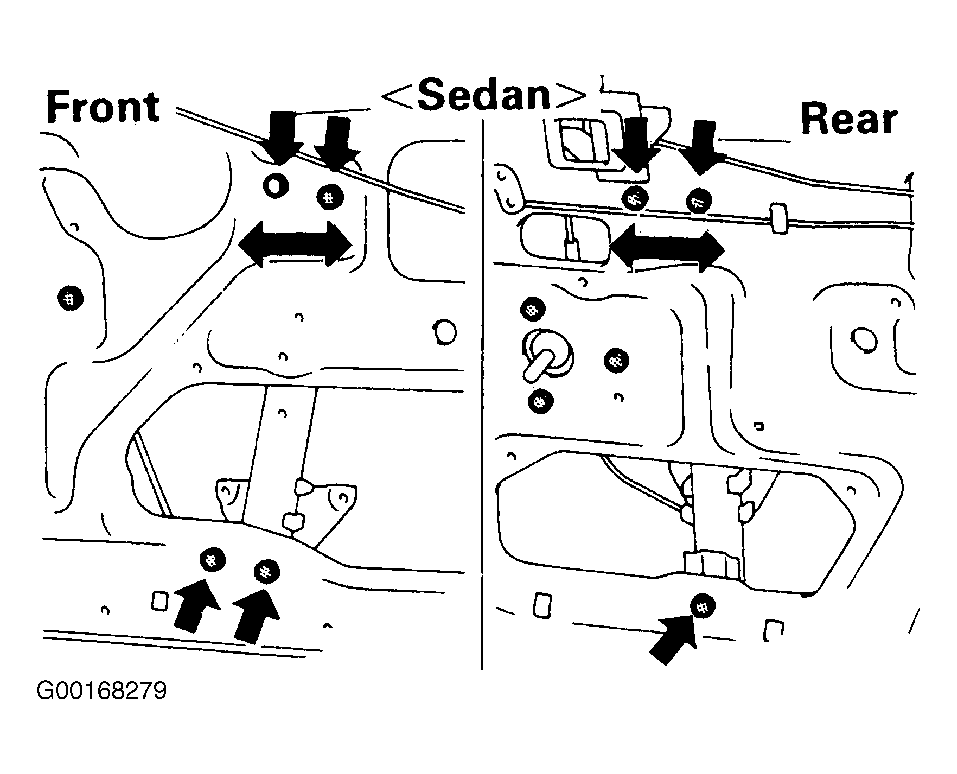

Fig 2: Adjusting Door Glass (Sedan)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
