Engine Controls - Tests W/Codes
>>
Code Charts
>>
NS-3A: Checking Fuel Pump
NS-3A: Checking Fuel Pump

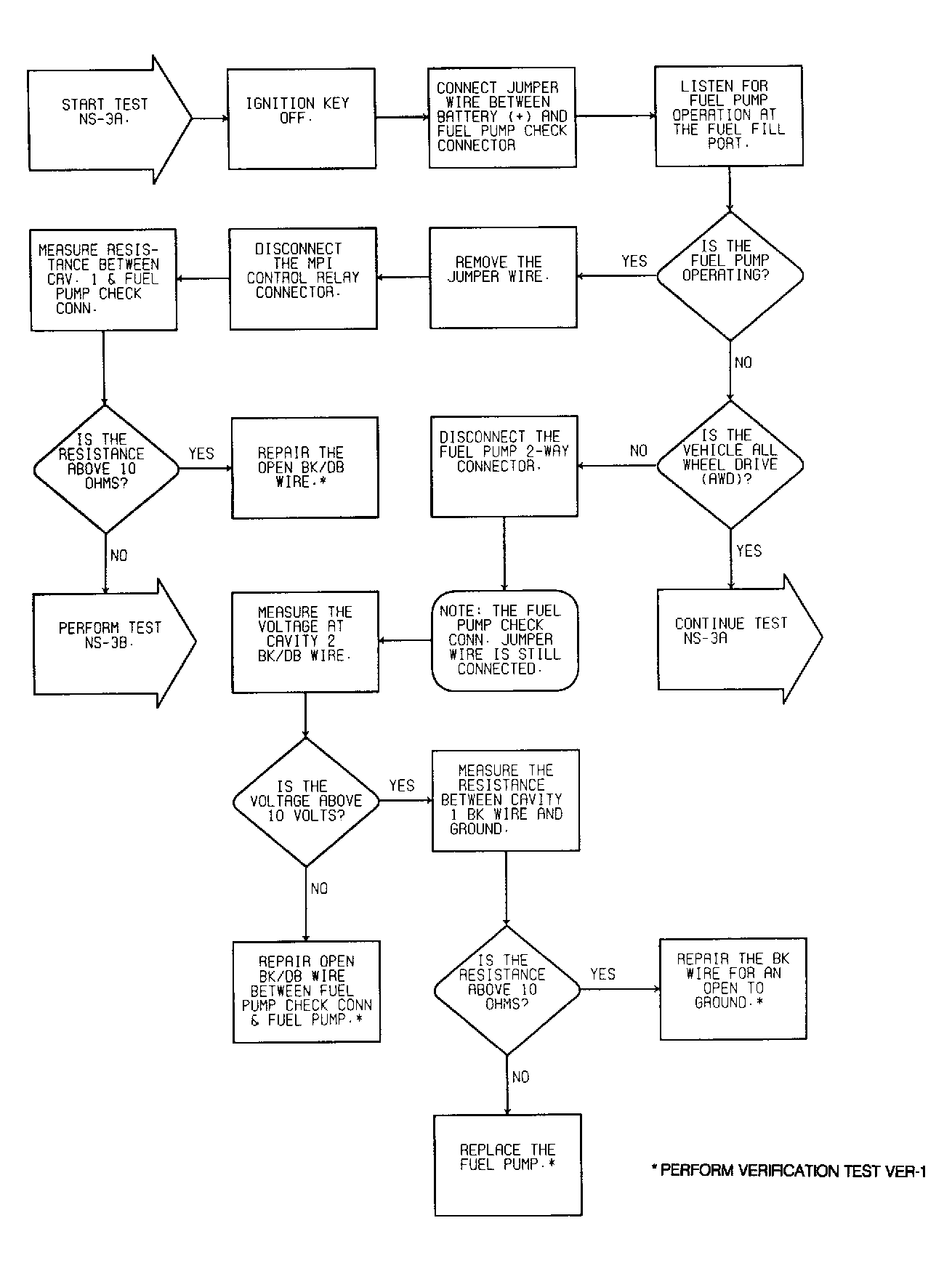

Fig 1: Test NS-3A Flow Chart (1 Of 2) Checking Fuel Pump

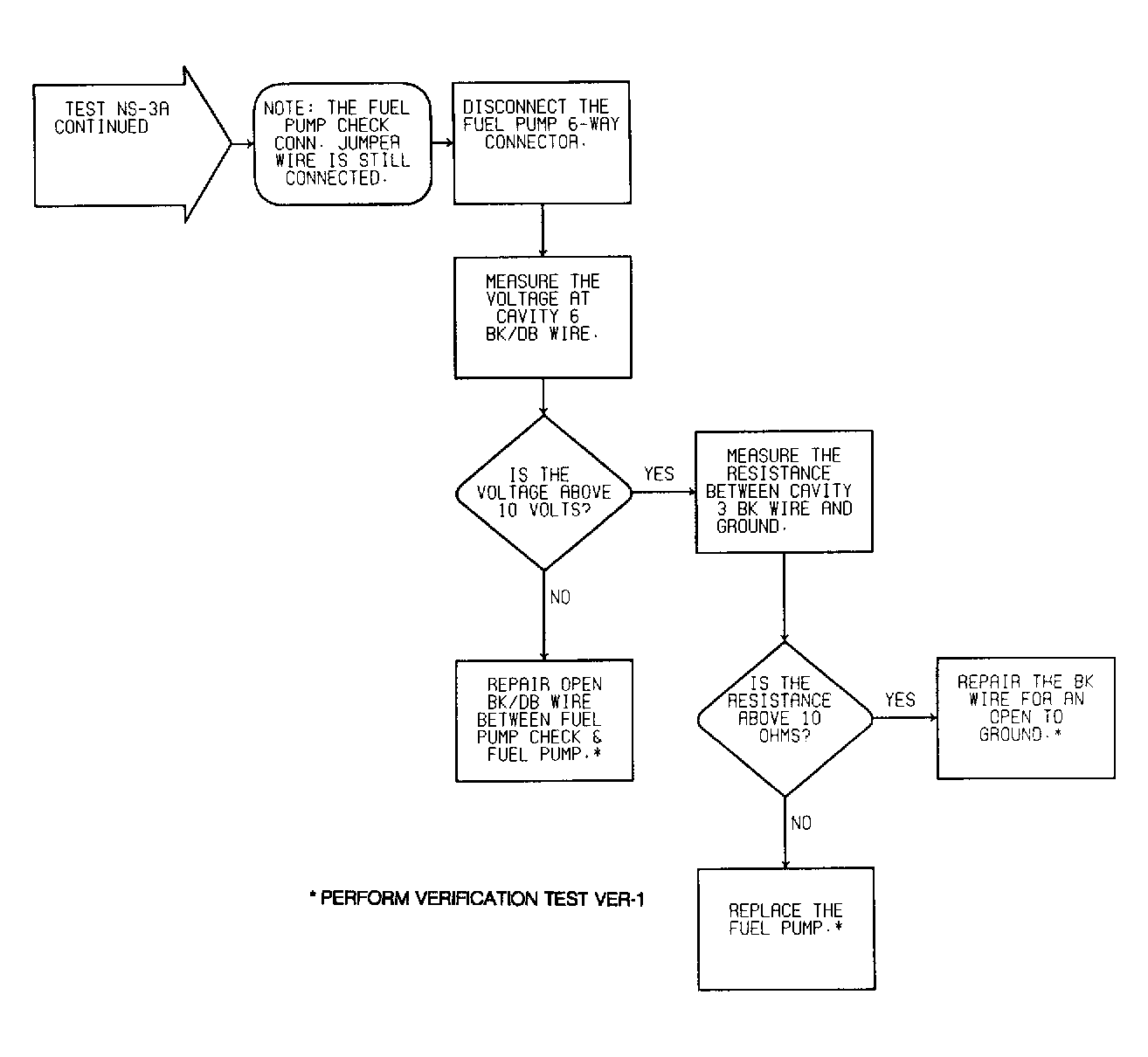

Fig 2: Test NS-3A Flow Chart (2 Of 2) Checking Fuel Pump
