Dr-8A: Code 23, Testing No. 1 Cylinder TDC Sensor

Fig 1: Test DR-8A Schematic - Code 23 Testing No. 1 Cylinder TDC Sensor

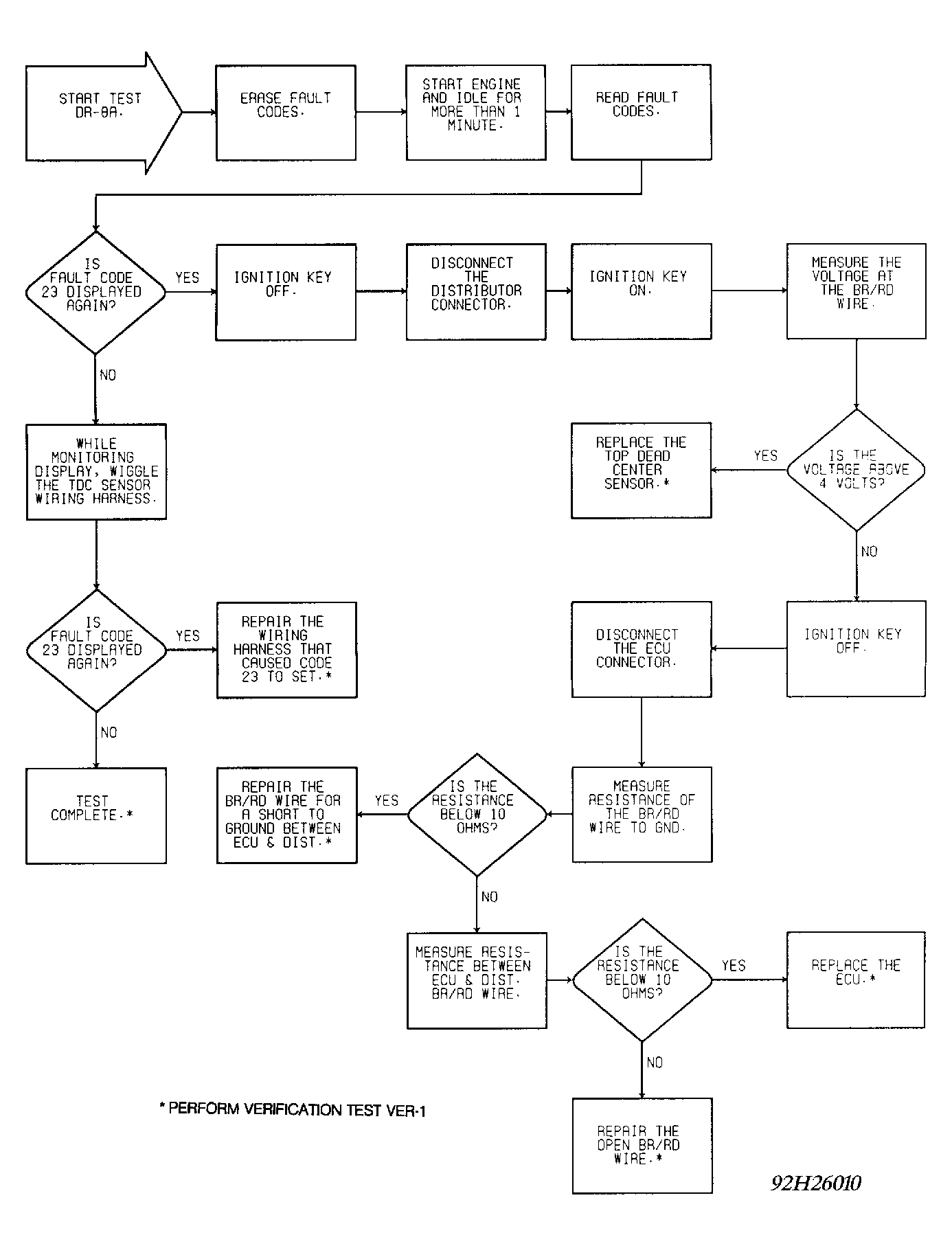

Fig 2: Test DR-8A Flow Chart - Code 23 (1 OF 2) Testing No. 1 Cylinder TDC Sensor

Fig 3: Test DR-8A Flow Chart - Code 23 (2 OF 2) Testing No. 1 Cylinder TDC Sensor
